CCI-19000-C

Name: CCI-19000-C - Internal Retaining Rings - 190x4x195 mm Circlips - Carbon Steel
Brand: MBA
SKU: CCI19000C
Price: 18.05 AUD
Availability: InStock

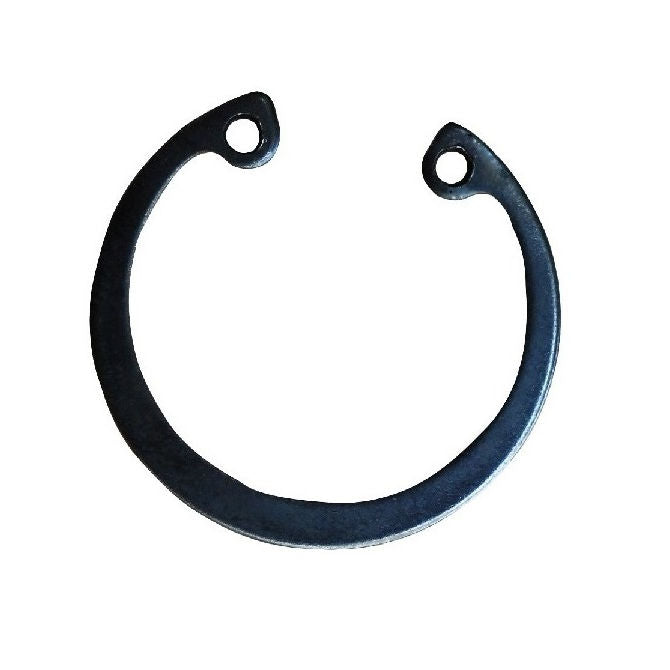

Internal Retaining Rings - 190x4x195 mm Circlips - Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$18.05 AUD

~~$34.06 AUD~~ $18.05 AUD

Each
Qty: 10 available now
Order 50 or more for $16.25 AUD Each

Product Details:

Additional stock available from USA subject to Prior Sale = 40

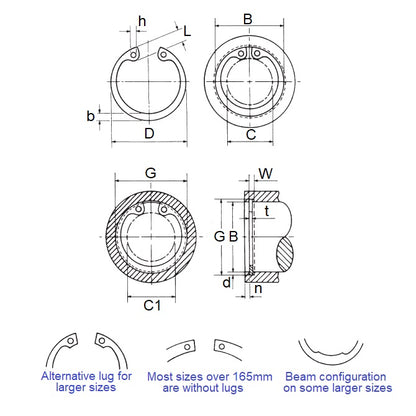

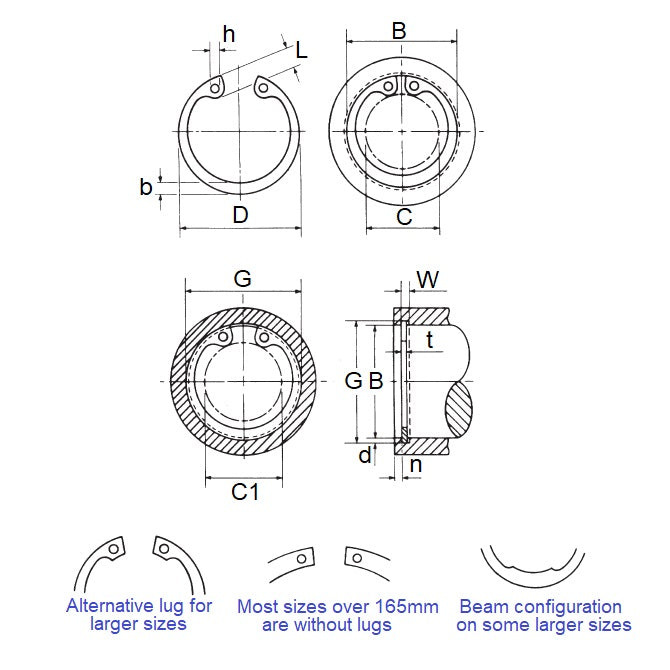

Housing Bore (B): 190.00mm
_{(190.00mm is 7.48 in.)}

Carbon Steel

Clip Thickness (T): 4.00mm
_{+ 0.72 / - 0.00}
_{(4.00mm is 0.157 in.)}
Groove Dia. (Dg): 195.00mm
_{+ 0.00 / - 0.10}
_{(195.00mm is 7.677 in.)}
Approx. Loose Circlip OD (Dr): 199.50mm
_{+ 1.70 / - 0.72}
Groove Width (W): 4.15mm
_{+ 0.20 / - 0.00}
Clearance in Bore (C): 160.20mm
Clearance in Groove (C1): 166.00mm
Min. Lug Diameter (h): 4.00mm
Min. Extension (n): 7.50
Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

Ellison 472-190
ALTPART 98455A768
Bossard BN-822-190
Waldes D1300-190
NoCor DHO-190
Rotor Clip DHO-190
Seeger J190
Seeger J-190
Seeger J190-WAS
Seeger J190X4
Seeger NZT.J190
D1300190
DHO190
BN822190
J190WAS
472190

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
