ECL-0161-0191-CZ-KR (PK-50)

Name: E-Clips Retaining Rings - 19.05x16.05x1.58 mm Klipring - Zinc Plated Carbon Steel E-Clip (Sold Per PK-50) - - ECL-0161-0191-CZ-KR
Brand: MBA
SKU: ECL01610191CZKR
Price: 70.32 AUD
Availability: BackOrder

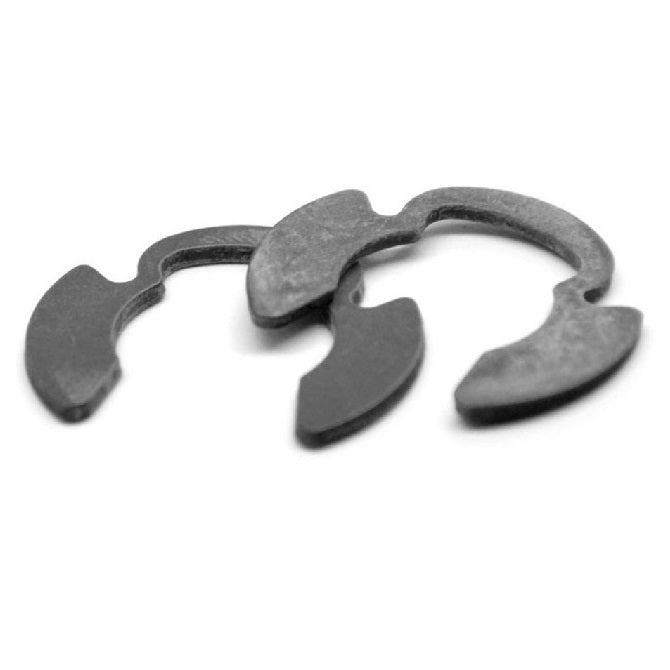

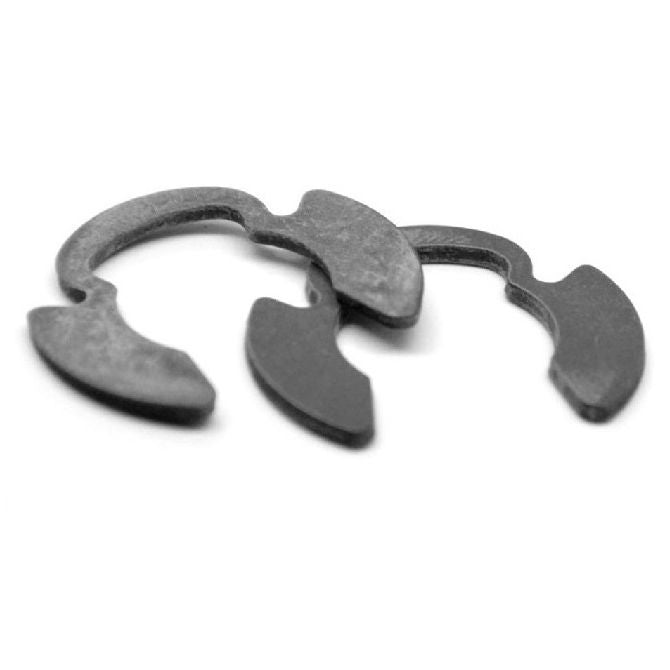

E-Clips Retaining Rings - 19.05x16.05x1.58 mm Klipring - Zinc Plated Carbon Steel E-Clip

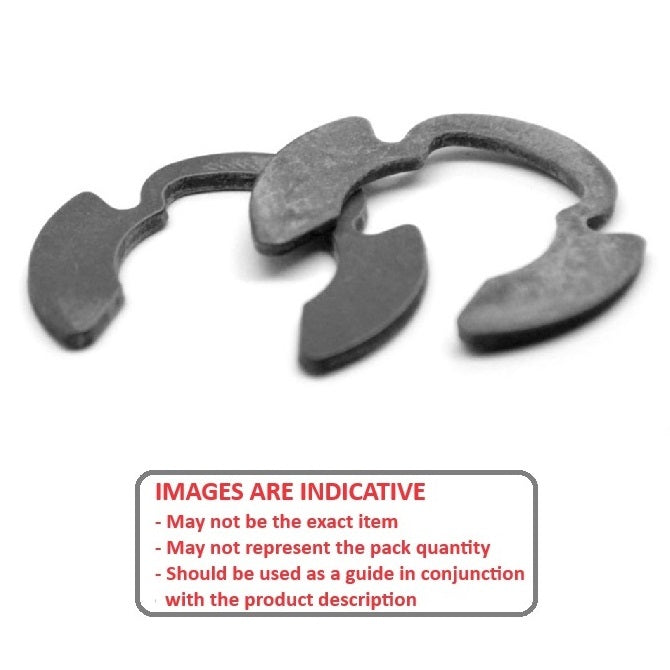

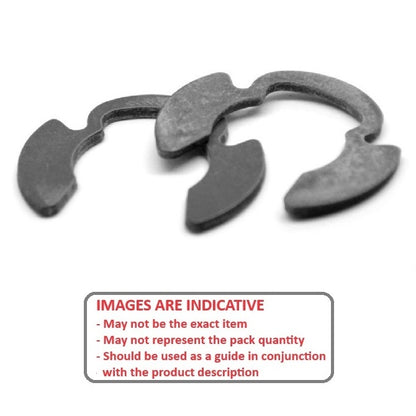

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - E-Clips - Klipring

Additional resources:
Assortment Kits

Price:

$70.32 AUD

~~$165.00 AUD~~ $70.32 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more pack (2500 pcs)
for $63.29 AUD per 50

Product Details

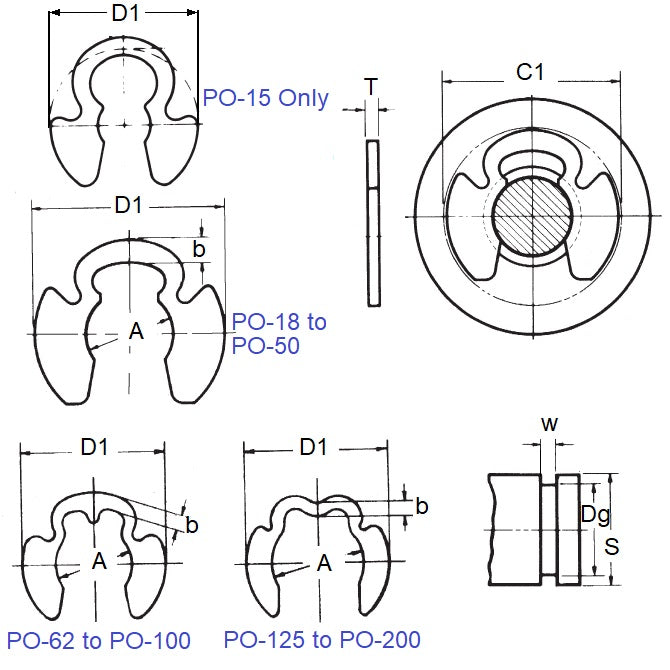

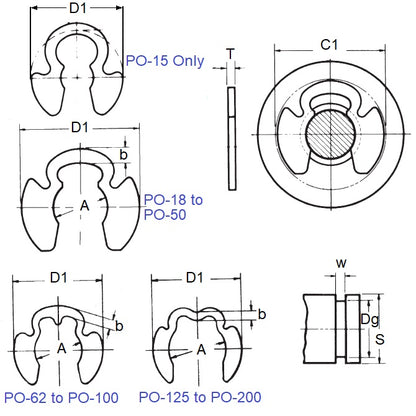

Minimum Rec. Shaft Dia (S): 19.05mm
_{+ 3.05 / - 0.00}
_{(19.05mm is 0.75 in.)}

Zinc Plated Carbon Steel

Minimum Rec. Shaft Dia (S): 19.05mm
_{+ 3.05 / - 0.00}
_{(19.05mm is 0.75 in.)}
Groove Dia. (Dg): 16.05mm
_{+/- 0.252}
_{(16.05mm is 0.632 in.)}
Clip Thickness (T): 1.58mm
_{+/- 0.076}
_{(1.58mm is 0.062 in.)}
Clip OD Loose (D1): 15.09mm
Groove Width (W): 1.73mm
Maximum Rec. Shaft Dia (S): 22.10
Clip OD in groove (C1): 29.72mm
Min. Extension (n): 3.00

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Waldes® 5304-075-ZD
Huyett® PO-075-ZD
NoCor® PO-075-ZD
Rotor Clip® PO-075-ZD
PO075ZD
5304075ZD

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
