ECB-0159-0191-C (PK-25)

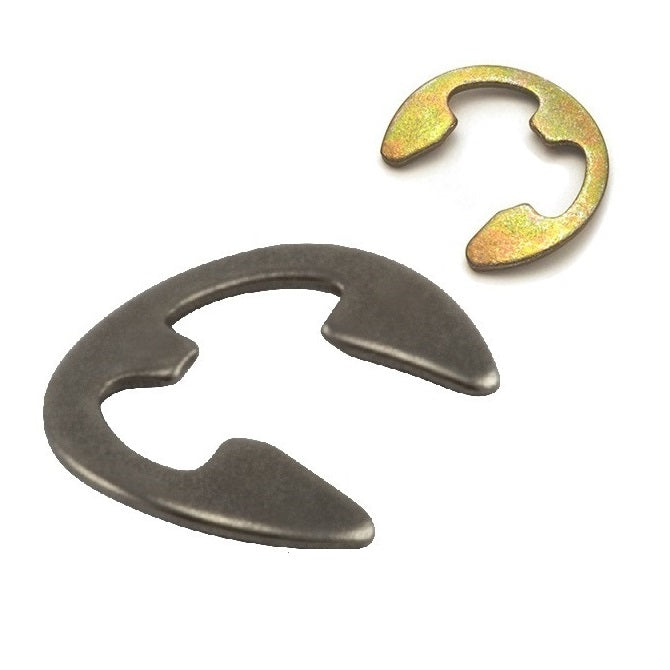

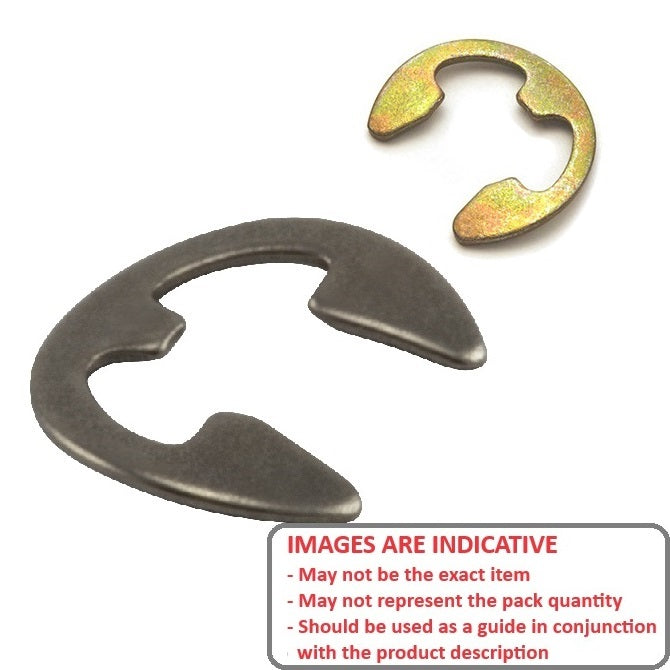

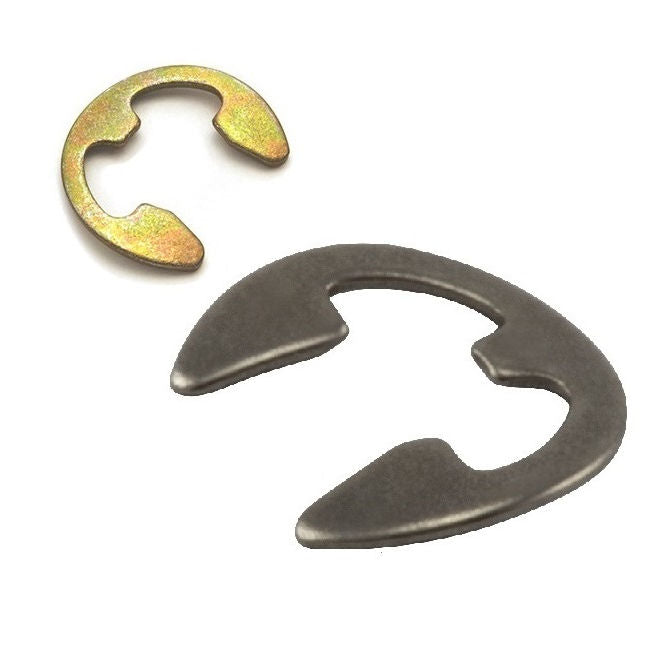

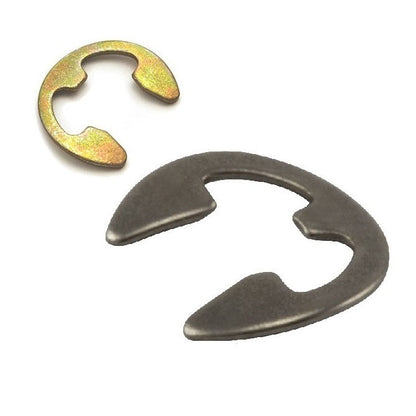

E-Clips Retaining Rings - 19.05x15.88x1.27 mm Bowed - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Order 50 or more packs of 25 (1250 pcs)
for $20.91 AUD per 25 pack
3/4x5/8 inch E-Clip - 19.05x15.88x1.27 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 25:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Bowed
Product Details

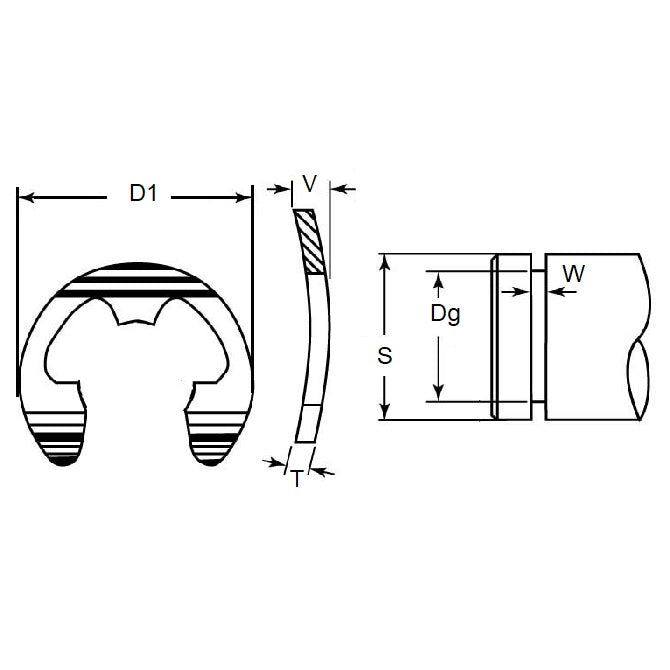

Minimum Rec. Shaft Dia (S): 19.05mm(19.05mm is 0.75 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 19.05mm
(19.05mm is 0.75 in.)
- Groove Dia. (Dg): 15.88mm
+ 0.076 / - 0.000
(15.88mm is 0.625 in.)
- Clip Thickness (T): 1.27mm
+/- 0.051
(1.27mm is 0.05 in.)
- Clip OD Loose (D1): 25.40mm
- Groove Width (W): 1.45mm
- Ring Width (X): 2.16mm
- Force Required to Flatten: 49.1kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98398A153
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECB01590191C, ECB0159
