CLP-191-1210-S6

Clevis Pins - 19.05x121.04x127 mm Pin Locking - Stainless Steel 316 Similar to A4, 18-10

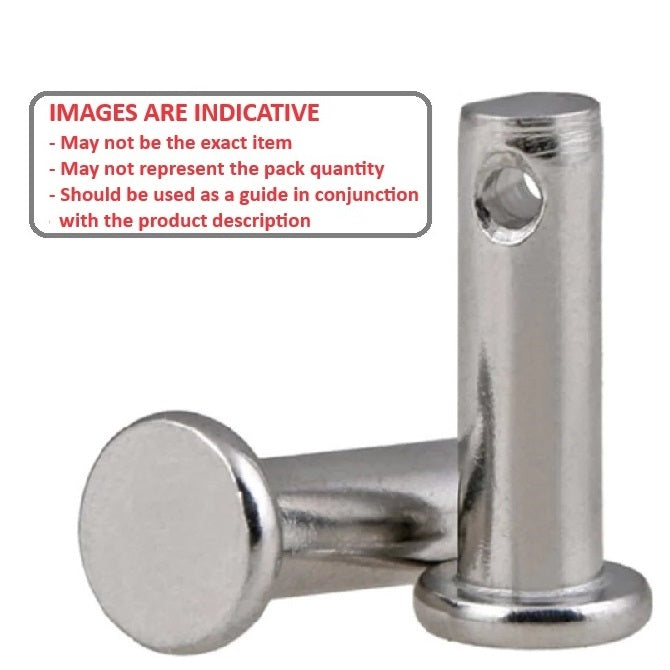

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Clevis Pins - 19.05x121.04x127 mm - Stainless Steel 316 Similar to A4, 18-10
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
R-Clips
Split Pins
Price:
$63.86 AUD
$76.64 AUD $63.86 AUD
Each
Backorder
Order 50 or more for $57.47 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Sep 23, 2025

Base Category: Pins - Clevis

Top Level Category: Pins - Clevis - Pin Locking - Stainless Steel 316

Product Details


Additional stock available from USA subject to Prior Sale = 162

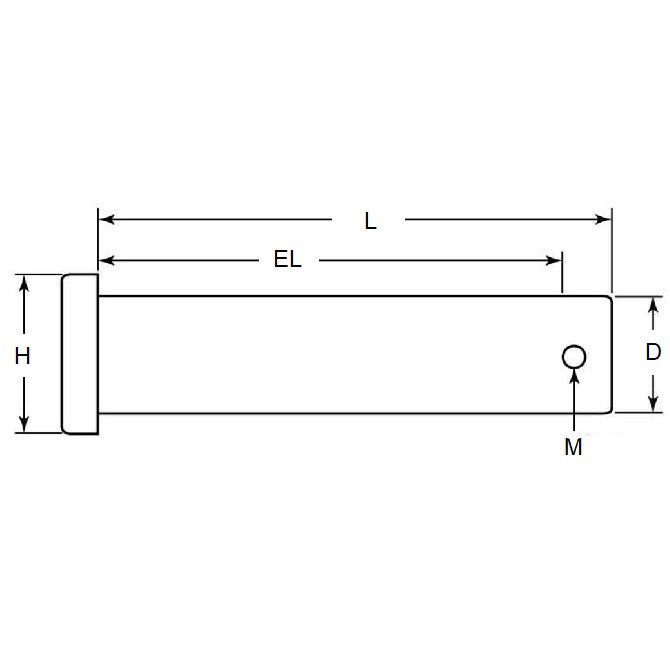

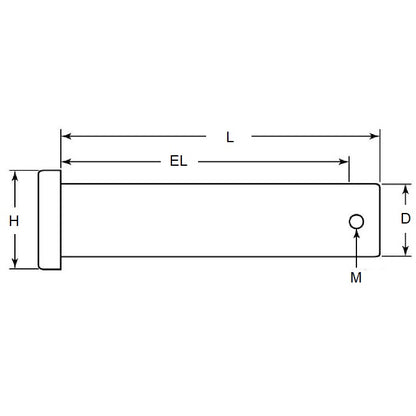

Nominal Pin Diameter (D): 19.05mm
- 0.10 / - 0.28
(19.05mm is 0.75 in.)

Stainless Steel 316 (Similar to A4, 18-10)
  • Nominal Pin Diameter (D): 19.05mm
    - 0.10 / - 0.28
    (19.05mm is 0.75 in.)
  • Grip Length (EL): 121.04mm
    + 0.51 / - 0.00
    (121.04mm is 4.765 in.)
  • Nom. Length (L): 127.00mm
    + 0.51 / - 0.00
    (127.00mm is 5 in.)
  • Ret. Pin Dia. (M): 3.8mm
  • Suitable R-Clip: RCL-038-075-S4 304 Stainless Only

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor CLPS6-0750-5000
  • CLPS607505000

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
