MB2-0019-127

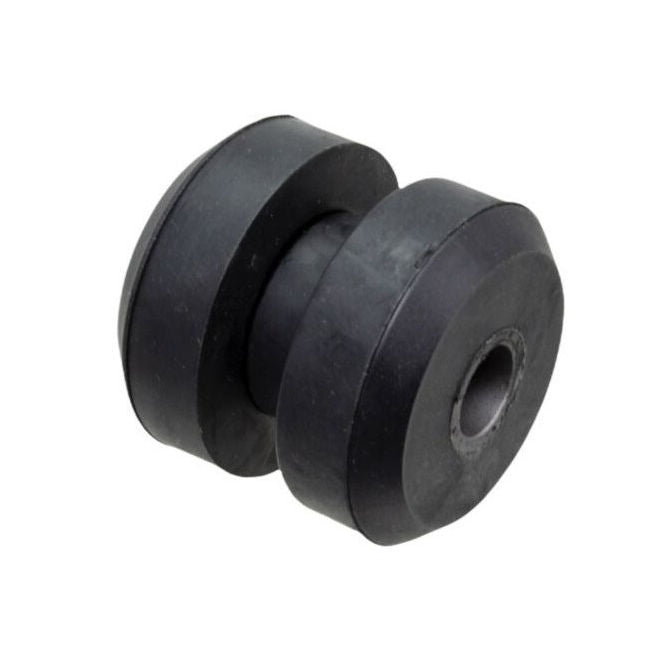

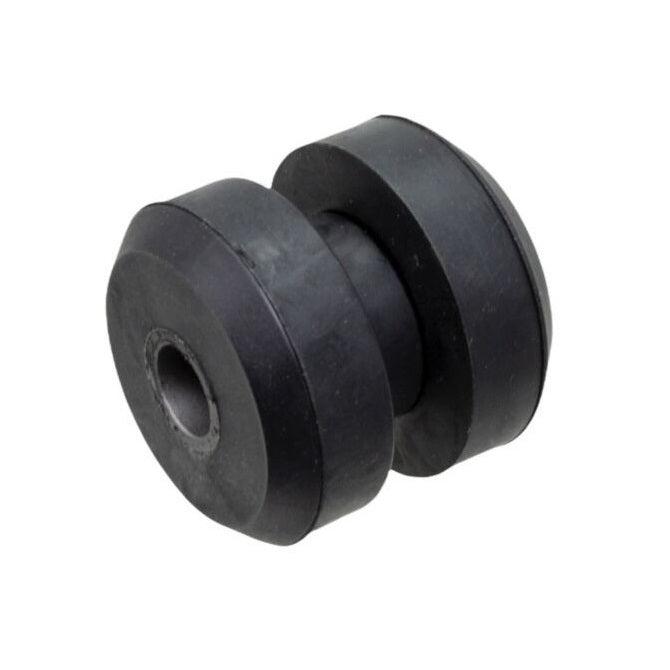

Bonded Mounts - 127 Kg - 16.7x64.8 mm Tee Bush Two Piece - Rubber Mount

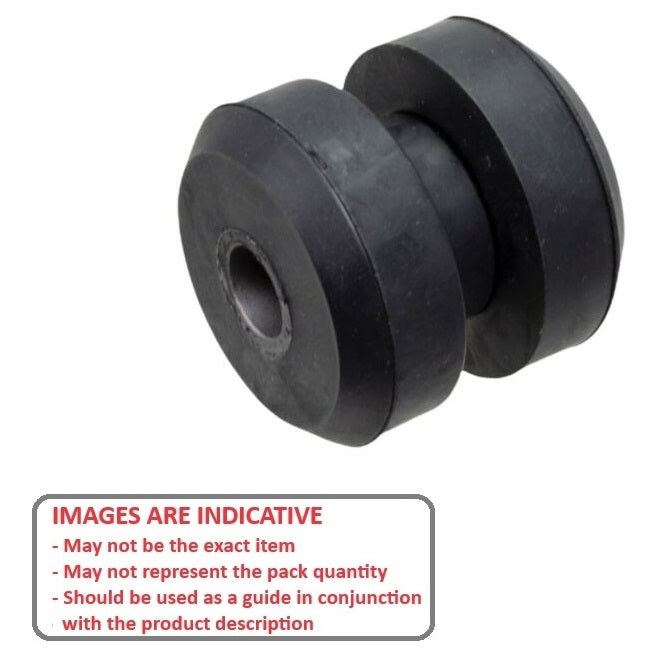

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Bonded Mounts - 127 Kg - 16.7x64.8 mm - Rubber
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
Price:
$63.14 AUD
$75.76 AUD $63.14 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $56.83 AUD
Backorder now! Backorders for more than the stock quantity are expected before Oct 16, 2025

Base Category: Mounts - Bonded

Top Level Category: Mounts - Bonded - Tee Bush Two Piece

Product Details

Nominal Load rating: 127Kg

Rubber
  • Nominal Load rating: 127Kg
  • Bolt Hole Dia: 16.7mm
    (16.7mm is 0.657 in.)

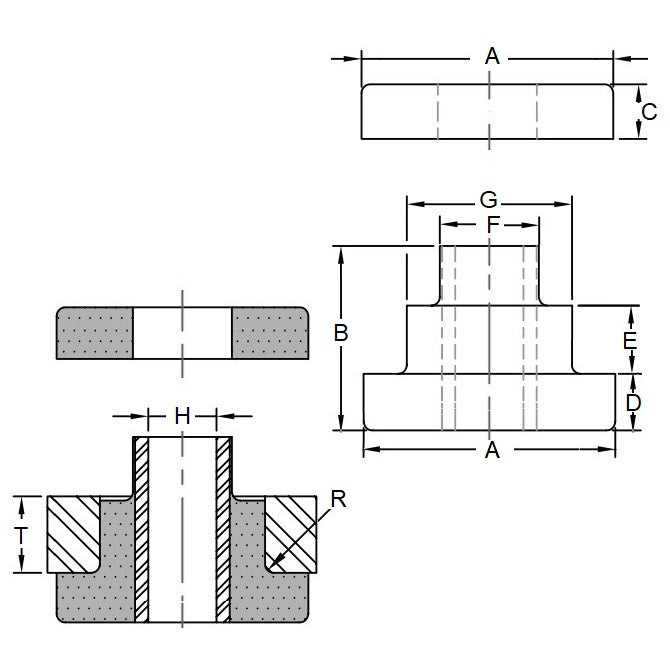

  • Flange Dia (A): 64.8mm
    (64.8mm is 2.551 in.)
  • Main Flange Width (D): 22.9mm
  • Support Flange Width (C): 22.9mm
  • Main Part Length (B): 62.2mm
  • Shoulder Length (E): 19.05mm
  • Insert Dia. (F): 24.6mm
  • Shoulder Dia. (G): 40.1mm
  • R: 2.3mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 9309K36
  • VM-190-4
  • VM1904

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
