P-030G-018-090FH-AL-E-064

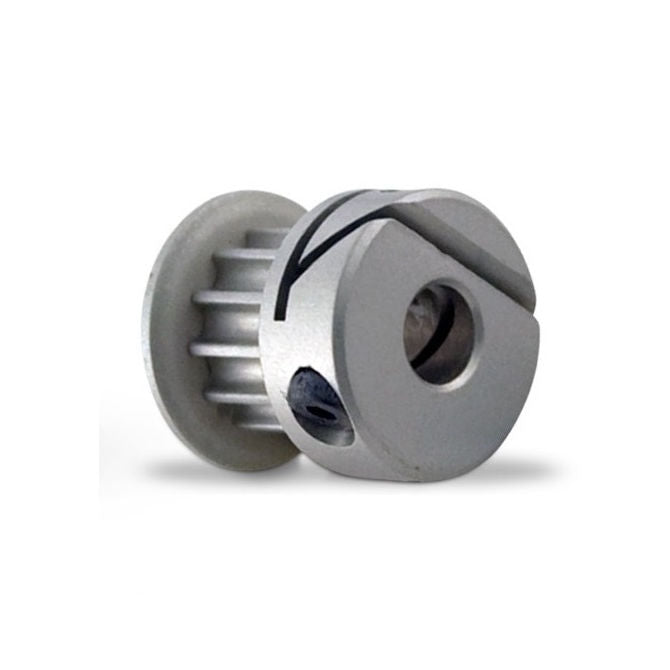

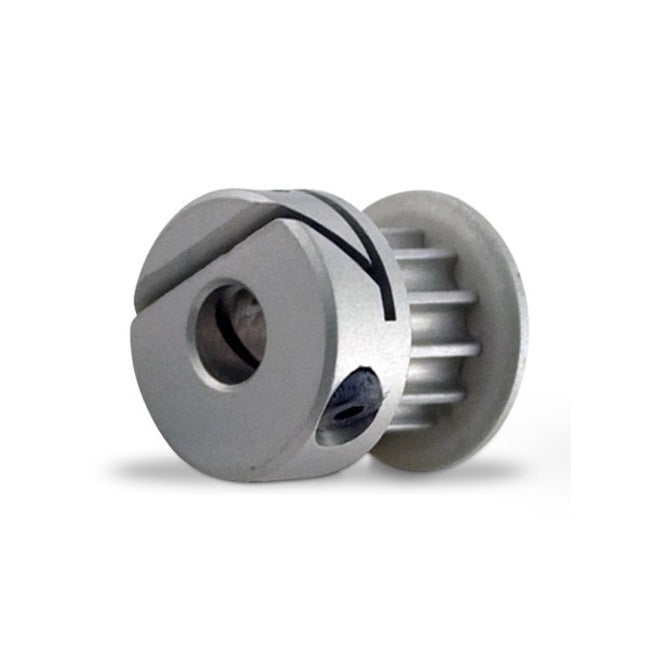

Metric Timing Pulleys - 18 tooth - 9x6.35 mm 3mm Pitch - Aluminium Pulley

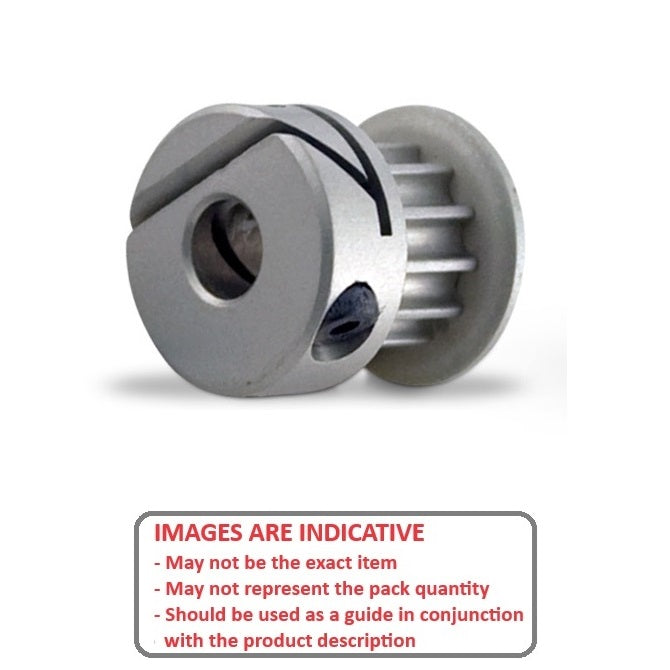

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$48.32 AUD
$57.98 AUD $48.32 AUD
Each
Backorder
Order 50 or more for $43.49 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Oct 16, 2025

Base Category: Pulleys - Metric Timing

Top Level Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - EZ-Lock

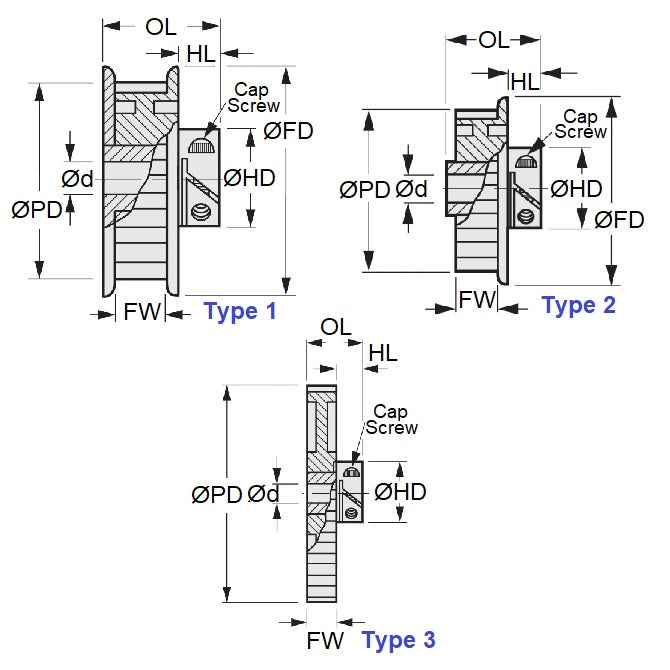

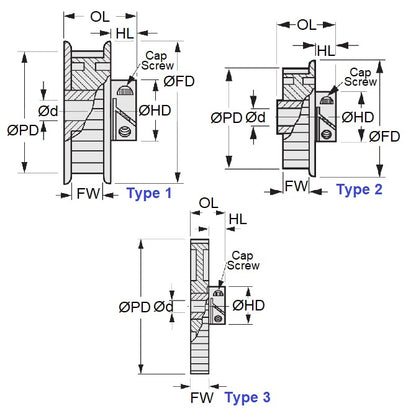

Product Details

Number of Teeth: 18

Aluminium
  • Max Belt Width: 9.00mm
    (9.00mm is 0.354 in.)
  • Bore (d): 6.350mm
    (6.350mm is 0.25 in.)
  • Bore Type: Finished
  • Locking Type: EZ-Lock Hub
  • Type: 1
  • Pitch Dia. (PD): 17.18mm
  • Flange Diameter (FD): 20.7mm
  • Overall Length: 20.6mm
  • Hub Diameter (HD): 19.5

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Gates 18-3P09-IA3
  • 183P09IA3
  • A6D53-018DF0908
  • A6D53018DF0908

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
