P-XL-018-200C (Each)

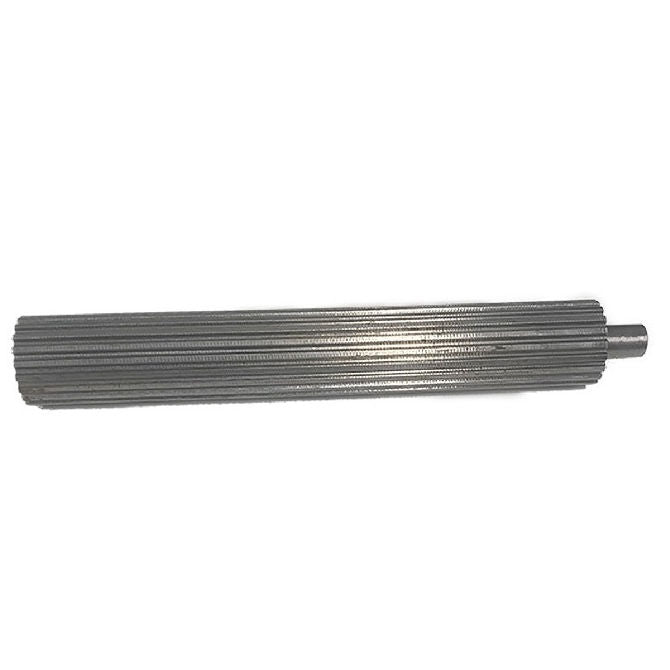

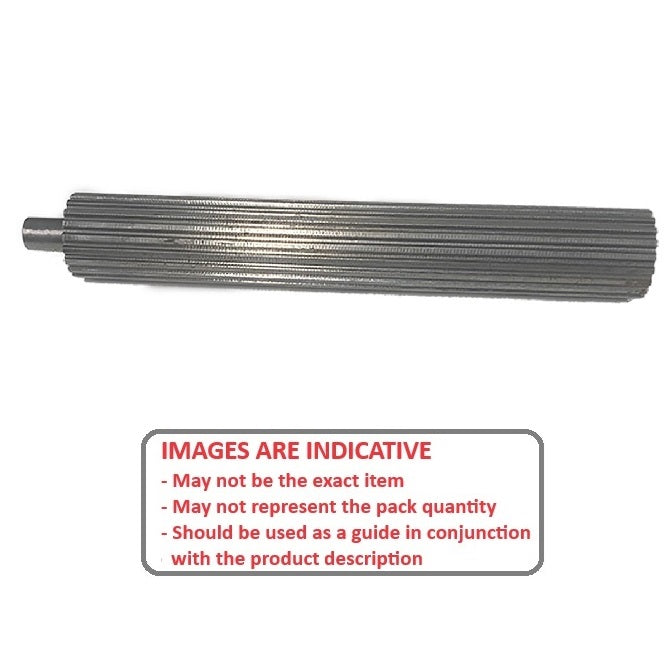

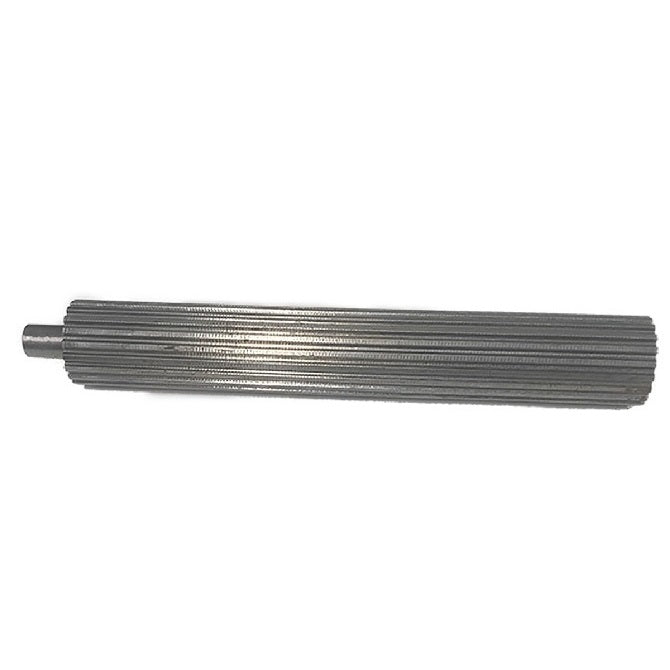

Inch Timing Stock Pulleys - 18 tooth - 200x29.09 mm 5.080mm Pitch XL - Carbon Steel Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Pulleys Catalogue PDF
Pulley Flanges
XL Timing Belts
Order 50 or more
for $141.67 AUD Each
18 tooth - 200x29.09 mm Inch Timing Stock Pulleys - Carbon Steel - Sold per Each:
Base Category: Pulleys - Inch Timing Stock
Top Level Category: Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel
Product Details
Number of Teeth: 18Carbon Steel

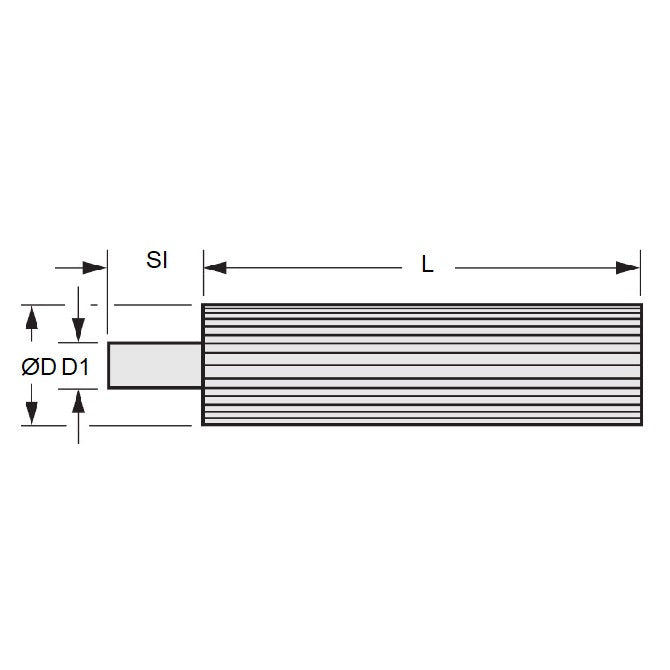

- Number of Teeth: 18
- Min. Usable Length (L): 200.0mm
(200.0mm is 7.874 in.)
- Pitch Diameter (PD): 29.09mm
(29.09mm is 1.145 in.)
- Outside Diameter (OD): 28.60mm
- Shank Diameter (D1): 12.70mm
- Shank Length (Sl): 19.1mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Gates® 18XL-PS8S
- 18XLPS8S
- A6C2M18XL20
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PXL018200C, PXL018
