CCI-18500-C (PK-13)

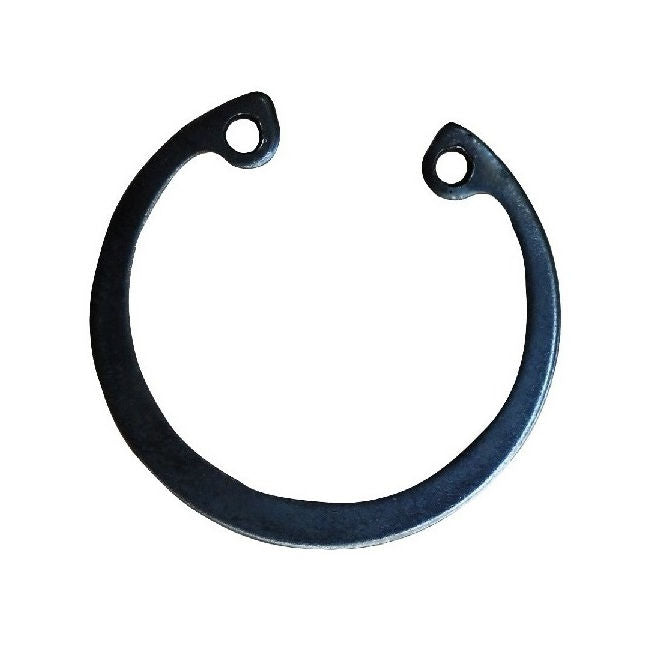

7x5/32x7 inch Circlip - 185x4x190 mm Internal Retaining Rings - Carbon Steel - Sold per pack of 13:

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

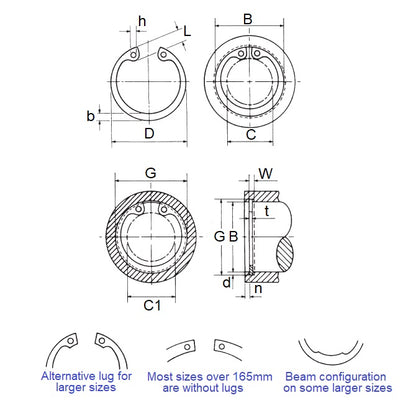

Product Details

• Housing Bore (B): 185.00mm
  _{(185.00mm is 7.283 in.)}

• Clip Thickness (T): 4.00mm
  _{+ 0.00 / - 0.10
  (4.00mm is 0.157 in.)}

• Groove Dia. (Dg): 190.00mm
  _{+ 0.72 / - 0.00
  (190.00mm is 7.48 in.)}

• Approx. Loose Circlip OD (Dr): 194.50mm
  _{+ 1.70 / - 0.72}

• Groove Width (W): 4.15mm
  _{+ 0.20 / - 0.00}

• Clearance in Bore (C): 155.20mm
• Clearance in Groove (C1): 161.00mm
• Min. Lug Diameter (h): 4.00mm
• Min. Extension (n): 7.50
• Standard: DIN472

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Ellison® 472-185
• Bossard® BN-822-185
• Waldes® D1300-185
• Huyett® DHO-185
• NoCor® DHO-185
• Rotor Clip® DHO-185
• Seeger® J-185
• Seeger® J185-WAS
• Seeger® J185X4
• BN822185
• J185WAS
• D1300185
• DHO185
• 472185
