RPO-189-192-C (PK-5)

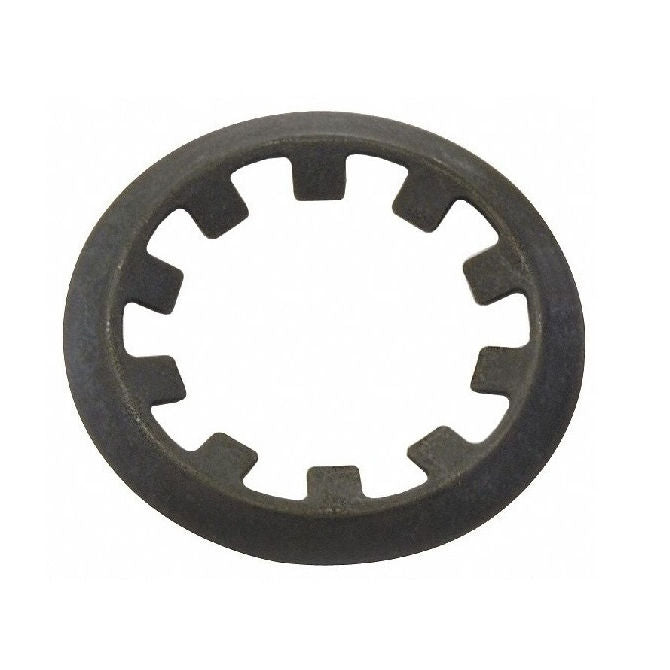

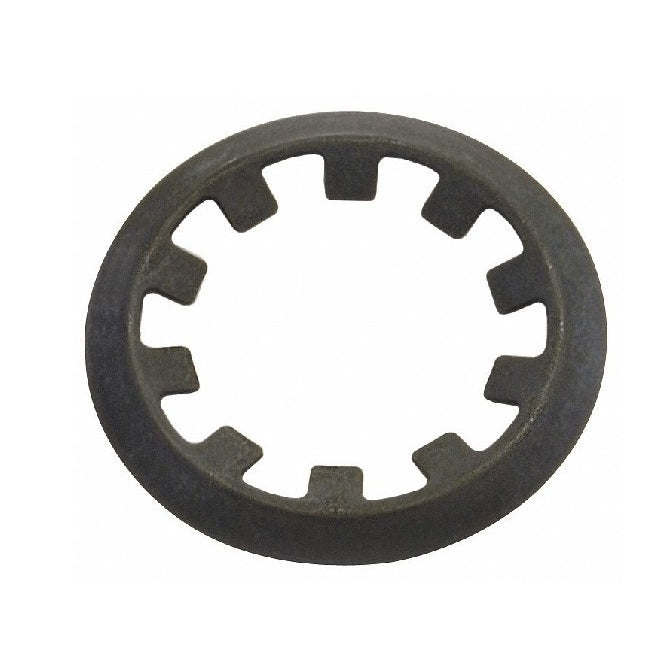

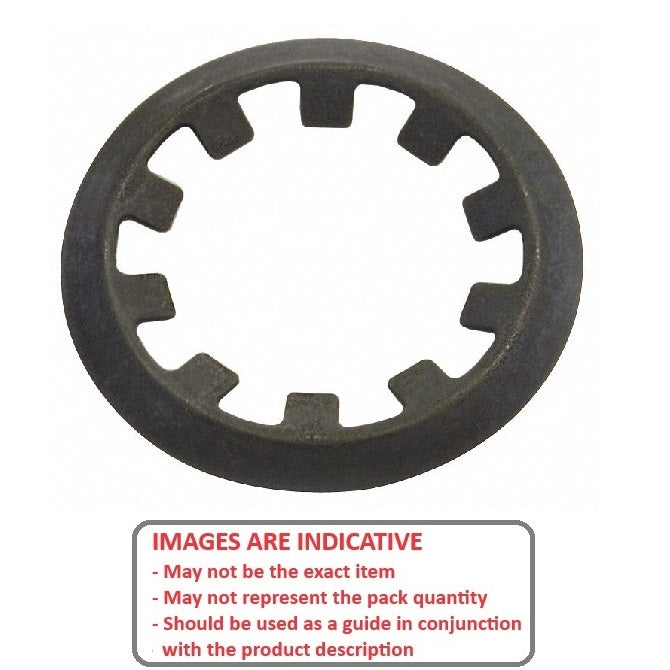

Push On Retaining Rings - 18.92x19.18x27.33 mm - Carbon Steel Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 5 (250 pcs)
for $2.01 AUD per 5 pack
Couldn't load pickup availability
3/4x3/4x1 inch Ring - 18.92x19.18x27.33 mm Push On Retaining Rings - Carbon Steel - Sold per pack of 5:
Base Category: Retaining Rings - Push On
Top Level Category: Retaining Rings - Push On - Carbon Steel
Product Details

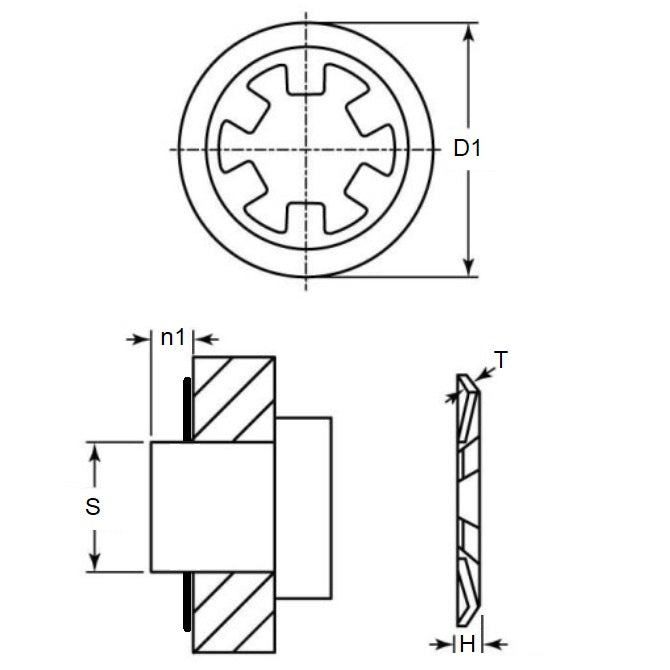

Min shaft size (s1): 18.92mm(18.92mm is 0.745 in.)
Carbon Steel
- Min shaft size (s1): 18.92mm
(18.92mm is 0.745 in.)
- Max Shaft Size (s2): 19.18mm
(19.18mm is 0.755 in.)
- Outside diameter (D1): 27.33mm
(27.33mm is 1.076 in.)
- Min shaft extension (n1): 2.74mm
- Height (H) Max.: 1.37mm
- Material Thickness (t): 0.38mm
- Approx. Thrust Load: 62kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5115-075
- Huyett® TX-075
- NoCor® TX-075
- Rotor Clip® TX-075
- TX075
- N14650075APP
- N1465-0075
- N1465-0075APP
- N1465075
- N1465-075
- 5115075
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
