P-H-016-254FF-SB-T1108

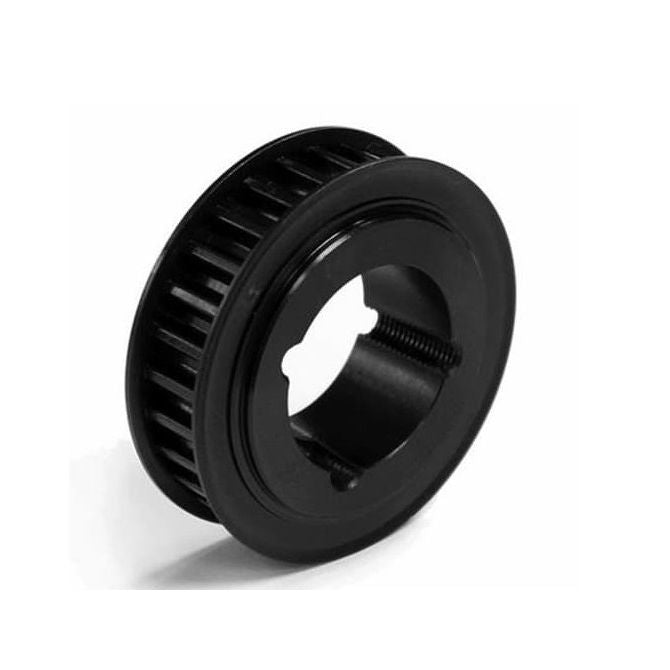

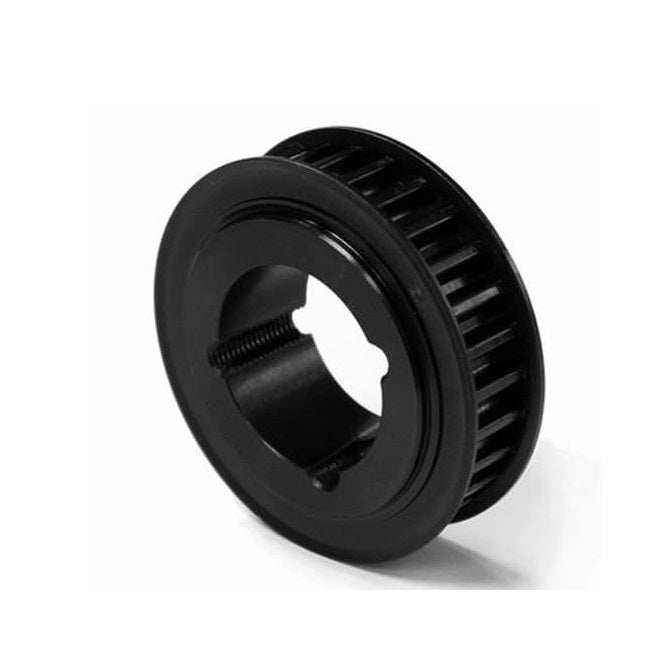

Inch Timing Pulleys - 16 tooth - 25.4 mm - Determined by Taperlock Series Series 12.700mm Pitch H - Steel - Black Oxide Pulley

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Inch Timing Pulleys - 16 tooth - 25.4 - Determined by Taperlock Series Series - Steel - Black Oxide
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Timing Pulleys Catalogue PDF
Pulley Flanges
H Section Timing Belts
Price:
$87.23 AUD
$104.67 AUD $87.23 AUD
Each
Qty: 1 available now
Order 50 or more for $78.51 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 16, 2025

Base Category: Pulleys - Inch Timing

Top Level Category: Pulleys - Inch Timing - 12.700mm Pitch H - 25.4mm Wide - Taperlock

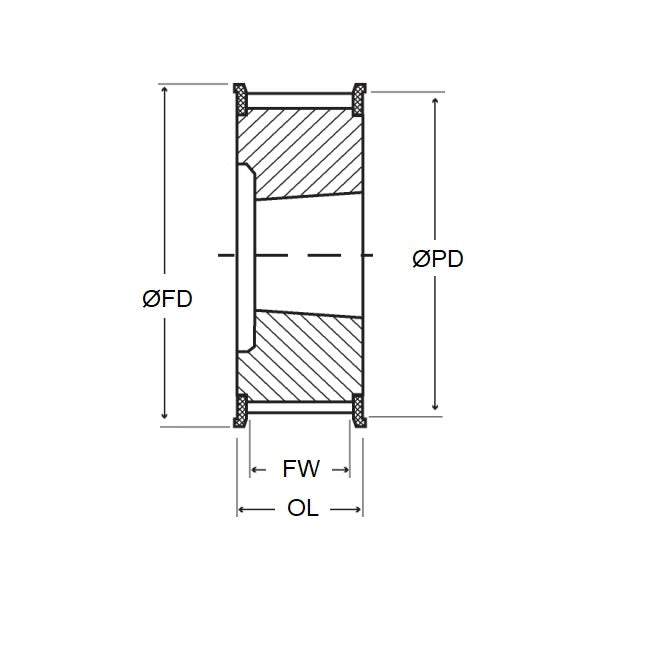

Product Details

Number of Teeth: 16

Steel - Black Oxide
  • Max Belt Width (W): 25.40mm
    (25.40mm is 1 in.)
  • Bore (d): Determined by Taperlock Series Series
  • Bore Type: Suits Taperlock 1108
  • Type: 2
  • Pitch Dia. (D): 64.65mm
  • Flange Diameter (FD): 70.6mm
  • Overall Length: 33.3mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Gates TL16H100-1108
  • TL16H1001108

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
