NSO-0160-0220-0120-ST (Each)
Needle Roller without Inner Ring Bearings - 16x22x12 mm / 735 Kgf Shell Type - Chrome Steel Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Shafting
Order 50 or more
for $9.53 AUD Each
16x22x12 mm / 735 Kgf Needle Roller without Inner Ring Bearings - Chrome Steel - Sold per Each:
Base Category: Bearings - Needle Roller without Inner Ring
Top Level Category: Bearings - Needle Roller without Inner Ring - Shell Type - Open Ends
Product Details
Shaft Diameter (d): 16.000mm(16.000mm is 0.63 in.)
Chrome Steel
- Shaft Diameter (d): 16.000mm
(16.000mm is 0.63 in.)
- O.D. (D): 22.000mm
(22.000mm is 0.866 in.)
- Width (B): 12.000mm
(12.000mm is 0.472 in.)
- Basic Dynamic Load Rating: 735Kgf
- Basic Static Load Rating: 980Kgf
- Limiting Speed Grease: 9500RPM
- Limiting Speed Oil: 16000RPM
- Cage Type: Steel
- Seals: None

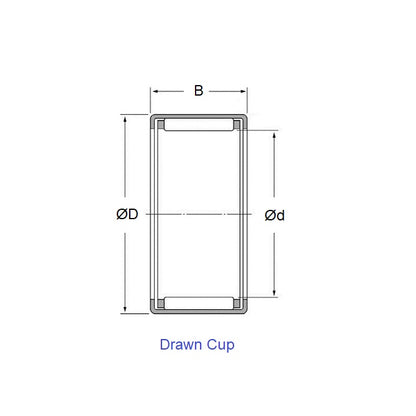

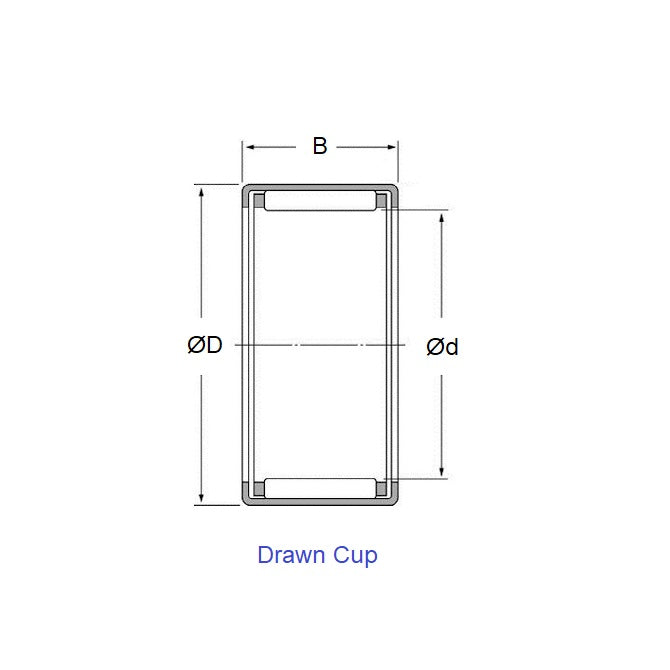

- Type: Drawn Cup
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- ALTPART
- 5905K76
- FAG® HK1612
- IKO TLA1612
- Nachi® TLA-1612
- DC501601
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
NSO016002200120ST, NSO01600220
