G013B-016-D32-048-032-AB-G (Each)

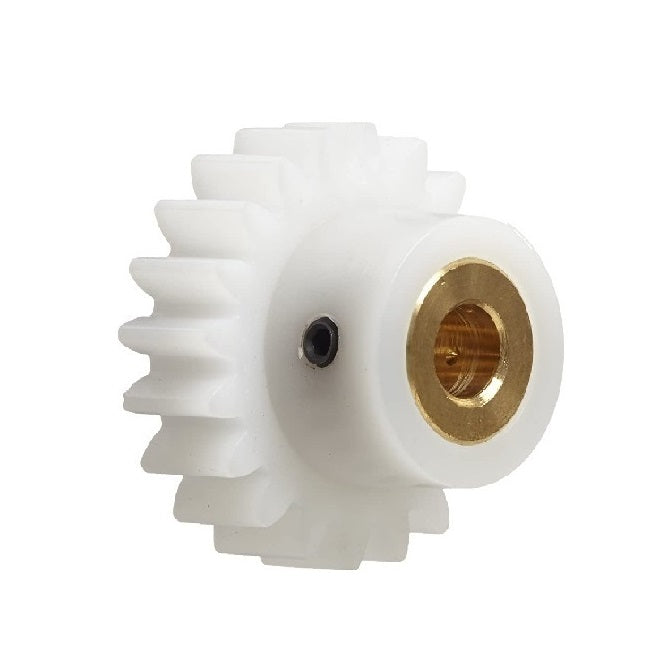

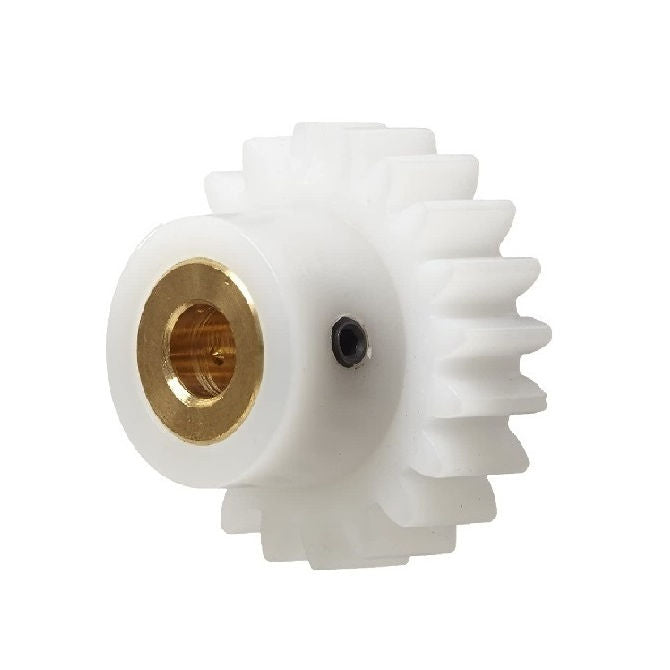

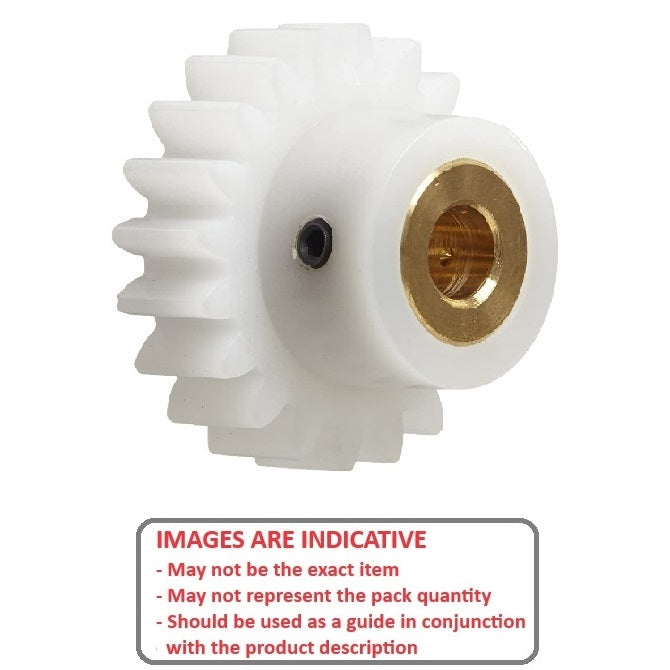

Spur Gears - 16 tooth - 12.7x3.175 mm Hubbed - Acetal - Brass insert Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $11.09 AUD Each
16 tooth - 12.7x3.175 mm Spur Gears - Acetal - Brass insert - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubbed - 48DP - 20 Degree - Plastic - With Insert
Product Details
Number of Teeth: 16Acetal - Brass insert

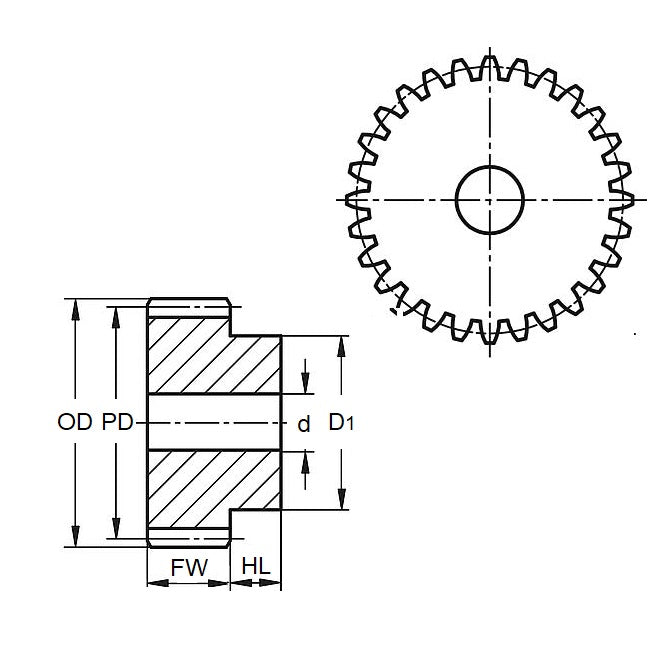

- Number of Teeth: 16
- Pitch Circle Diameter (PD): 12.700mm
(12.700mm is 0.5 in.)
- Bore (d): 3.175mm
(3.175mm is 0.125 in.)
- Outside Diameter (OD): 14.30mm
- Face Width (FW): 4.76mm
- Type: Hubbed
- Hub Diameter (D1): 8.74mm
- Hub Projection (HL): 7.9mm
- Locking Method: Pin Hub - Set Screw
- Quality: AGMA Q8 / Machined
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- G013B16D32048032ABG
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G013B016D32048032ABG, G013B016D32
