ECL-0135-0159-C-KR (PK-5)
E-Clips Retaining Rings - 15.88x13.49x1.27 mm Klipring - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Order 50 or more packs of 5 (250 pcs)
for $2.33 AUD per 5 pack
Couldn't load pickup availability
5/8x17/32 inch E-Clip - 15.88x13.49x1.27 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 5:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Klipring
Product Details
Additional stock available from USA subject to Prior Sale = 4966

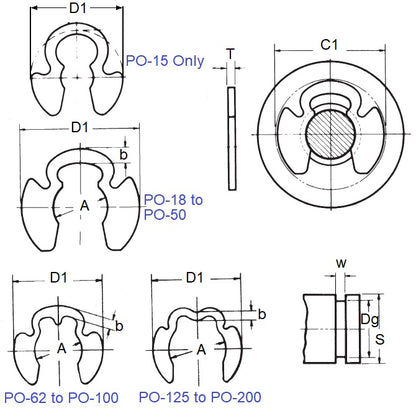

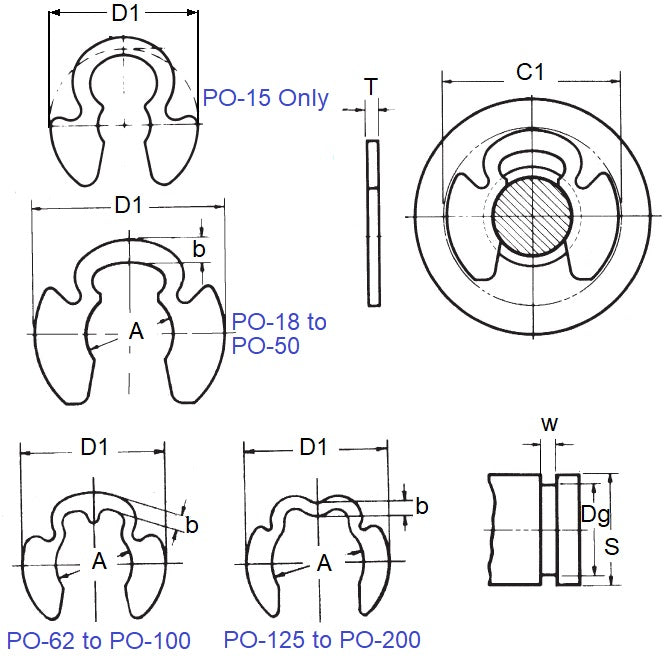

Minimum Rec. Shaft Dia (S): 15.88mm
+ 3.05 / - 0.00
(15.88mm is 0.625 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 15.88mm
+ 3.05 / - 0.00
(15.88mm is 0.625 in.)
- Groove Dia. (Dg): 13.49mm
+/- 0.204
(13.49mm is 0.531 in.)
- Clip Thickness (T): 1.27mm
+/- 0.052
(1.27mm is 0.05 in.)
- Clip OD Loose (D1): 24.54mm
- Groove Width (W): 1.42mm
- Maximum Rec. Shaft Dia (S): 18.93
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5304-062
- ALTPART
- 98420A140
- Huyett® PO-062
- NoCor® PO-062
- Rotor Clip® PO-062
- PO062
- 5304062
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
