P-UC204-10-AGL (PK-5)

Name: Spherical OD Bearings - 15.875x47x31 mm Suits Plastic Housings - Acetal with Glass Balls Bearing (Sold Per PK-5) - - P-UC204-10-AGL
Brand: KMS
SKU: PUC20410AGL
Price: 282.23 AUD
Availability: BackOrder

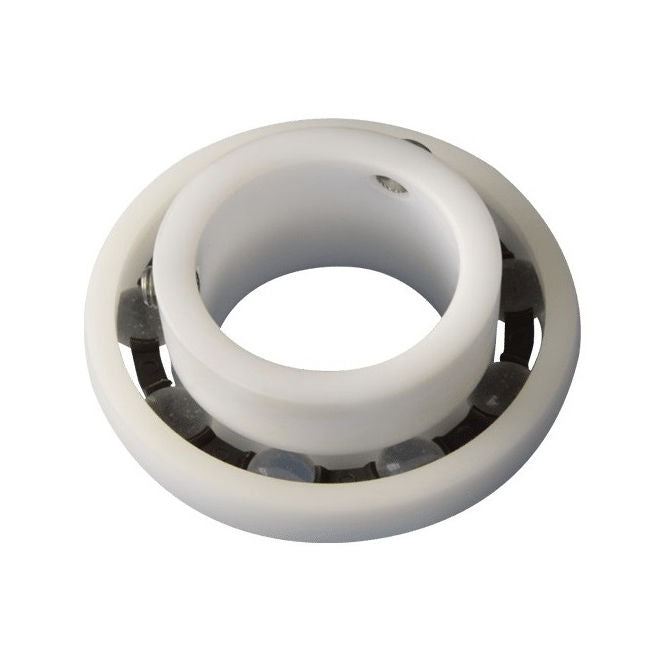

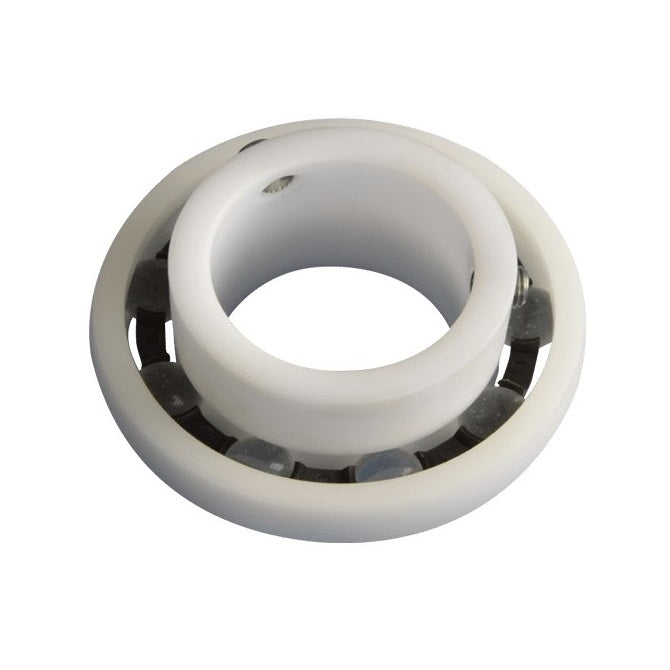

Spherical OD Bearings - 15.875x47x31 mm Suits Plastic Housings - Acetal with Glass Balls Bearing

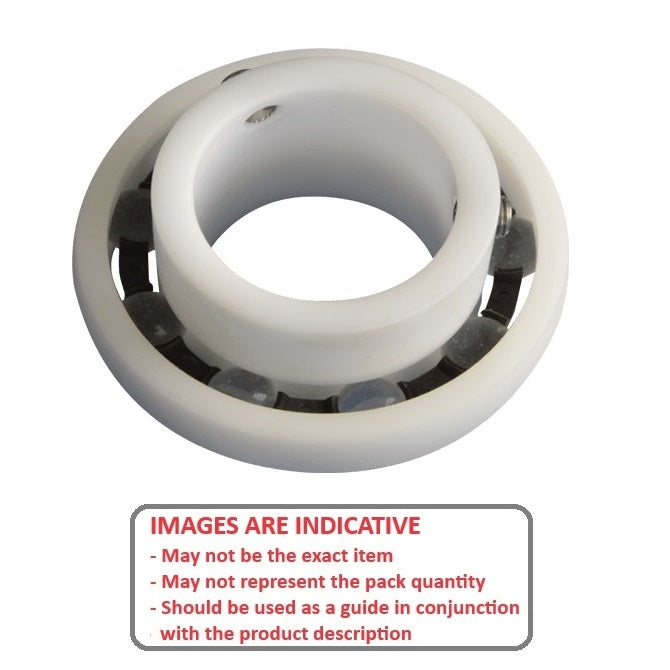

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Spherical OD - Suits Plastic Housings - Acetal - Glass Balls

Price:

$282.23 AUD

Priced, Stocked and Sold Per 5 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more pack (250 pcs)
for $254.01 AUD per 5

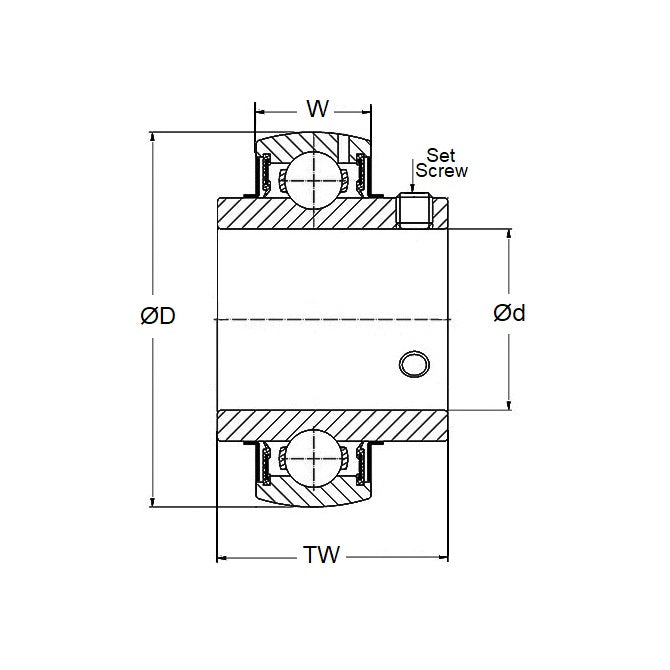

Product Details

Inside Diameter: 15.875mm
_{(15.875mm is 0.625 in.)}

Acetal with Glass Balls

Inside Diameter: 15.875mm
_{(15.875mm is 0.625 in.)}
Outside Diameter: 47.000mm
_{(47.000mm is 1.85 in.)}
Bearing Width: 31.000mm
_{(31.000mm is 1.22 in.)}
Suits Housing: P204PE / F204PE / FL204PE / FB204PE
Type: Single Row Ball
Max RPM: 840
Load Capacity (Dynamic): 34.8Kg
Load Capacity (Static): 23.2Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

KMS AIB204-5/8-G
AGLUC20410
AIB2045/8G

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
