W0159-FP-025-0064-CL (PK-10)

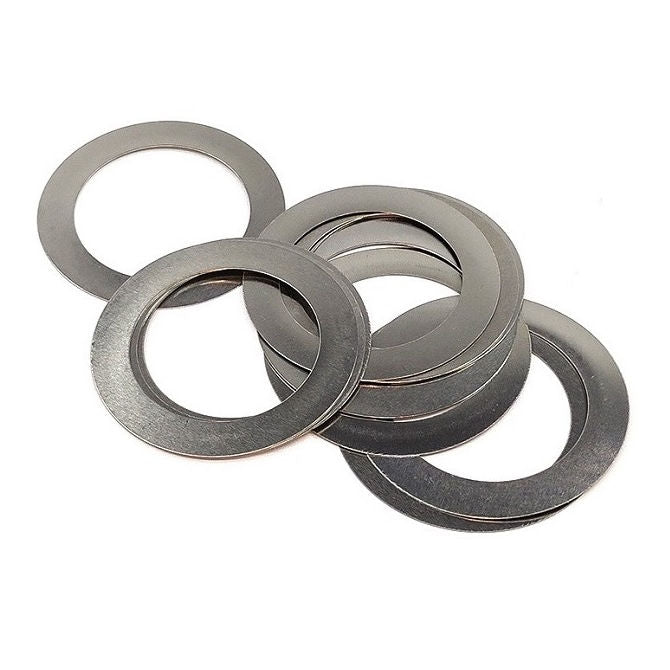

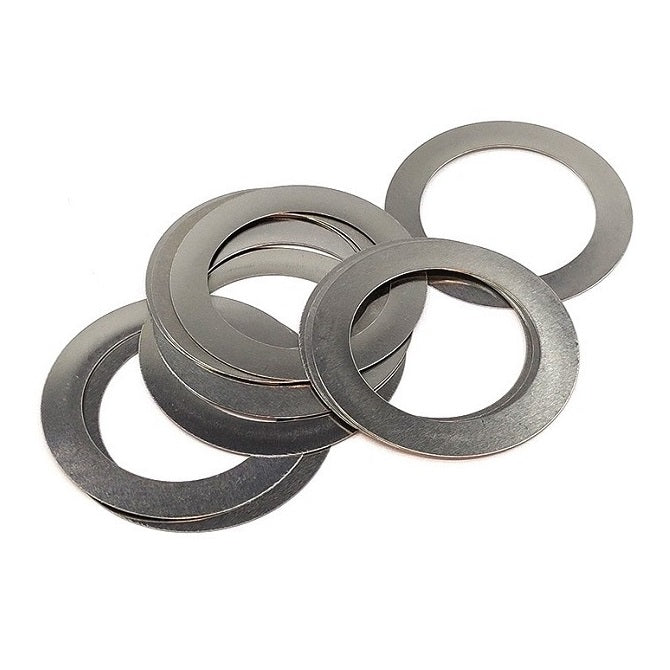

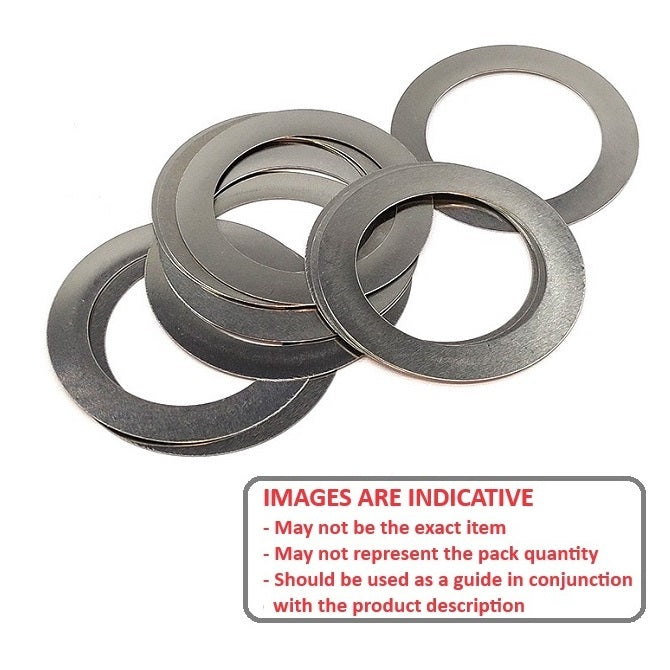

Flat Washers - 15.875x25.4x0.64 mm Precision Shim - Carbon Steel - Low Carbon 1010 Cold Rolled Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Order 50 or more packs of 10 (500 pcs)
for $27.86 AUD per 10 pack
5/8x1 inch Washer - 15.875x25.4x0.64 mm Flat Washers - Carbon Steel - Low Carbon 1010 Cold Rolled - Sold per pack of 10:
Base Category: Washers - Flat
Top Level Category: Washers - Flat - Precision Shim - Carbon Spring Steel
Product Details
Nominal Inside Diameter (d): 15.875mm+ 0.000 / + 0.279
(15.875mm is 0.625 in.)
Carbon Steel - Low Carbon 1010 Cold Rolled
- Nominal Inside Diameter (d): 15.875mm
+ 0.000 / + 0.279
(15.875mm is 0.625 in.)
- Nominal Outside Diameter (D): 25.400mm
+/- 0.051
(25.400mm is 1 in.)
- Thickness (T): 0.640mm
+ 0.051 / - 0.051
(0.640mm is 0.025 in.)
- Other: Rockwell B 65 Min
- Grade: Precision
- Other: Arbor Shim
- Min. Actual ID (Ref): 15.875mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 3088A413
- Reid Tool® PB-25154
- PB25154
- A7C8-E20025
- A7C8E20025
- W0159FP0250064C
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0159FP0250064CL, W0159FP025
