BF0159-0222-0159-BS2532TT (Each)

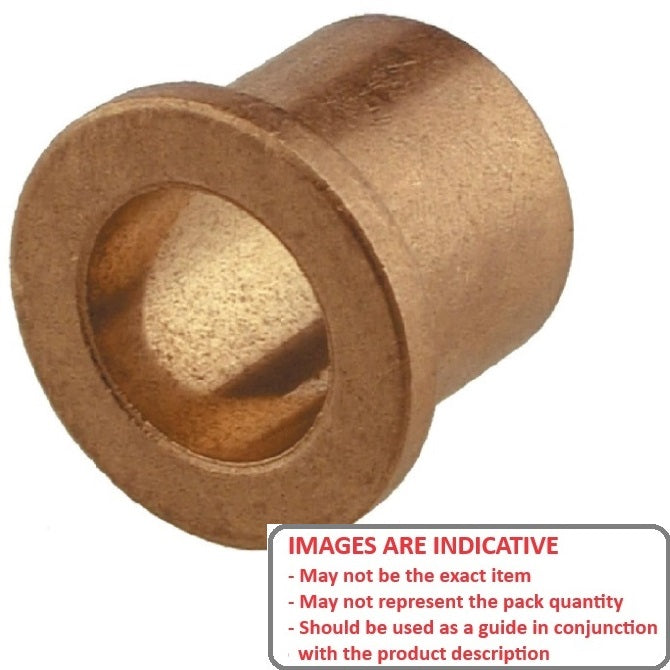

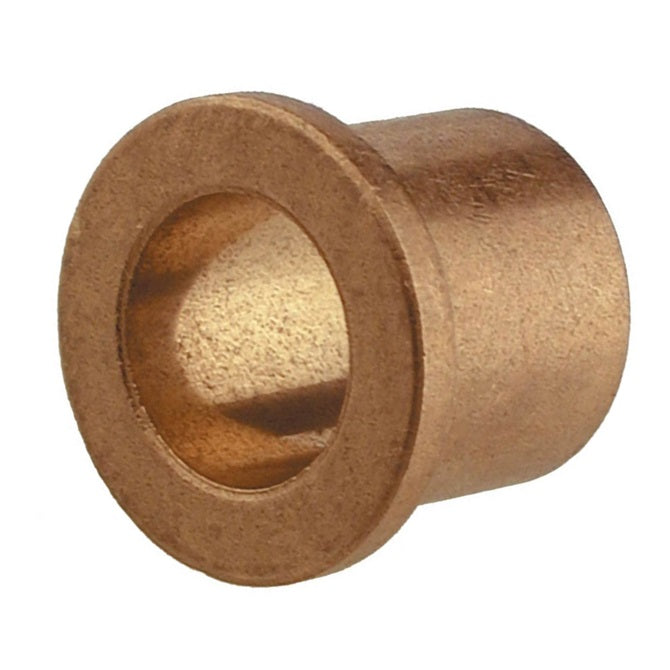

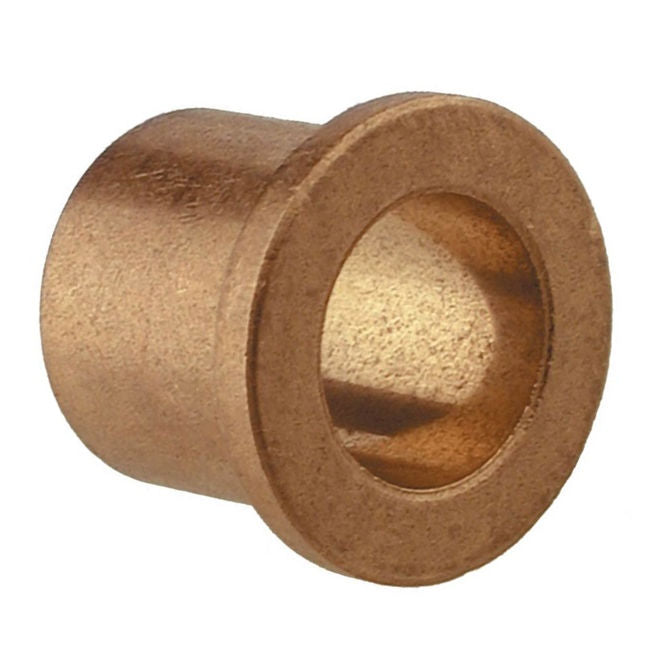

Flanged Bushes - 15.875x22.225x15.875 mm - Bronze SAE 841 Sintered Bush
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleBushes PDF Catalogue
Order 50 or more
for $9.77 AUD Each
5/8x7/8x5/8 inch Bush - 15.875x22.225x15.875 mm Flanged Bushes - Bronze SAE 841 Sintered - Sold per Each:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Bronze - Sintered
Product Details

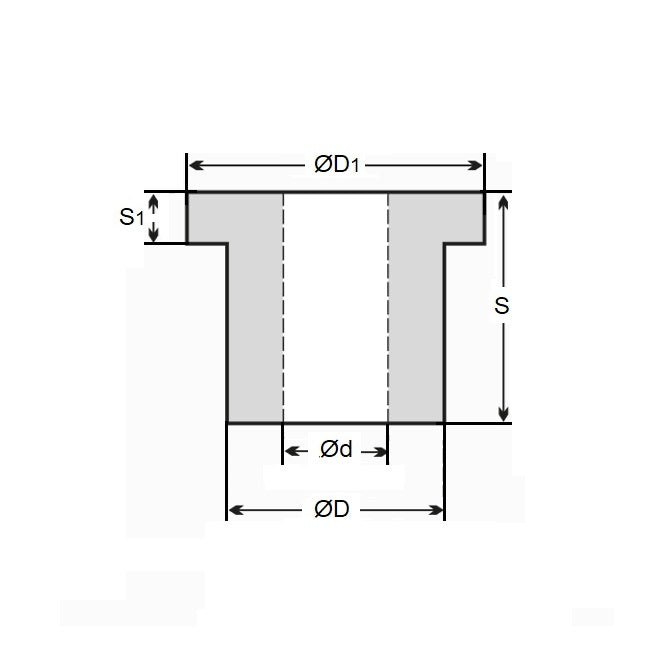

Nominal Inside Diameter (d): 15.875mm+ 0.025 / + 0.051
(15.875mm is 0.625 in.)
Bronze SAE 841 Sintered
- Nominal Inside Diameter (d): 15.875mm
+ 0.025 / + 0.051
(15.875mm is 0.625 in.)
- Nominal Outside Diameter (D): 22.225mm
+ 0.025 / + 0.051
(22.225mm is 0.875 in.)
- Length (s): 15.875mm
+/- 0.127
(15.875mm is 0.625 in.)
- Flange OD (D1): 25.40mm
- Flange Thickness (S1): 3.18mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Oilite® FF-843-4
- Oilube® FF-843-4
- Oilite® FF843-4
- FF8434
- BF015902220159BS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF015902220159BS2532TT, BF015902220159
