CP-159-159K-40-066-J-PU92G (Each)

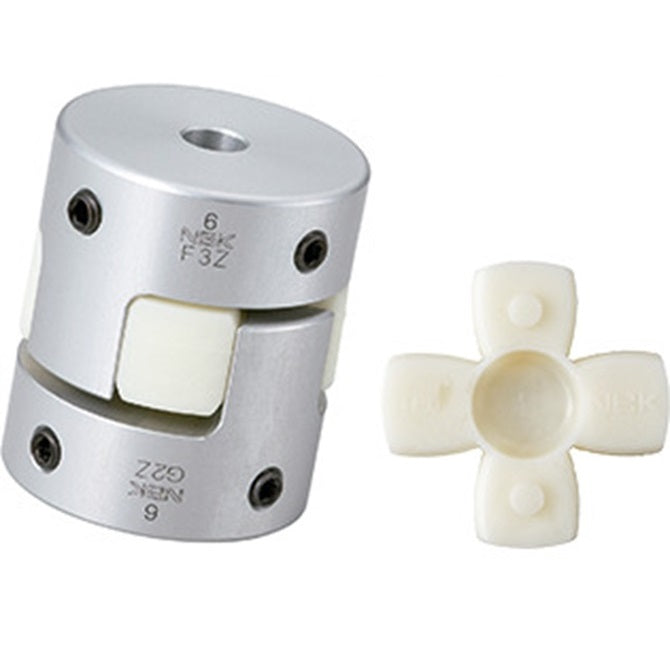

Spider Type C Complete Couplings - 15.875 Keyed 15.875 39.9 mm - Aluminium with 92 Duro White Spider Coupling
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $155.41 AUD Each
5/8 inch Coupling - 15.875 Keyed 15.875 39.9 mm Spider Type C Complete Couplings - Aluminium with 92 Duro White Spider - Sold per Each:
Base Category: Couplings - Spider Type C Complete
Top Level Category: Couplings - Spider Type C Complete
Product Details

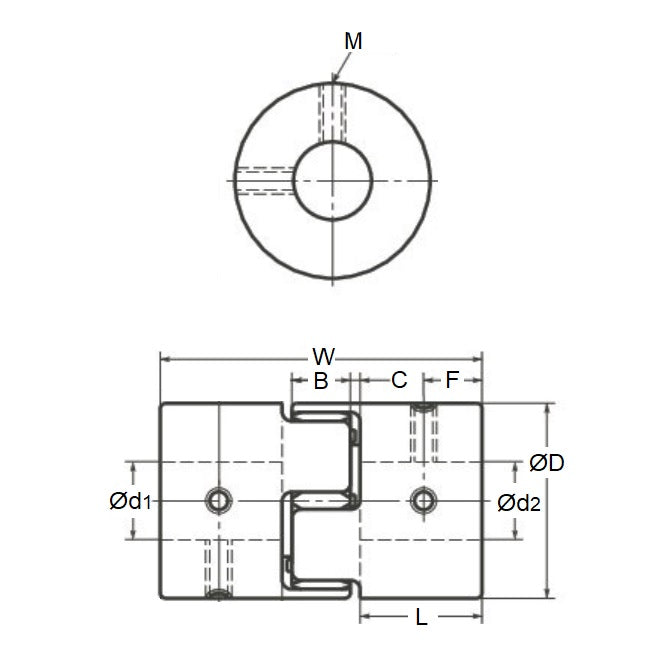

Bore (B): 15.875mm(15.875mm is 0.625 in.)
Aluminium with 92 Duro White Spider
- Bore (B): 15.875mm
(15.875mm is 0.625 in.)
- Bore (B): Keyed 15.875mm
- OD (D): 39.9mm
(39.9mm is 1.571 in.)
- Overall Assembled Length (L): 66mm
- Description: Complete
- Rated Torque: 17Nm
- Max. Torque: 34Nm
- Fixing Type: Set Screw
- Spider Hardness: Aluminium with 92 Duro White Spider
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® GU-3319
- GU3319
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CP159159K40066JPU92G, CP159159K
