PBC-111RS (Each)

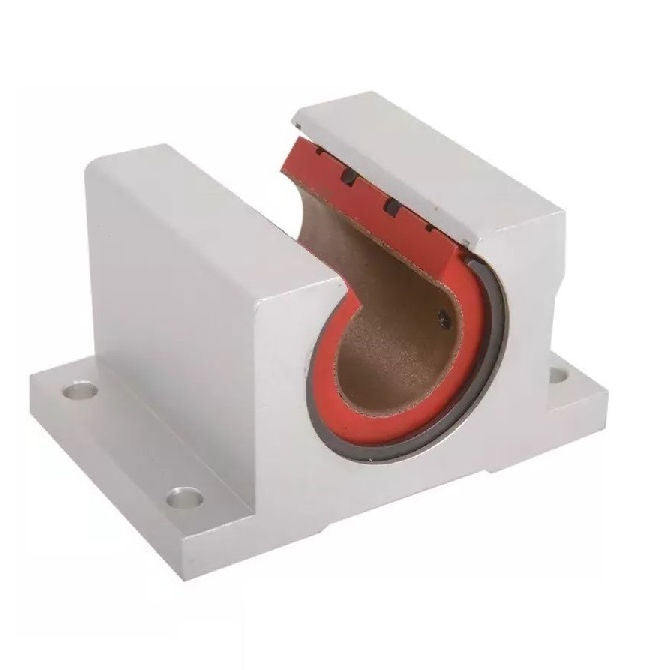

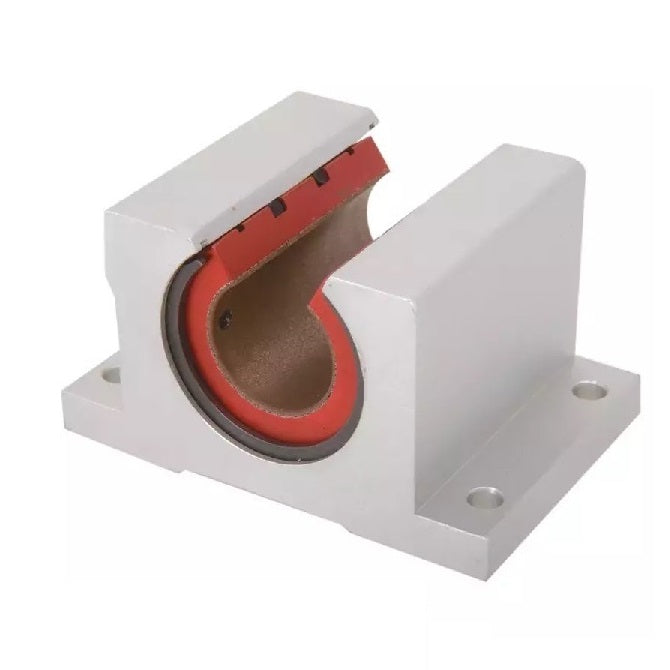

Housings Pillow Block Frelon Linear - 15.875x22.225x63.5 mm Precision

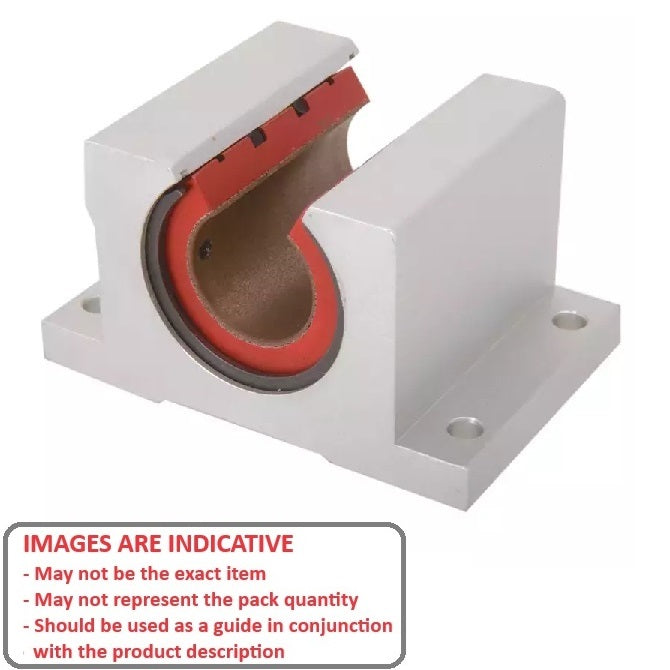

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Housings Pillow Block Frelon Linear - 15.875x22.225x63.5 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$628.32 AUD
$753.98 AUD $628.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $565.49 AUD Each
Backorder now! Backorders are expected before May 30, 2026

Base Category: Linear - Housings Pillow Block Frelon

Top Level Category: Linear - Housings Pillow Block Frelon - Precision - Open

Product Details

Bore Diameter: 15.875mm
+ 0.10 / + 0.05
(15.875mm is 0.625 in.)
  • Bore Diameter: 15.875mm
    + 0.10 / + 0.05
    (15.875mm is 0.625 in.)

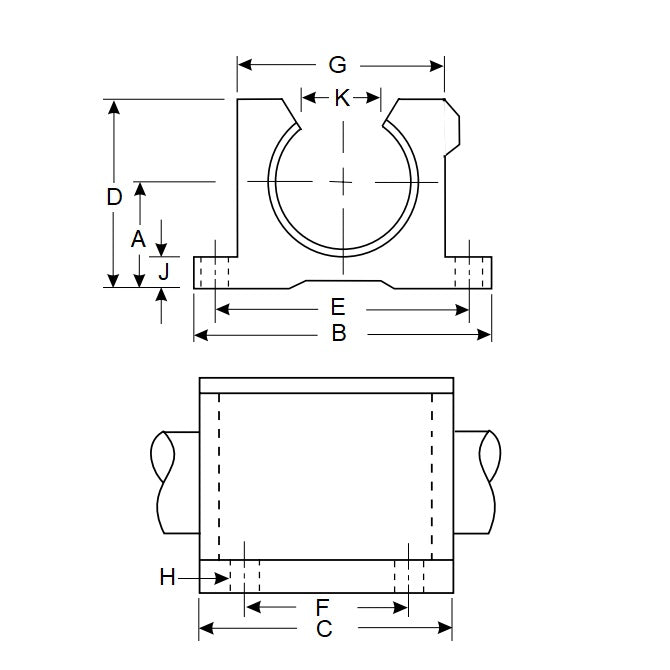

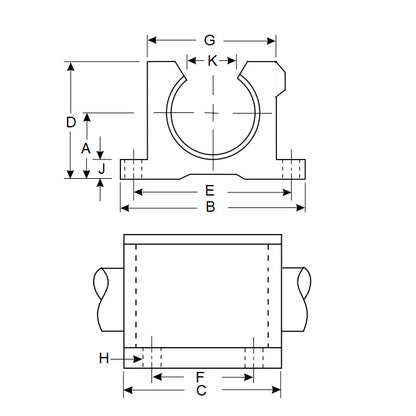

  • Centre Bore Height (A): 22.225mm
    (22.225mm is 0.875 in.)
  • Base Width (B): 63.500mm
    (63.500mm is 2.5 in.)
  • Overall Length (C): 101.600mm
  • Height (D): 36.525mm
  • Centre Bolt Holes Width (E): 53.975mm
  • Centre Bolt Holes Length (F): 76.200mm
  • Housing Width (G): 44.450mm
  • Bolt Hole Size: 4.750mm
  • Flange Height (J): 7.137mm
  • Centre Bore Height (A): 9.525mm
  • Max Load Rating: 1333.56Kg

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Pacific PWN10

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
