RPI-158-159-C (PK-20)

Push In Carbon Steel Retaining Rings - 15.82x15.93x9.91 mm - Carbon Spring Steel Self Finish

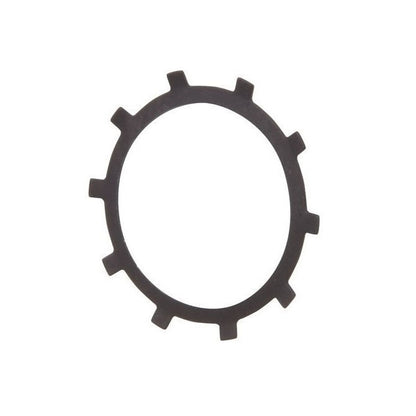

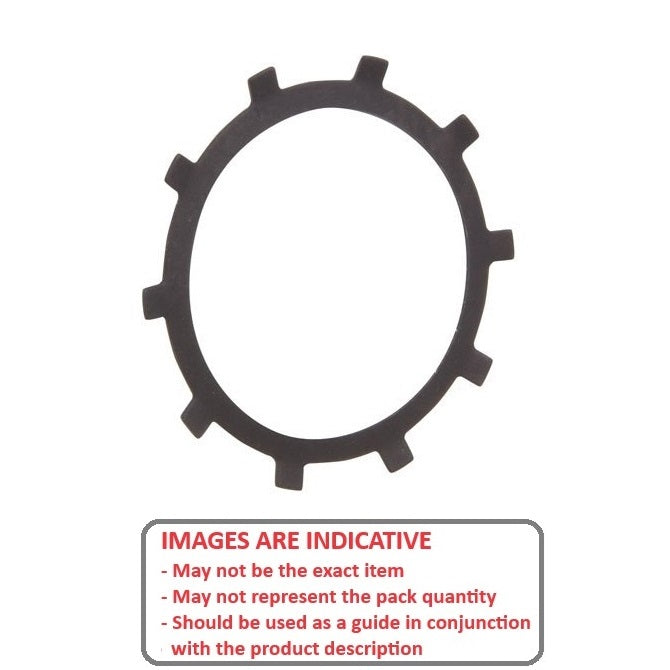

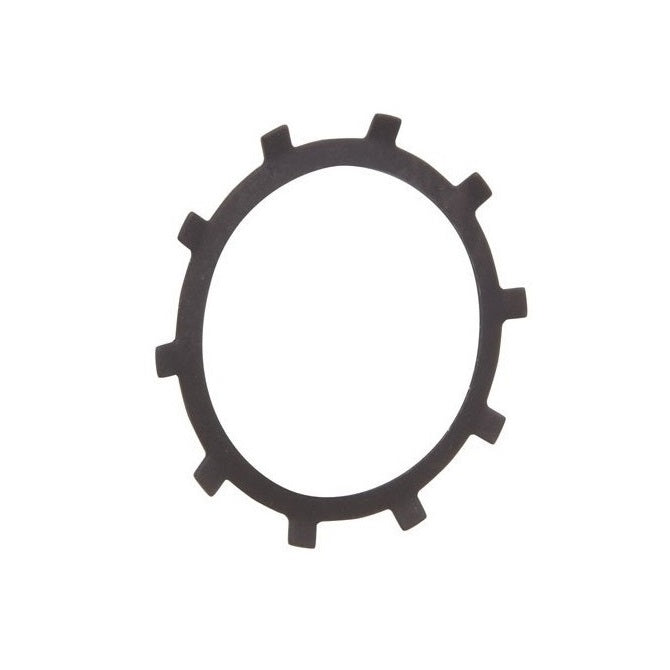

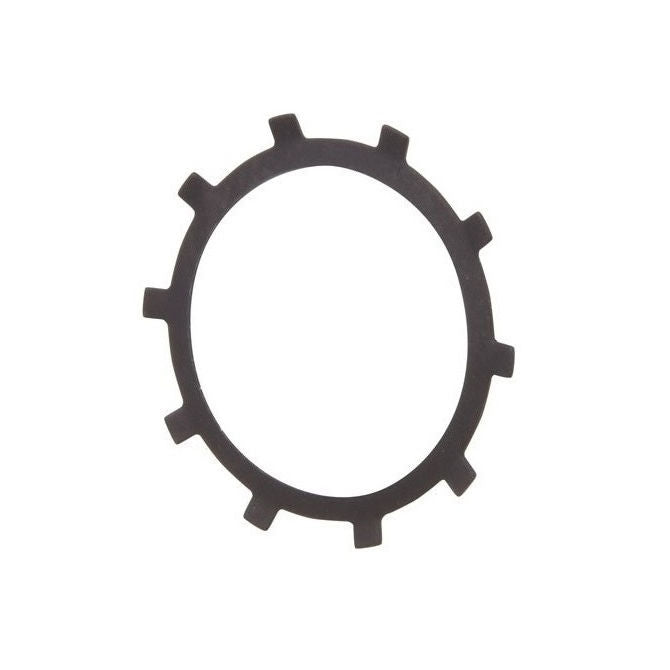

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Push In Carbon Steel Retaining Rings - 15.82x15.93x9.91 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$2.95 AUD
$3.55 AUD $2.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
 Qty: 37 packs (740 pcs) available now

Order 50 or more packs of 20 (1000 pcs)
for $2.66 AUD per 20 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 04, 2026

5/8x5/8 inch Ring - 15.82x15.93x9.91 mm Push In Carbon Steel Retaining Rings - Carbon Spring Steel Self Finish - Sold per pack of 20:

Base Category: Retaining Rings - Push In Carbon Steel

Top Level Category: Retaining Rings - Push In Carbon Steel

Product Details


Additional stock available from USA subject to Prior Sale = 8575

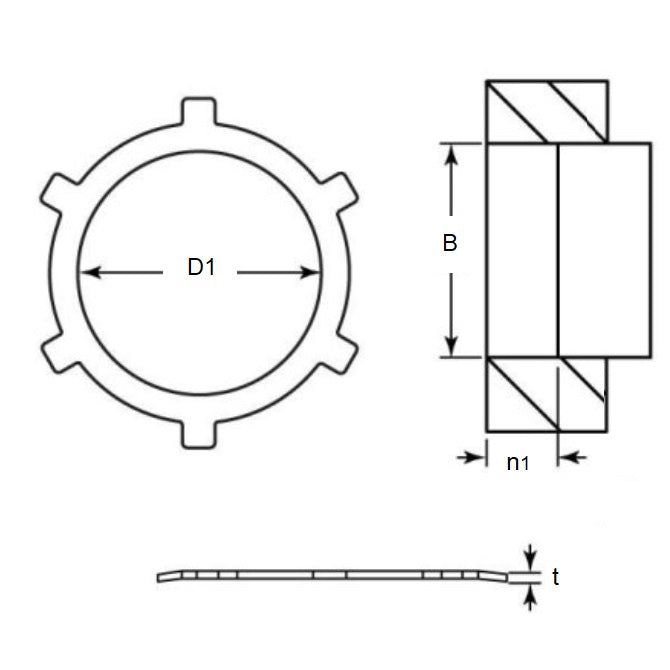

Housing Bore (B) Min: 15.82mm
(15.82mm is 0.623 in.)

Carbon Spring Steel Self Finish
  • Housing Bore (B) Min: 15.82mm
    (15.82mm is 0.623 in.)
  • Housing Bore (B) Max: 15.93mm
    (15.93mm is 0.627 in.)
  • Inside Clearance (D1): 9.91mm
    + / - 0.26
    (9.91mm is 0.39 in.)
  • Thickness (t): 0.25mm
    +/- 0.03
  • Recommended Depth (n1): 1.02mm
  • Thrust Load: 622kg.cm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 98435A140
  • Small Parts RSI-10
  • Huyett® TI-062
  • NoCor® TI-062
  • RSI10
  • TI062
  • S73PH1-PIR005062
  • S73PH1PIR005062
  • N13050062APP
  • N1305-0062-APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RPI158159C, RPI158
