RPO-158-159-SP15 (PK-6)

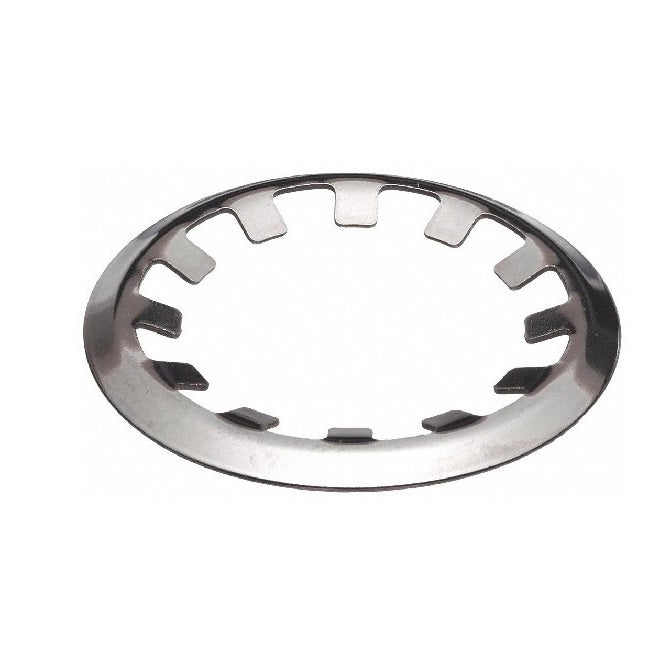

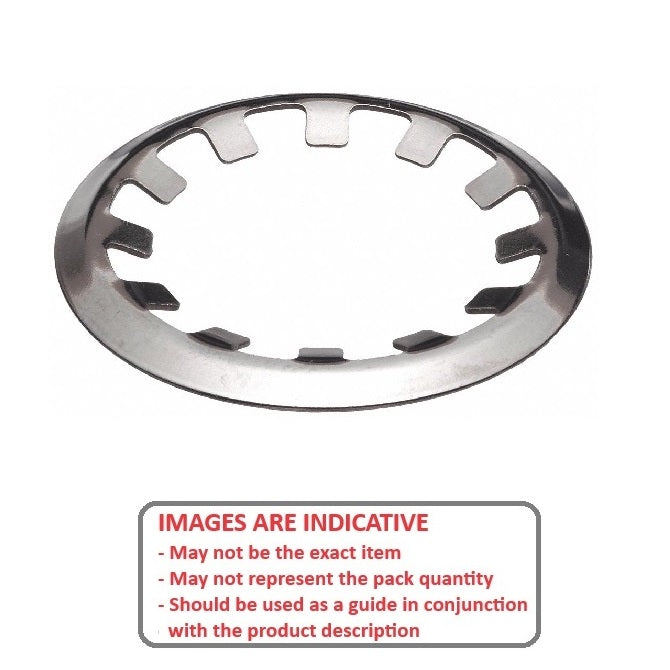

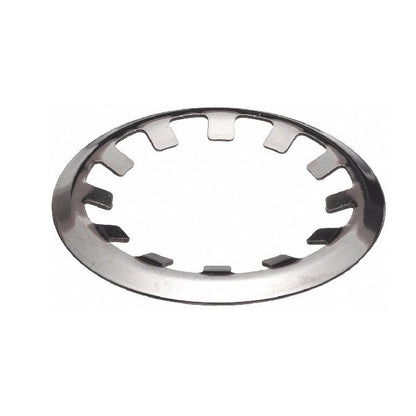

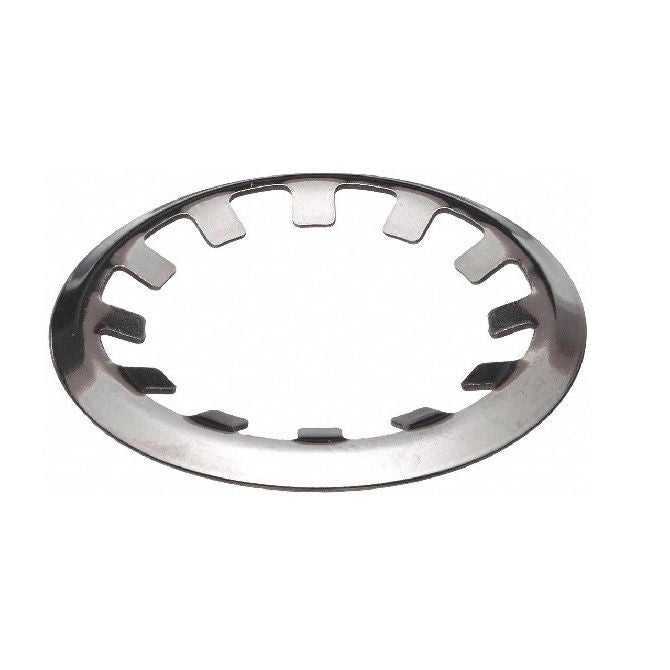

Push On Retaining Rings - 15.82x15.93x22.23 mm - Stainless Steel Grade PH15-7-17 Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 6 (300 pcs)
for $13.63 AUD per 6 pack
5/8x5/8x7/8 inch Ring - 15.82x15.93x22.23 mm Push On Retaining Rings - Stainless Steel Grade PH15-7-17 - Sold per pack of 6:
Base Category: Retaining Rings - Push On
Top Level Category: Retaining Rings - Push On - Stainless Steel
Product Details
Additional stock available from USA subject to Prior Sale = 497

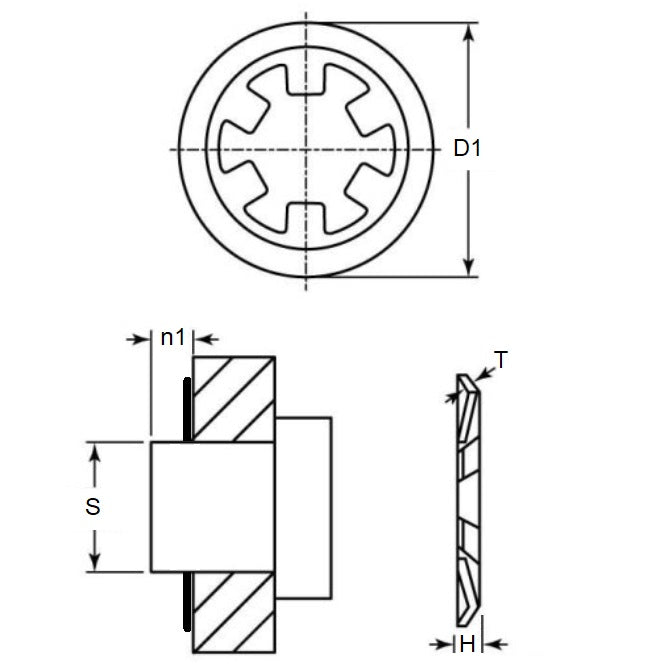

Min shaft size (s1): 15.82mm
(15.82mm is 0.623 in.)
Stainless Steel Grade PH15-7-17
- Min shaft size (s1): 15.82mm
(15.82mm is 0.623 in.)
- Max Shaft Size (s2): 15.93mm
(15.93mm is 0.627 in.)
- Outside diameter (D1): 22.23mm
(22.23mm is 0.875 in.)
- Min shaft extension (n1): 1.52mm
- Material Thickness (t): 0.42mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5105-062-SS
- IRR 6100-062-SS
- Huyett® TY-062-SS
- NoCor® TY-062-SS
- Rotor Clip® TY-062-SS
- TY062SS
- 6100062SS
- 5105062SS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RPO158159SP15, RPO158159
