RPO-158-160-C (PK-50)

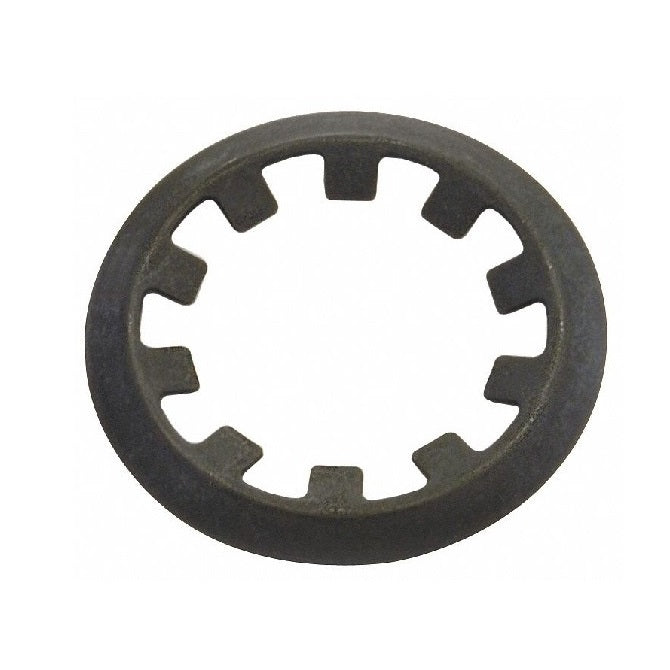

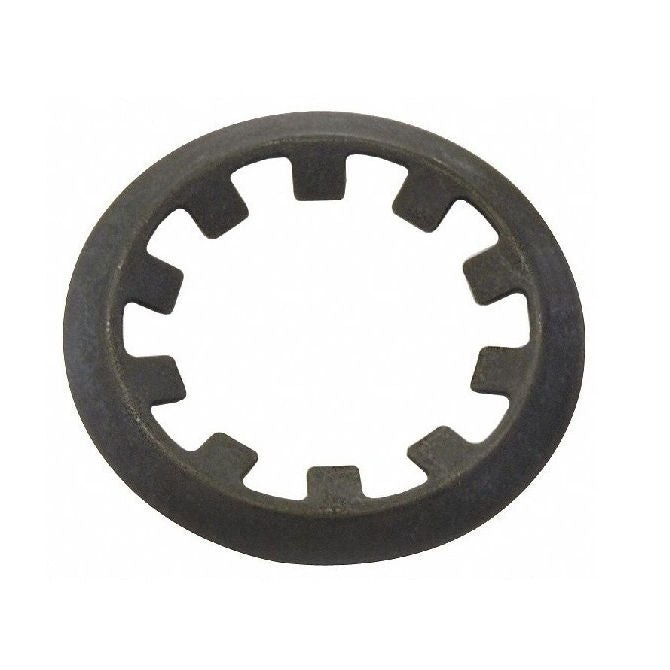

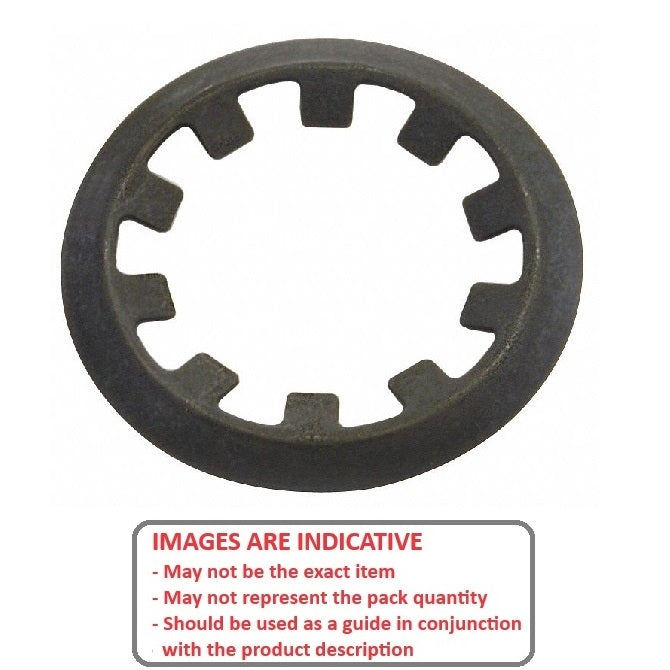

Push On Retaining Rings - 15.75x16x24.16 mm - Carbon Steel Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 50 (2500 pcs)
for $22.46 AUD per 50 pack
15.75x16x24.16 mm Push On Retaining Rings - Carbon Steel - Sold per pack of 50:
Base Category: Retaining Rings - Push On
Top Level Category: Retaining Rings - Push On - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 14478

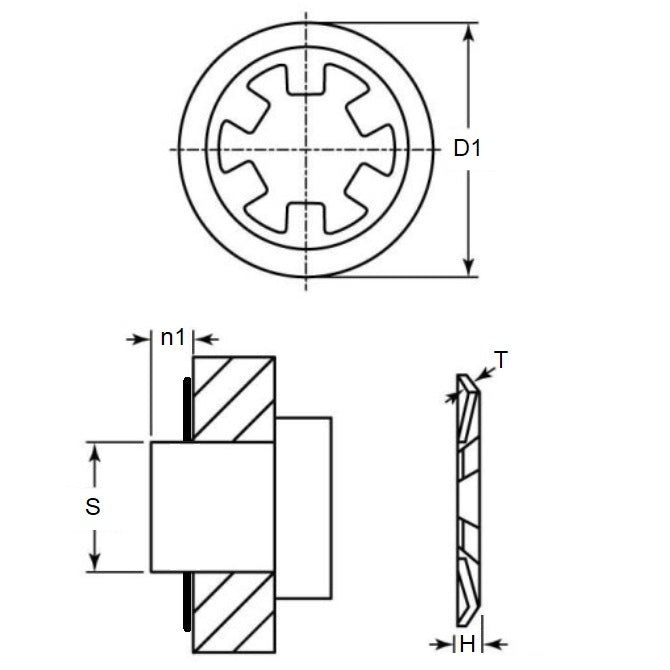

Min shaft size (s1): 15.75mm
(15.75mm is 0.62 in.)
Carbon Steel
- Min shaft size (s1): 15.75mm
(15.75mm is 0.62 in.)
- Max Shaft Size (s2): 16.00mm
(16.00mm is 0.63 in.)
- Outside diameter (D1): 24.16mm
(24.16mm is 0.951 in.)
- Min shaft extension (n1): 2.74mm
- Height (H) Max.: 1.37mm
- Material Thickness (t): 0.38mm
- Approx. Thrust Load: 60kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5115-062
- Small Parts RSE-10
- Huyett® TX-062
- NoCor® TX-062
- Rotor Clip® TX-062
- RSE10
- TX062
- N14650062
- N1465-0062
- N14650062APP
- N1465-0062APP
- N1465062
- N1465-062
- 5115062
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RPO158160C, RPO158
