NART15UUR (Each)
Track Rollers - 15x35x18 mm With Inner Race - Steel Roller
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $101.83 AUD Each

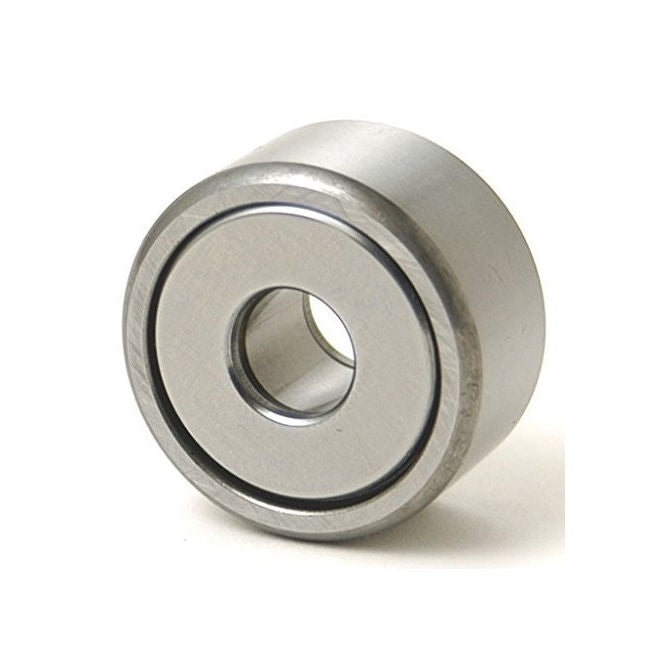

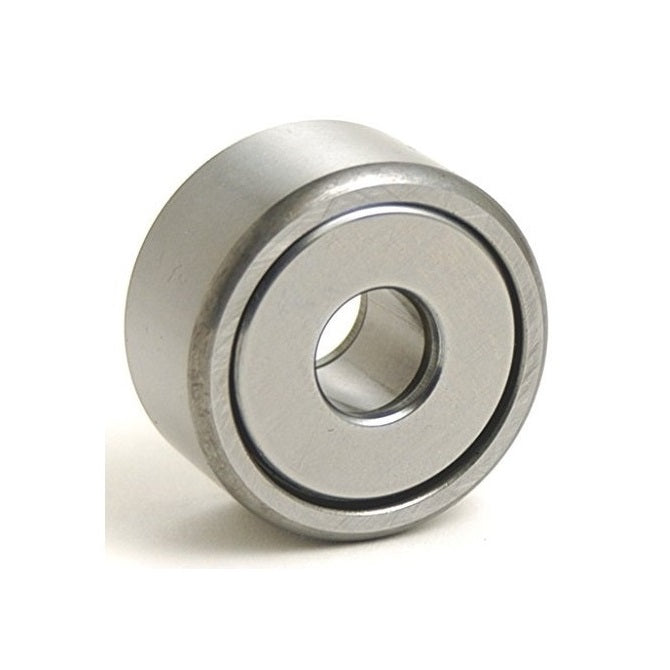

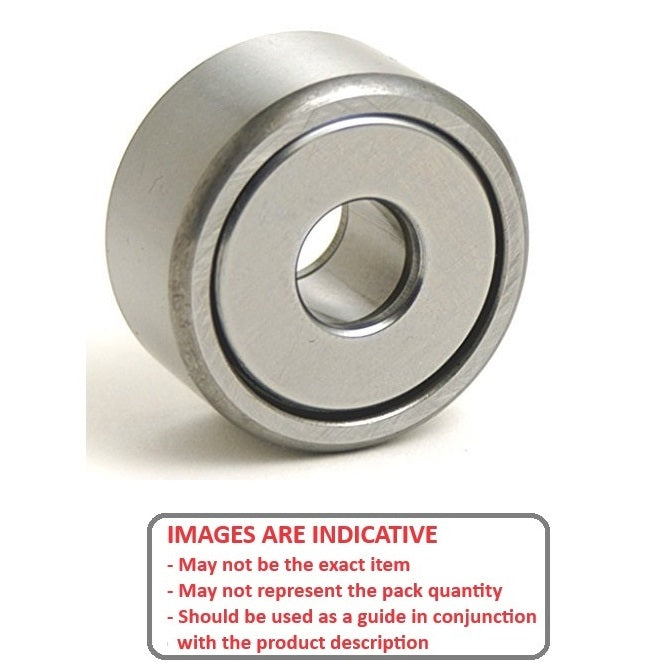

15x35x18 mm Track Rollers - Steel - Sold per Each:
Base Category: Rollers - Track
Top Level Category: Rollers - Track - With Inner Race
Product Details

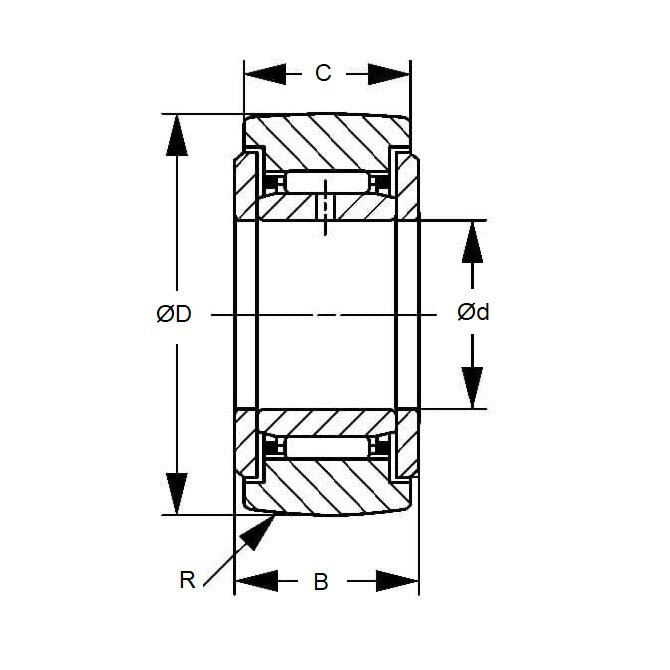

ID (d): 15.00mm(15.00mm is 0.591 in.)
Steel
- ID (d): 15.00mm
(15.00mm is 0.591 in.)
- O.D. (D): 35.00mm
(35.00mm is 1.378 in.)
- Width (C): 18.00mm
(18.00mm is 0.709 in.)
- Inner Ring Width (B): 19.00mm
- OD Type: Radius (500mm)
- Dynamic Load Rating: 1400.00kgf
- Static Load Rating: 1670.00kgf
- Closures: Shields with Seal
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Nachi® NART-15UUR
- NART15UUR
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
