CMF015-15-040M-R60 (PK-2)

Name: Bobbin Mounts - 15x15 mm - M4x0.7 Male to Female - Natural Rubber Mount (Sold Per PK-2) - - CMF015-15-040M-R60
Brand: MBA
SKU: CMF01515040MR60
Price: 7.86 AUD
Availability: InStock

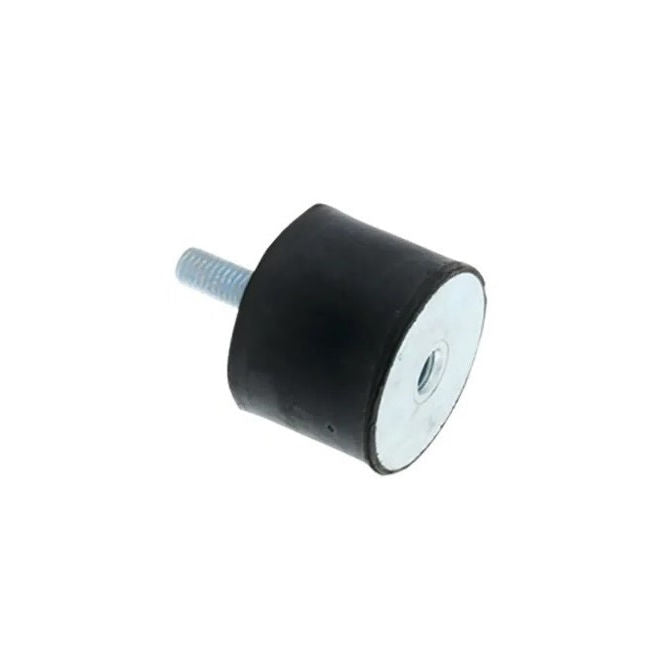

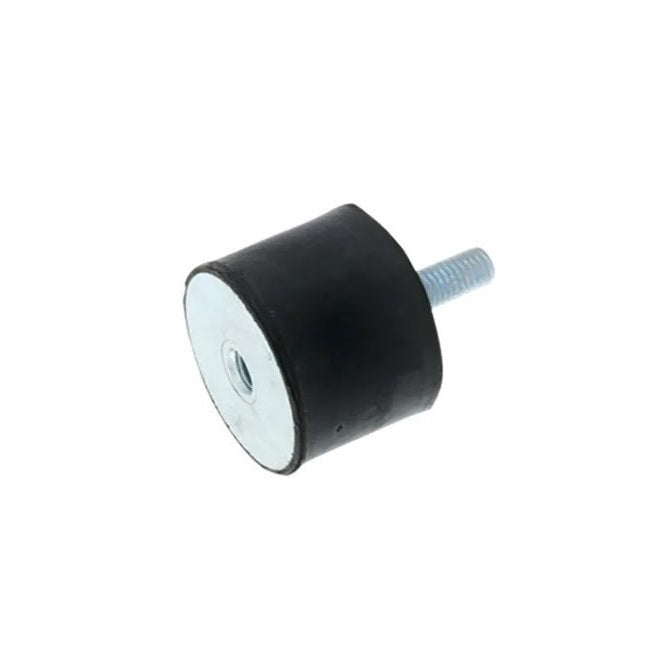

Bobbin Mounts - 15x15 mm - M4x0.7 Male to Female - Natural Rubber Mount

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Mounts - Bobbin - Male to Female

Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide

Price:

$7.86 AUD

Priced, Stocked and Sold Per 2 Units

Excludes GST and overseas Taxes & Duties

Qty: 8 packs (16 pcs) available now

Order 50 or more packs (100 pcs)
for $7.07 AUD per 2

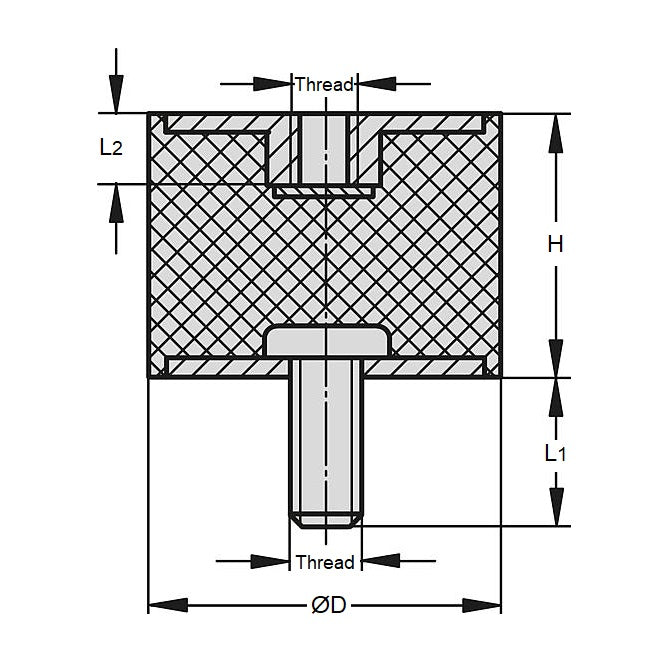

Product Details

Nom. Body Diameter (D): 15.0mm
_{(15.0mm is 0.591 in.)}

Natural Rubber

Nom. Body Diameter (D): 15.0mm
_{(15.0mm is 0.591 in.)}
Body Height (H): 15.0mm
_{(15.0mm is 0.591 in.)}
Thread Size: M4x0.7
Shore Hardness: 60
Thread Length/Depth (L1/L2): 10.0 / 4.0mm
Compression Load: 11 (24)Kg (lbs)
Deflection: 1.3mm
Max Shear Load: 3.1 (6.8)Kg (lbs)
Configuration: Male to Female

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

Trelleborg® 20-01698
V12Z02MMF151514
2001698

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
