P-050H-014-150P-AL-G-060 (Each)

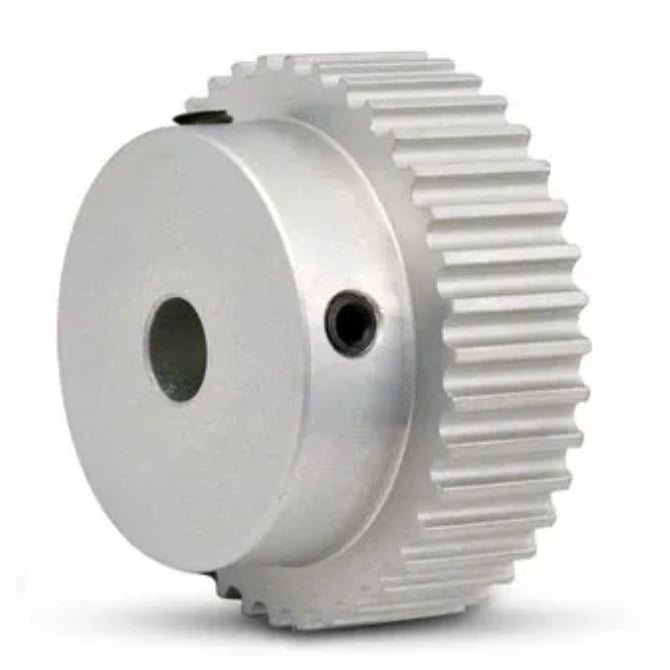

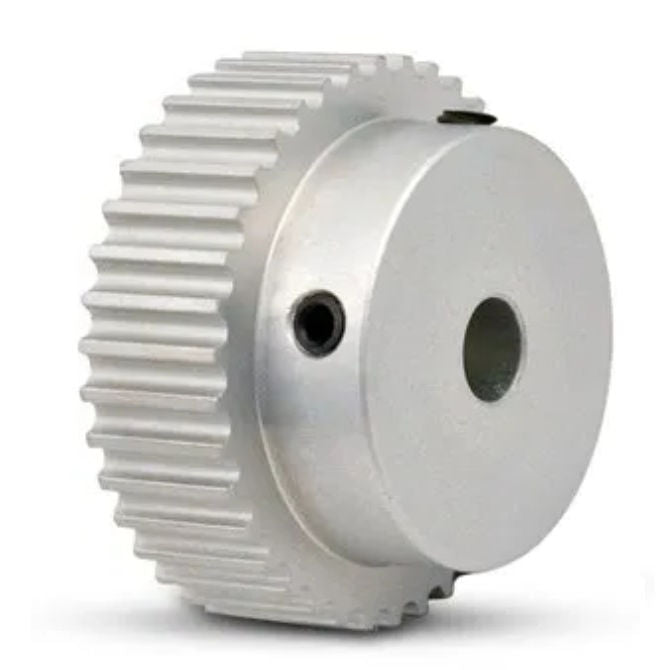

Metric Timing Pulleys - 14 tooth - 15x6 mm 5mm Pitch - Aluminium Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Pulleys Catalogue PDF
5mm HTD Timing Belts
Order 50 or more
for $20.25 AUD Each
14 tooth - 15x6 mm Metric Timing Pulleys - Aluminium - Sold per Each:
Base Category: Pulleys - Metric Timing
Top Level Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide

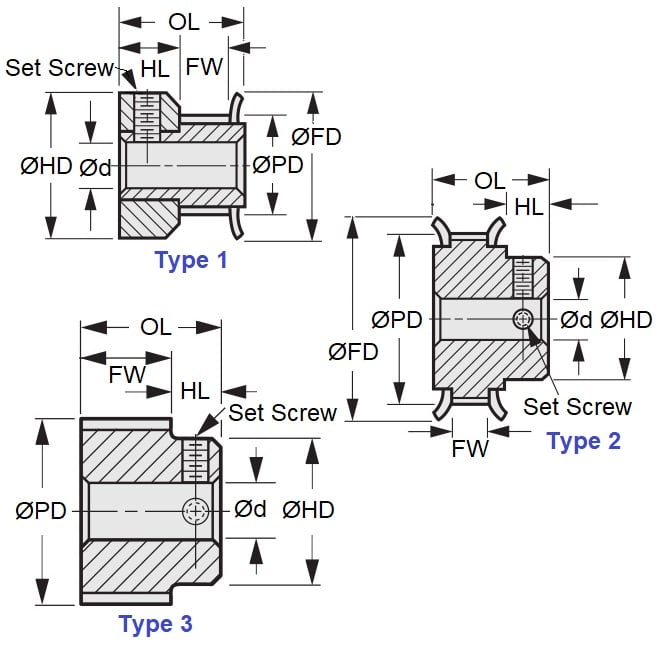

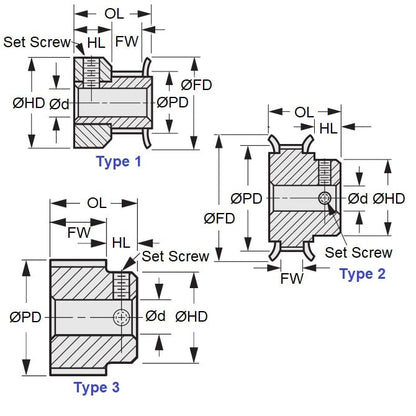

Product Details
Number of Teeth: 14Aluminium
- Number of Teeth: 14
- Max Belt Width: 15.00mm
(15.00mm is 0.591 in.)
- Bore (d): 6.000mm
(6.000mm is 0.236 in.)
- Bore Type: Finished
- Locking Type: Set Screw
- Type: 3
- Pitch Dia. (PD): 22.27mm
- Overall Length: 26.2mm
- Hub Diameter (HD): 12.7
Brand: MBA
Country of Origin: IN
Product Compliance and Data
Similar to
- Gates® 14-5M15M6A6
- A6A25M014NF1506
- 145M15M6A6
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
P050H014150PALG060, P050H014
