PSP-120-030-S2 (10 Pcs)

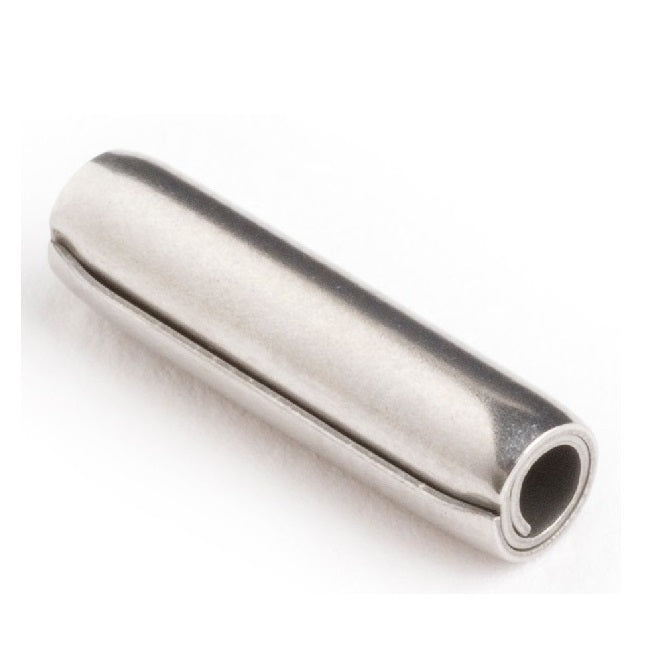

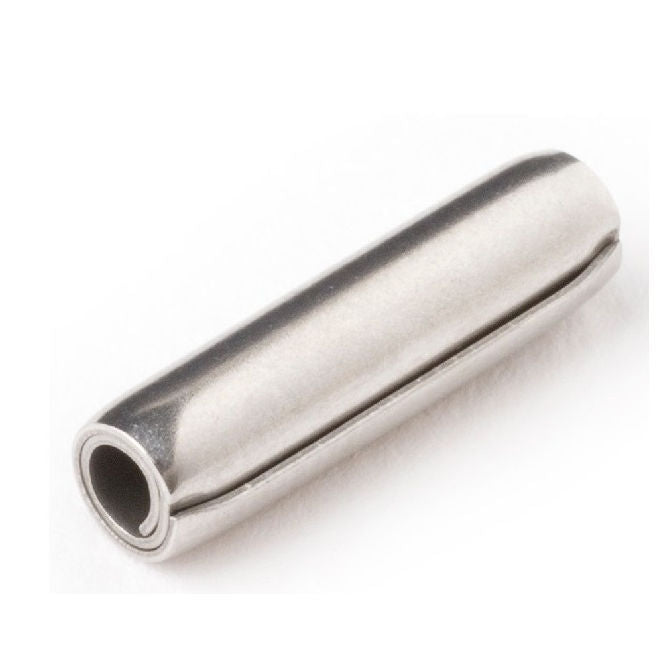

Coiled Pins - 12x30 - 12.00 - 12.18 - Stainless Steel 304 Similar to A2, 18-8 HRB80

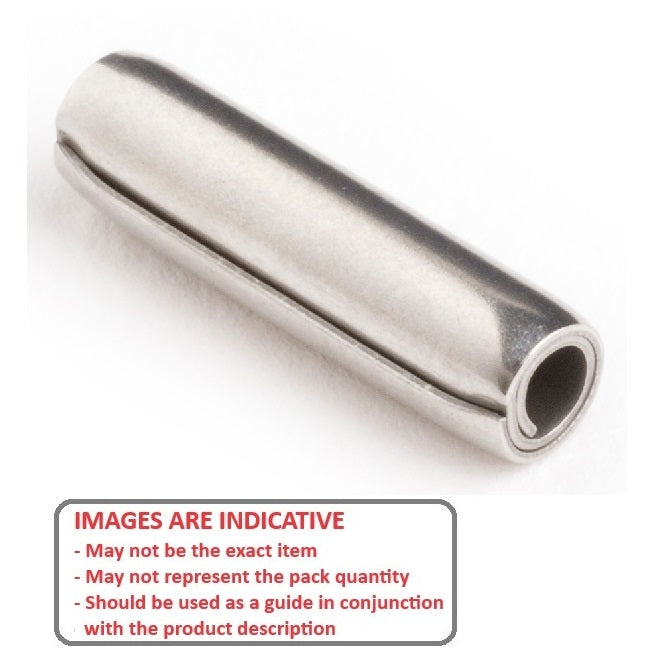

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 12x30 - 12.00 - 12.18 - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$3.00 AUD
$5.70 AUD $3.00 AUD
per 10
Qty: 10 packs (100 pcs) available now
Only 10 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Stainless - Standard Duty

Product Details:

Nom. Hole Diameter: 12.00mm
(12.00mm is 0.472 in.)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Length: 30.00mm
    +/- 0.50
    (30.00mm is 1.181 in.)
  • Drill Size: 12.00 - 12.18mm
    (12.00 - 12.18mm is 0.472 in.)
  • Loose Diameter: 12.40 - 12.85mm
  • ISO: Standard Duty ISO8750 / ASME B18.8.3M
  • Hardness: Unhardened

Brand: MBA
Country of Origin: DE

Alternative Parts Include: SPCM3120030, SPCM3-120-030, EP1230, EP12-30, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
