WRE-0120-RD (PK-50)

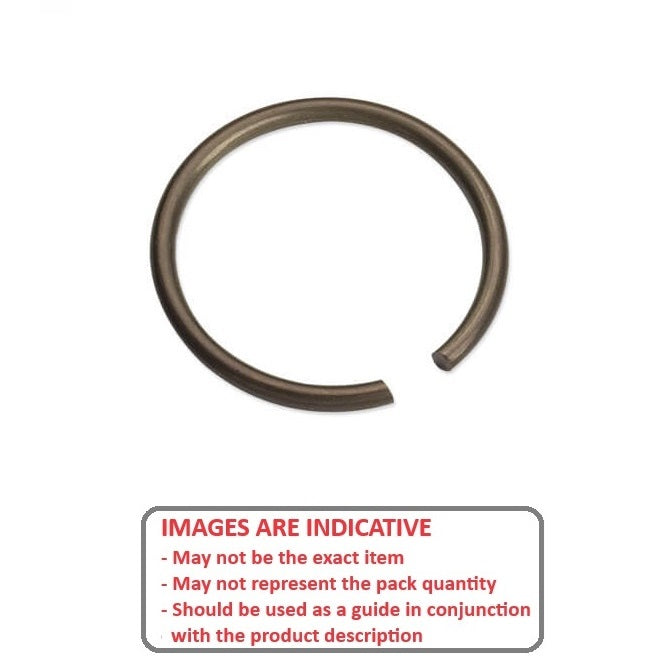

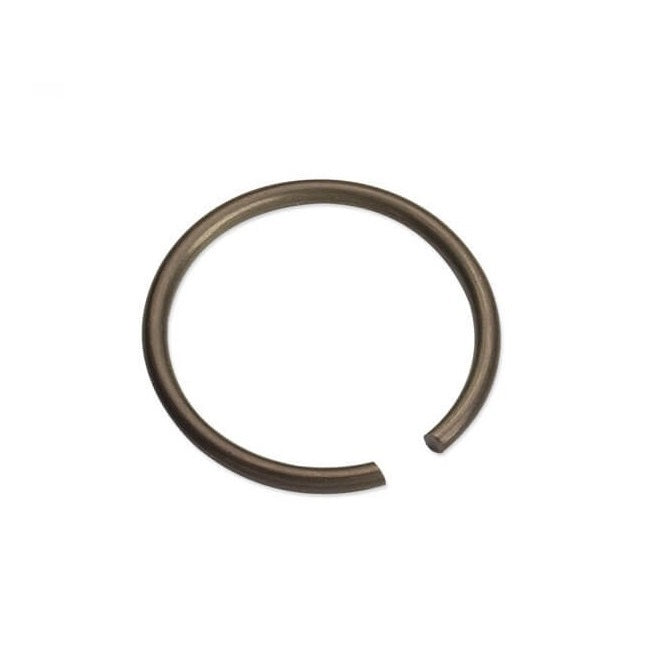

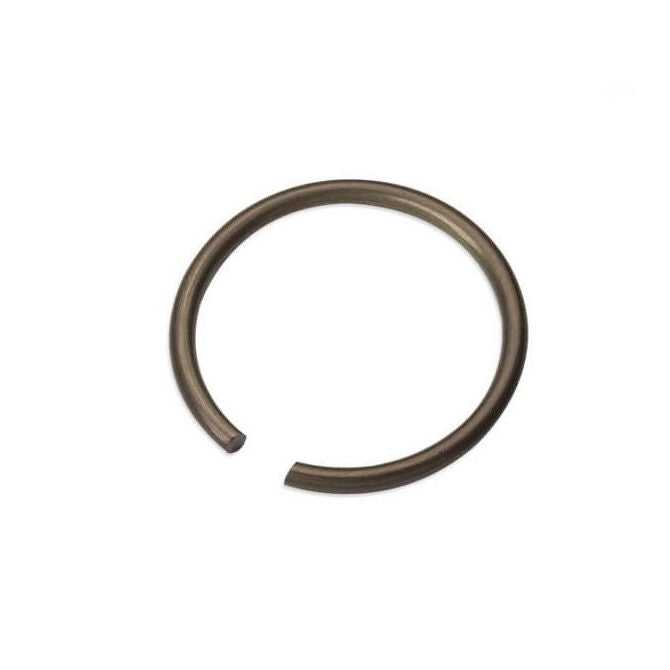

External Retaining Rings - 12x1x11 mm Round Wire - Carbon Spring Steel Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 12x1x11 mm - Spring Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Price:
$11.41 AUD
$11.41 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
 Qty: 8 packs (400 pcs) available now

Order 50 or more packs (2500 pcs)
for $10.27 AUD per 50
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 04, 2026

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Round Wire

Product Details


Additional stock available from USA subject to Prior Sale = 2517

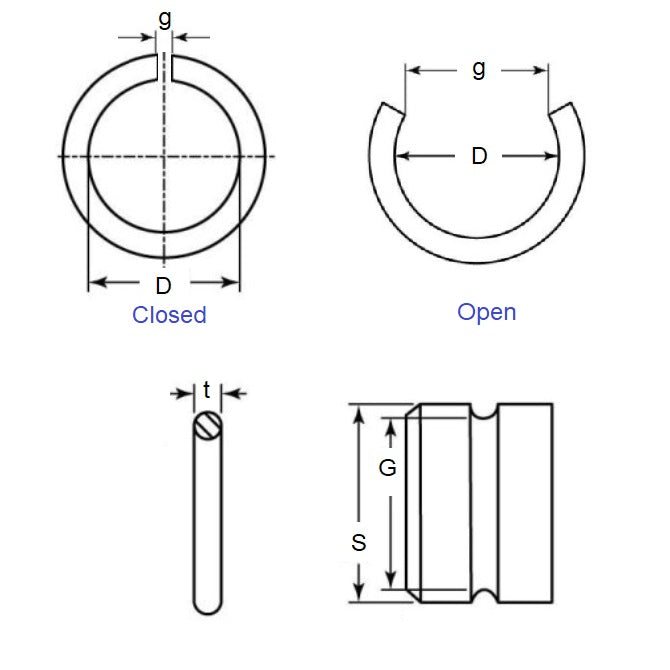

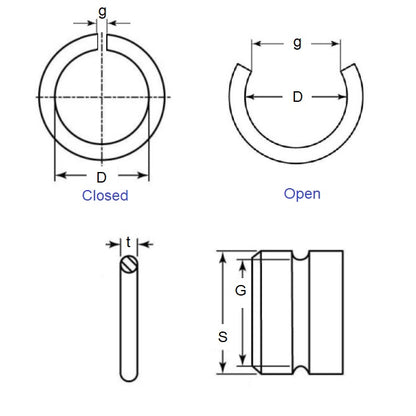

Shaft Diameter (Ds): 12.00mm
(12.00mm is 0.472 in.)

Carbon Spring Steel
  • Shaft Diameter (Ds): 12.00mm
    (12.00mm is 0.472 in.)
  • Clip Thickness (T): 1.00mm
    (1.00mm is 0.039 in.)
  • Groove Dia. (Dg): 11.0mm
    + 0 / - 0.40
    (11.0mm is 0.433 in.)
  • Approx. Loose Circlip ID (A): 10.8mm
  • Radial Wall (S) Approx.: 11.0mm
    +/- 0.05
  • Groove Width (W): 1.2mm
    Min.
  • Free Outside Dia (Dr): 12.8
  • Section Profile: Round Section

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Huyett® DRP-012
  • NoCor® DRP-012
  • DRP012

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
