B-010T-0125-0030-PKB

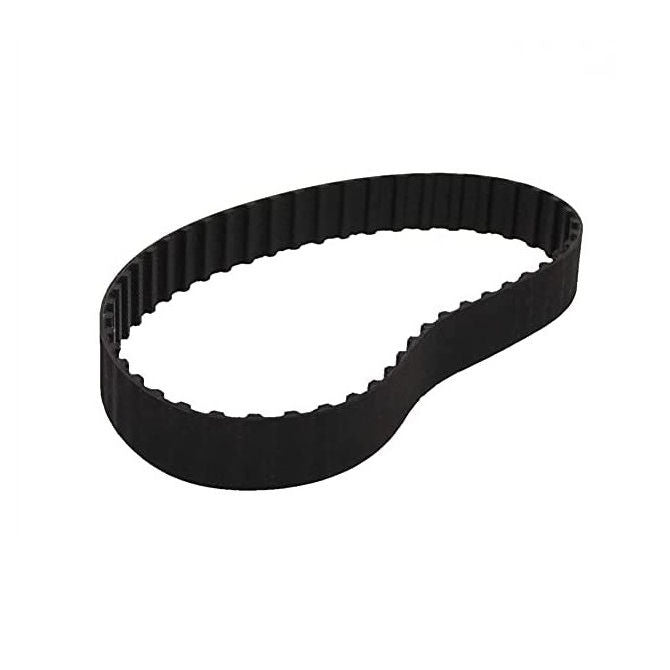

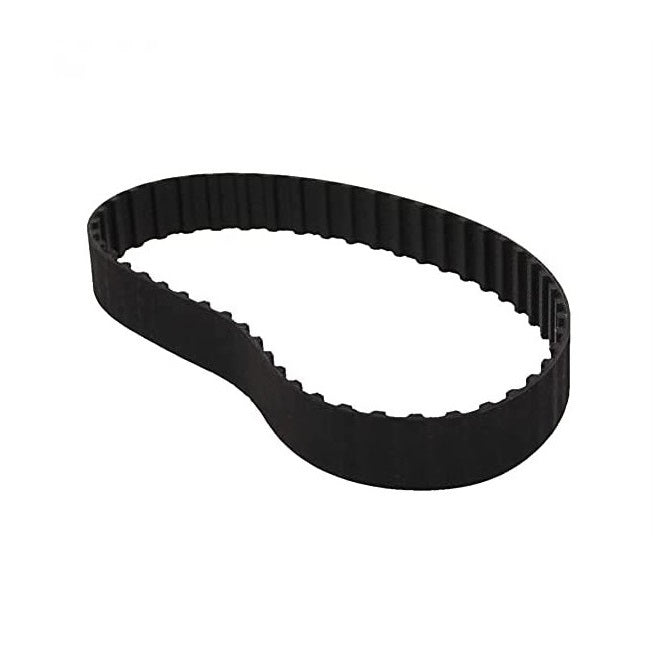

Timing 1mm Pitch T01M 3mm Wide Belts - 125 tooth - 125x3 mm - Polyurethane with Kevlar Cords Belt

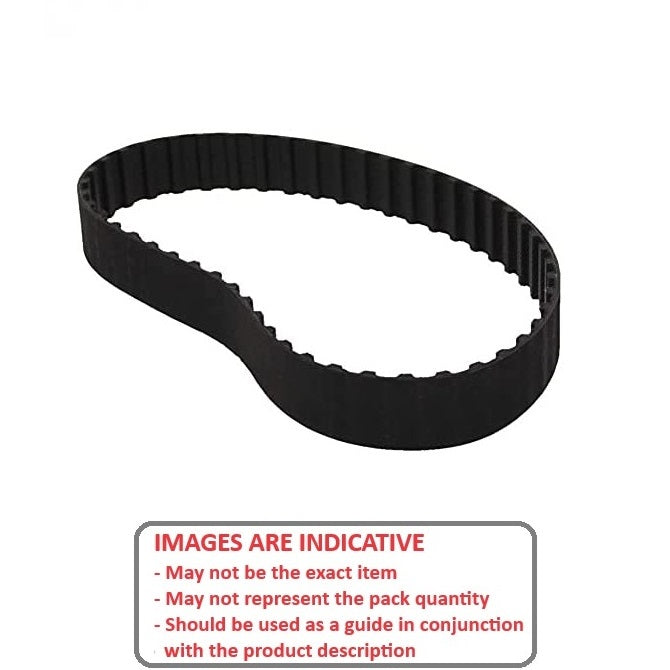

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Timing 1.000mm Pitch T01M 3mm Wide Belts - 125 tooth - 125x3 mm - Polyurethane with Kevlar Cords
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
1mm Pitch Timing Pulleys
Price:
$18.00 AUD
$34.20 AUD $18.00 AUD
Each
Qty: 6 available now
Only 6 may be ordered online. If you need a large quantity, please contact us.

Base Category: Belts - Timing 1.000mm Pitch T01M 3mm Wide

Top Level Category: Belts - Timing 1.000mm Pitch T01M 3mm Wide

Product Details

Number of Teeth: 125

Polyurethane with Kevlar Cords
  • Length: 125mm
    (125mm is 4.921 in.)
  • Width: 3.0mm
    (3.0mm is 0.118 in.)
  • Reinforcement: Kevlar
  • Appearance: Black
  • Breaking Strength: 900N
  • Min Temperature (C): 30Deg C
  • Max Temperature (C): 85Deg C

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • A 6B18M125030
  • A6B18M125030

Used for

  • Turntable Parts
  • CEC - Analogue (Check Size compatibility) - Anti-Skidding Belt

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
