CLP-127-0575-S4 (Each)

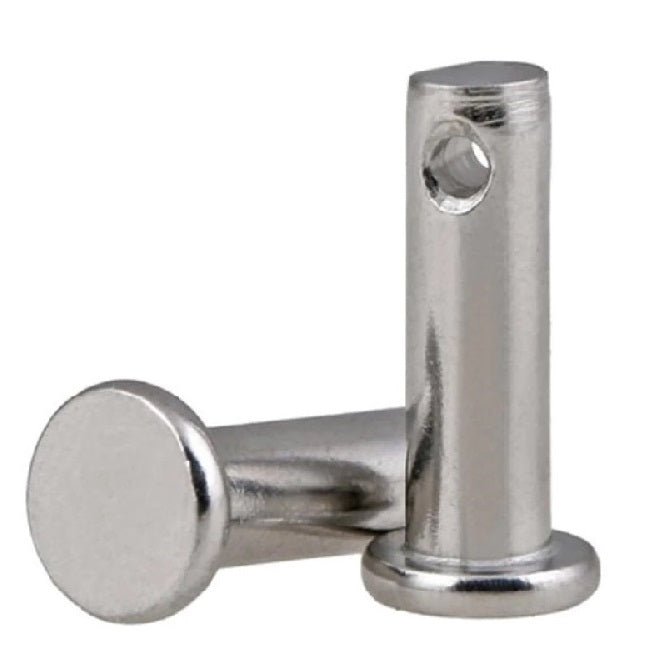

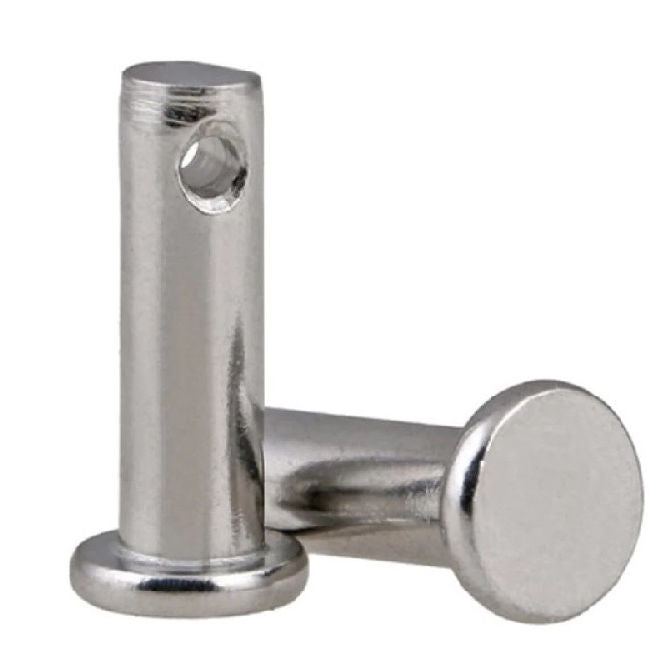

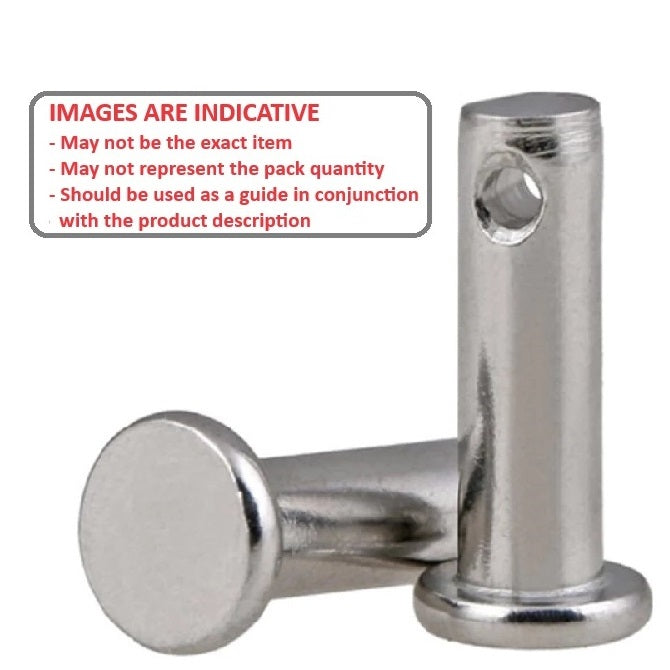

Clevis Pins - 12.7x57.54x63.5 mm Pin Locking - Stainless Steel 300 Series
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
R-Clips
Split Pins
Order 50 or more
for $13.46 AUD Each
Couldn't load pickup availability
1/2x2x2-1/2 inch Pin - 12.7x57.54x63.5 mm Clevis Pins - Stainless Steel 300 Series - Sold per Each:
Base Category: Pins - Clevis
Top Level Category: Pins - Clevis - Pin Locking - Stainless Steel 300 Grade
Product Details

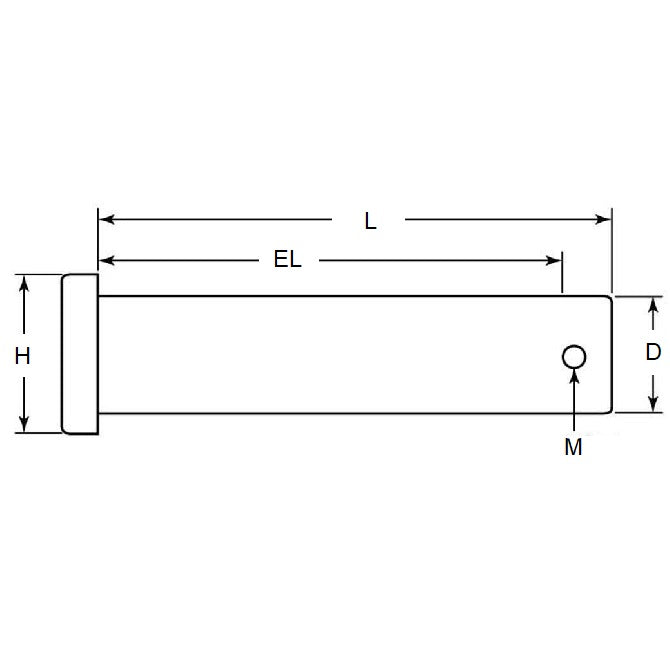

Nominal Pin Diameter (D): 12.70mm- 0.10 / - 0.23
(12.70mm is 0.5 in.)
Stainless Steel 300 Series
- Nominal Pin Diameter (D): 12.70mm
- 0.10 / - 0.23
(12.70mm is 0.5 in.)
- Grip Length (EL): 57.54mm
+ 0.51 / - 0.00
(57.54mm is 2.265 in.)
- Nom. Length (L): 63.50mm
+ 0.51 / - 0.00
(63.50mm is 2.5 in.)
- Ret. Pin Dia. (M): 3.8mm
- Suitable R-Clip: RCL-032-065-S4
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 92390A391
- Reid Tool® CLP-176S
- NoCor® CLPS-0500-2500
- CLP176S
- CLPS05002500
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CLP1270575S4, CLP127
