P-R12216-AGL (Each)

Name: Plastic Bearings - 12.7x34.925x11.113 mm - Acetal with Glass Balls Bearing - P-R12216-AGL
Brand: KMS
SKU: PR12216AGL
Price: 23.14 AUD
Availability: BackOrder

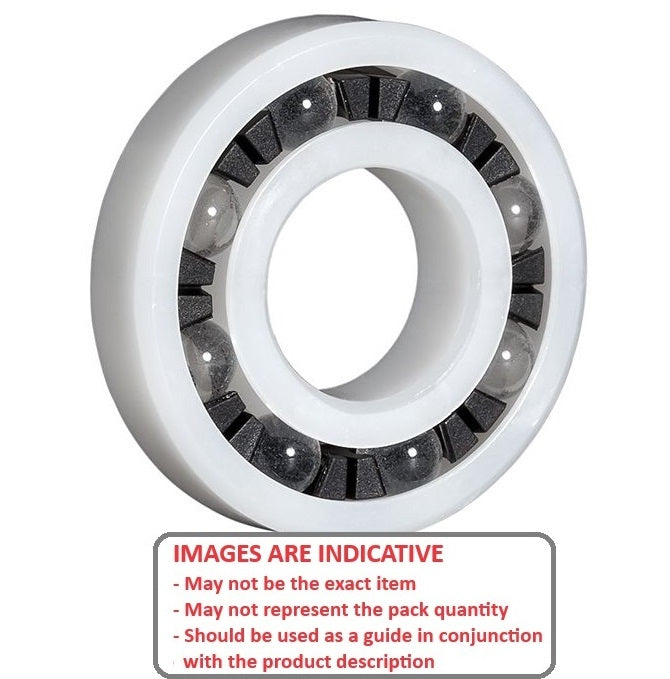

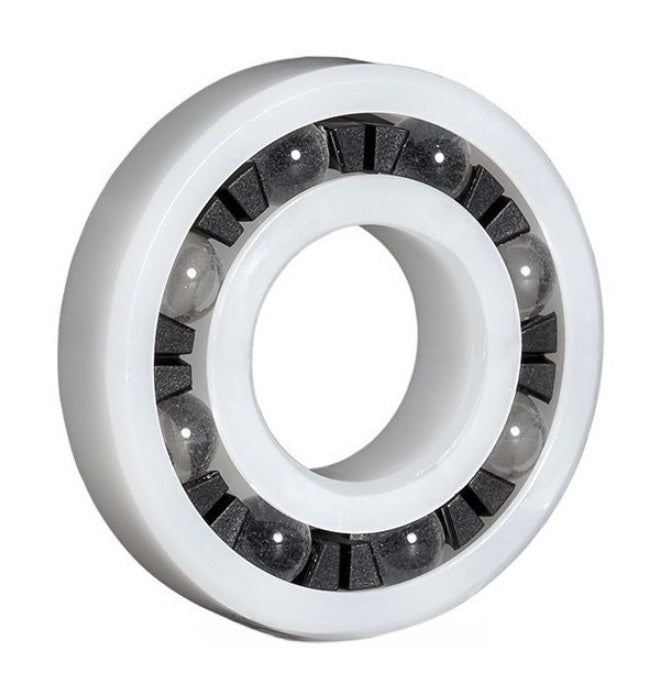

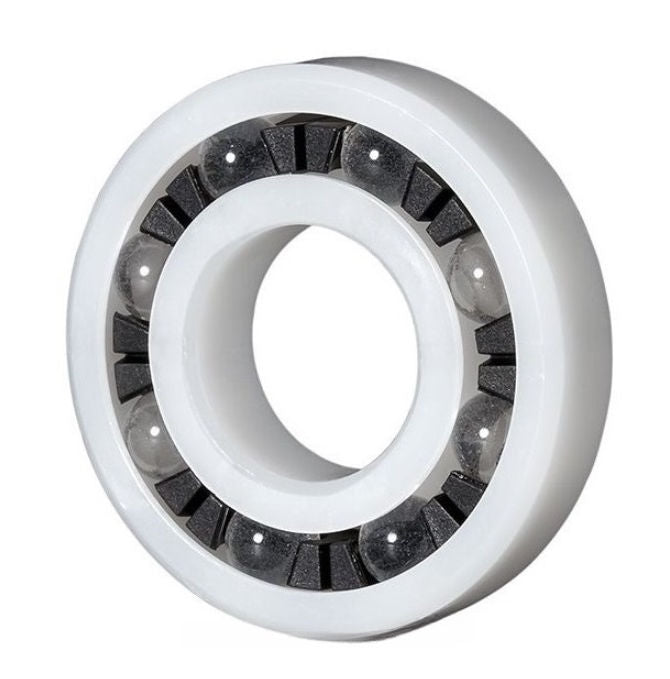

Plastic Bearings - 12.7x34.925x11.113 mm - Acetal with Glass Balls Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Plastic - Acetal - Single Row - Glass Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$23.14 AUD

~~$27.76 AUD~~ $23.14 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more
for $20.83 AUD Each

Product Details

ID (d): 12.700mm
_{+ 0.076 / - 0.000}
_{(12.700mm is 0.5 in.)}

Acetal with Glass Balls

ID (d): 12.700mm
_{+ 0.076 / - 0.000}
_{(12.700mm is 0.5 in.)}
O.D. (D): 34.925mm
_{+ 0.000 / - 0.102}
_{(34.925mm is 1.375 in.)}
Width (B): 11.113mm
_{+ 0.127 / - 0.000}
_{(11.113mm is 0.438 in.)}
Max RPM in Air: 1064
Notes: Unlubricated
Type: Radial
Dynamic Load Rating: 37.9Kg
Static Load Rating: 30.4Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
6455K74
KMS AR10B-1/2B-G
KMS AR10B-1-2B-G
Reid Tool® NNB-14
R12216
NNB14
AR10B12BG
AR10B1/2BG
AGLR12216

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
