P-FR8A-AS6

Name: 1101867 | P-FR8A-AS6 --- Plastic Bearings - 12.7x28.575x7.938 mm / 31.12 mm - Acetal with Stainless 316 Balls
Brand: KMS
SKU: PFR8AAS6
Price: 28.23 AUD
Availability: BackOrder

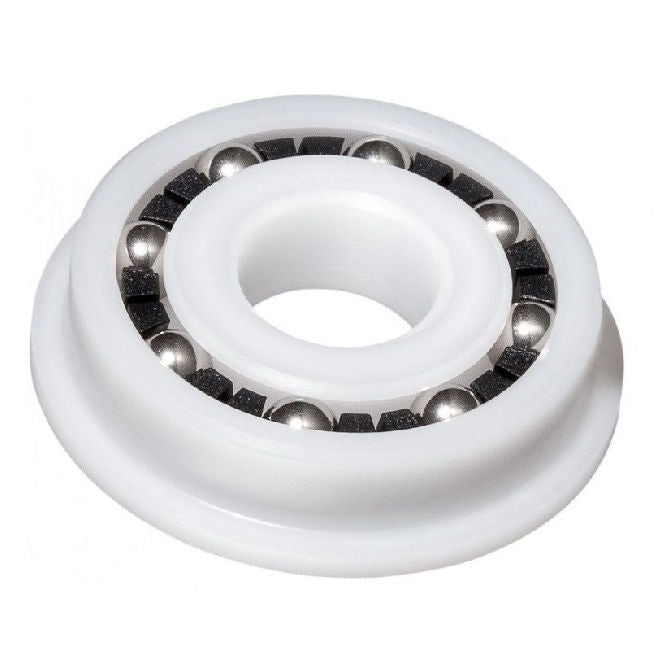

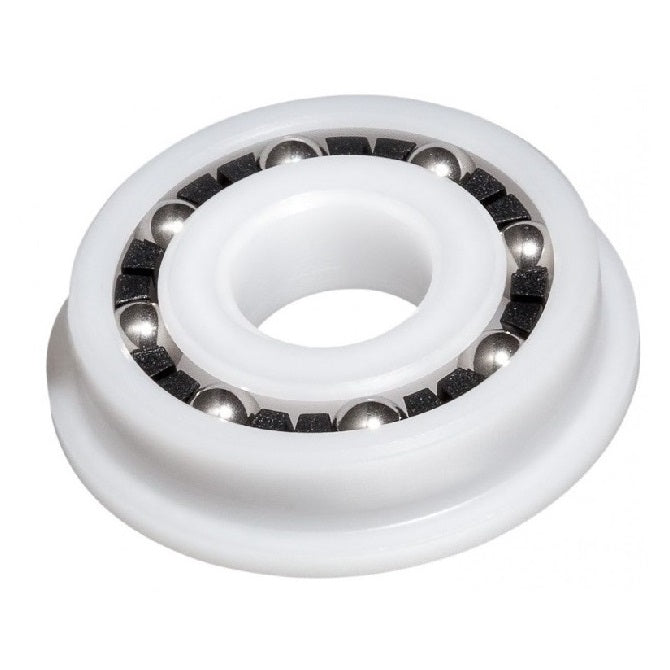

Plastic Bearings - 12.7x28.575x7.938 mm / 31.12 mm - Acetal with Stainless 316 Balls

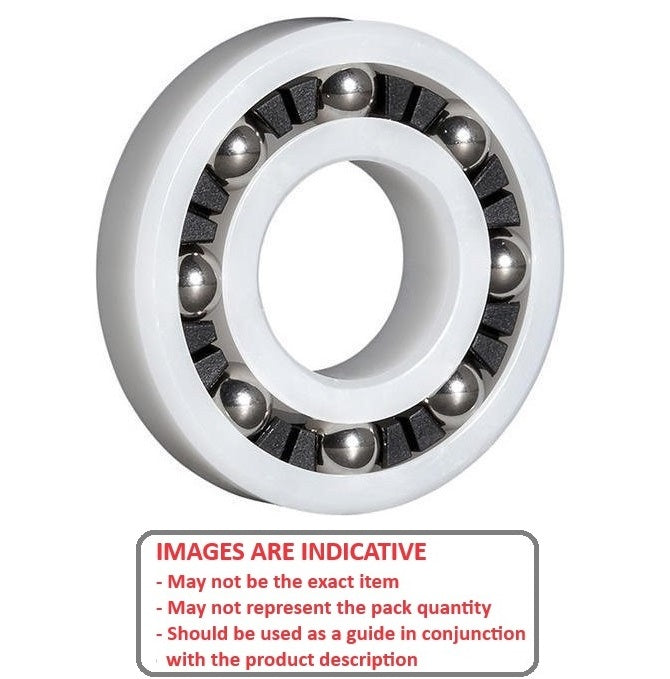

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale

Category: Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$28.23 AUD

~~$33.87 AUD~~ $28.23 AUD

Each
Backorder
Order 50 or more for $25.41 AUD Each

Backorder now! Backorders for more than the stock quantity are expected before Sep 05, 2025

Quantity

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls

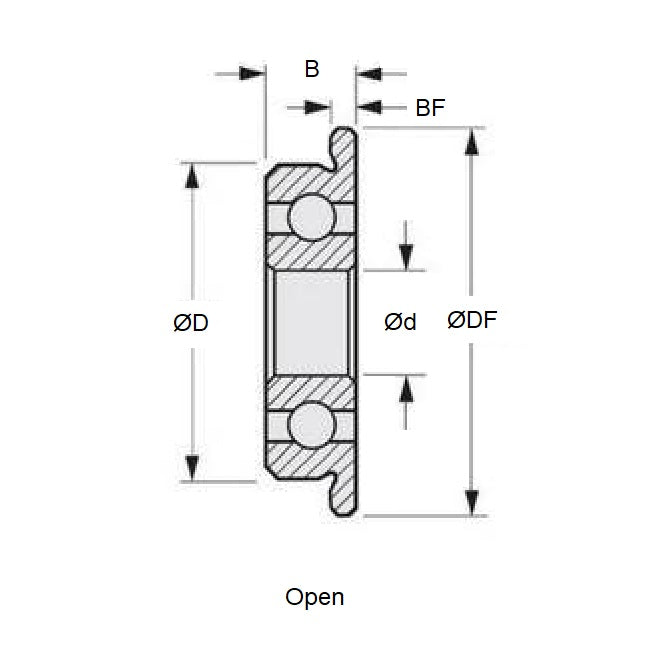

Product Details:

ID (d): 12.700mm
_{+ 0.076 / - 0.000}
_{(12.700mm is 0.5 in.)}

Acetal with Stainless 316 Balls

OD (D): 28.575mm
_{+ 0.000 / - 0.102}
_{(28.575mm is 1.125 in.)}
Width (B): 7.938mm
_{+ 0.127 / - 0.000}
_{(7.938mm is 0.313 in.)}
Flange Diameter: 31.120mm
Flange Thickness: 1.58mm
Max RPM in Air: 1142
Notes: Unlubricated
Type: Radial Flanged
Dynamic Load Rating: 24.9Kg
Static Load Rating: 19.5Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

KMS AR8AF-1/2B-6
AR8AF1/2B6
FR8A

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
