CP-127-127-29-028-H-PA

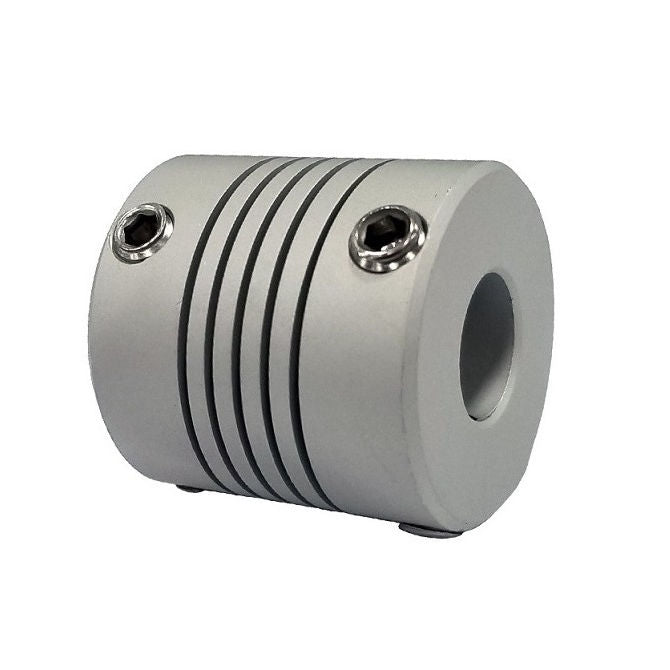

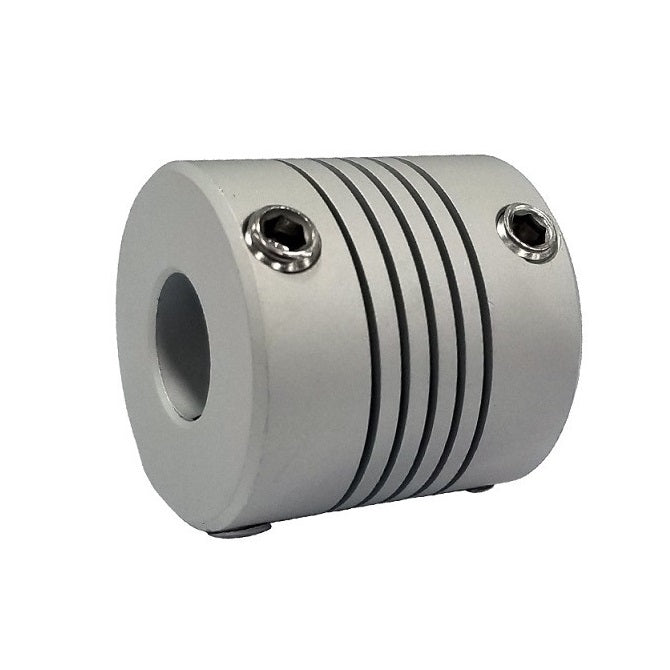

Helical Couplings - 12.7x12.7x28.575 mm Standard - Aluminium 7075-T6

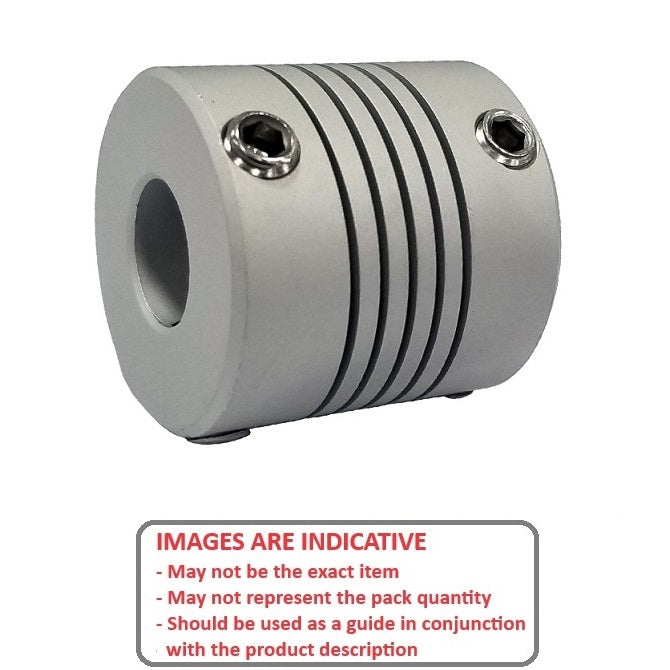

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Helical Couplings - 12.7x12.7x28.575 mm - Aluminium 7075-T6
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale
Price:
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Couplings - Helical

Top Level Category: Couplings - Helical - Standard

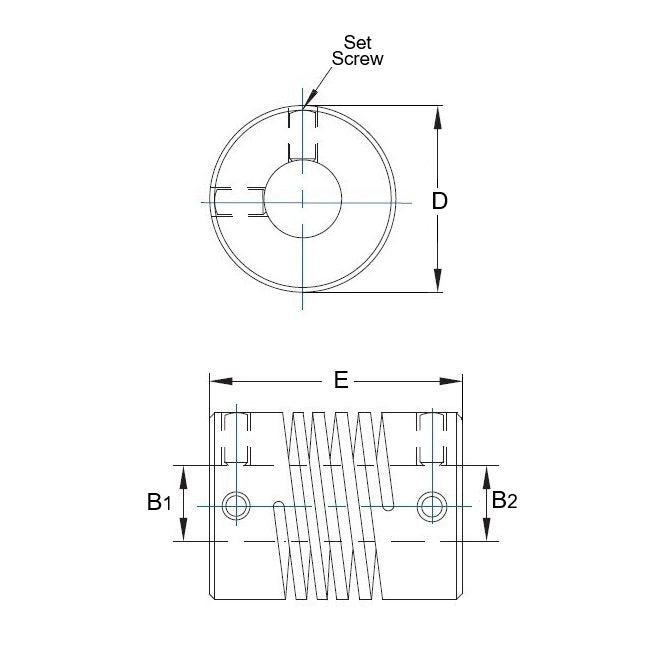

Product Details:

Bore (B1): 12.700mm
(12.700mm is 0.5 in.)

Aluminium 7075-T6
  • Bore (B2): 12.700mm
    (12.700mm is 0.5 in.)
  • OD (D) / Clearance Dia (H): 28.575mm
    (28.575mm is 1.125 in.)
  • Length (L): 28.448mm
  • Max. Momentary Dyn. Torque: 1.6N.m
  • Hub Config/Hub Diameter: Set Screw / 28.575mm
  • Torsional Flexibility: 172.3Arc.Min / N.m

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: S50HAA112P1616, S50HAA-112P1616

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
