ECB-0101-0127-C (PK-5)

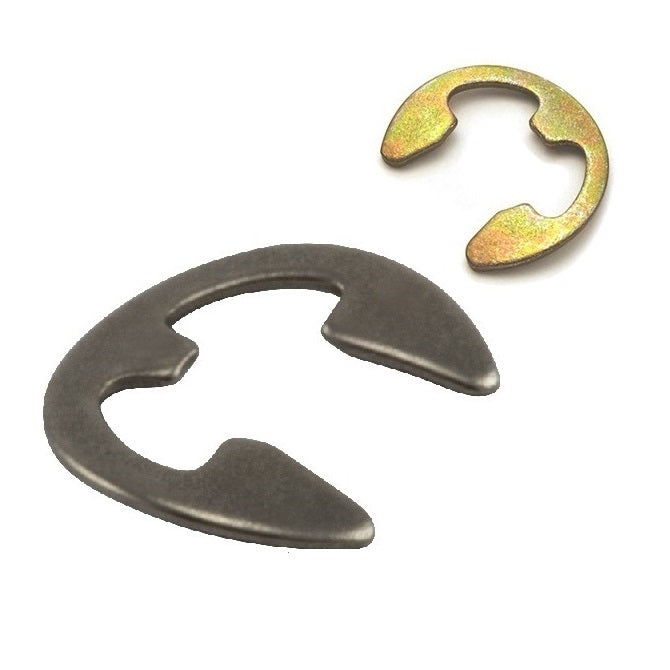

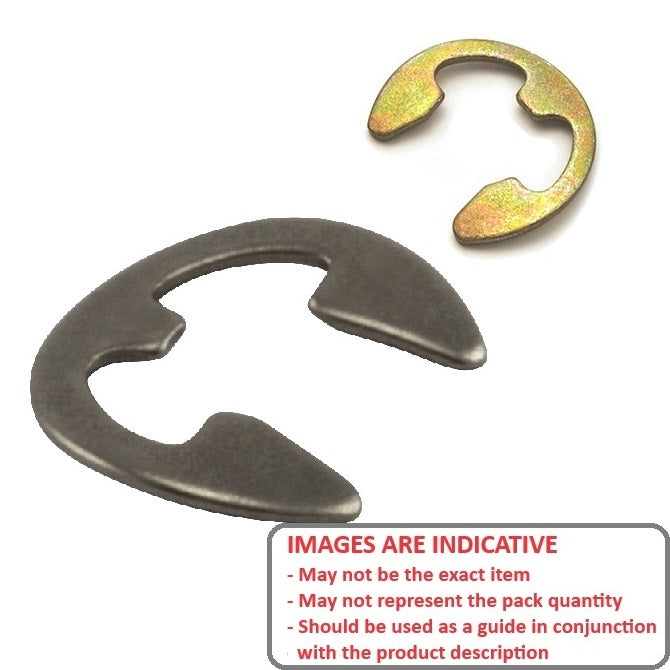

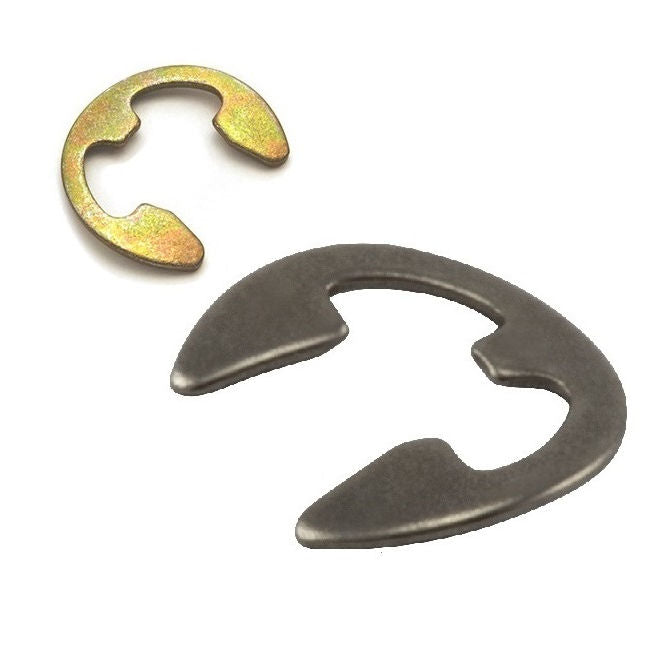

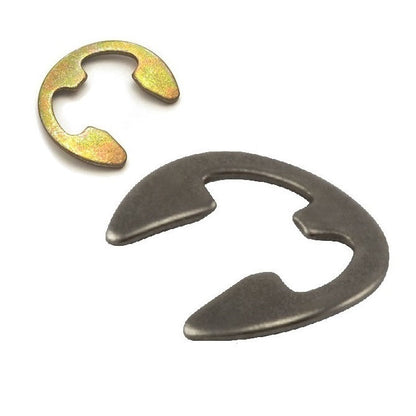

E-Clips Retaining Rings - 12.7x10.06x1.07 mm Bowed - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Order 50 or more packs of 5 (250 pcs)
for $3.31 AUD per 5 pack
1/2 inch E-Clip - 12.7x10.06x1.07 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 5:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Bowed

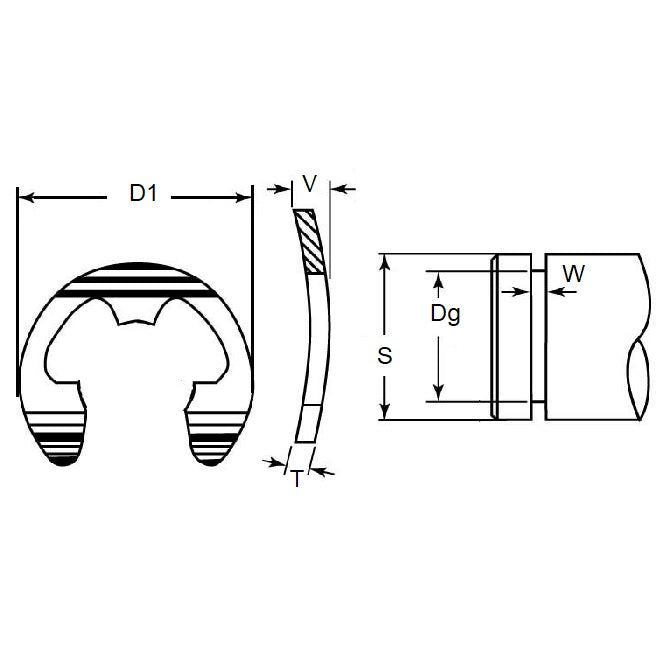

Product Details
Minimum Rec. Shaft Dia (S): 12.70mm(12.70mm is 0.5 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 12.70mm
(12.70mm is 0.5 in.)
- Groove Dia. (Dg): 10.06mm
+ 0.076 / - 0.000
(10.06mm is 0.396 in.)
- Clip Thickness (T): 1.07mm
+/- 0.051
(1.07mm is 0.042 in.)
- Clip OD Loose (D1): 20.32mm
- Groove Width (W): 1.24mm
- Ring Width (X): 1.85mm
- Force Required to Flatten: 40.2kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98398A138
- N1501-0050
- N15010050
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECB01010127C, ECB0101
