ECL-0101-0127-C (PK-20)

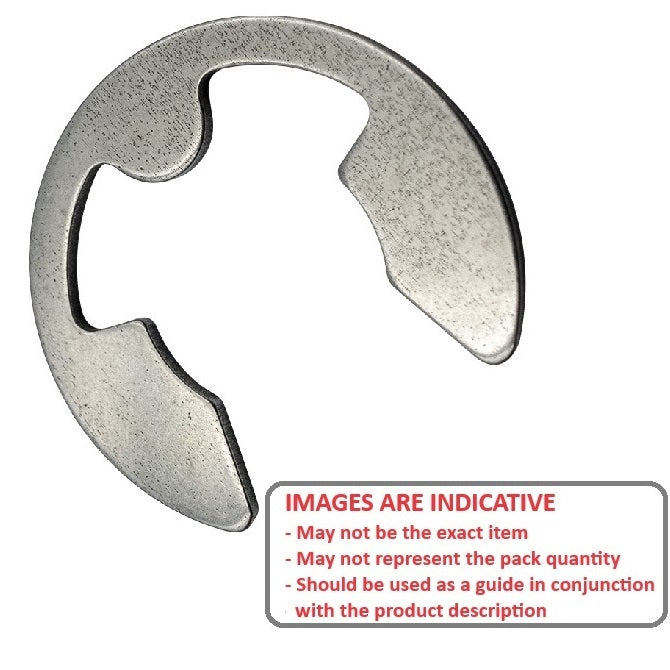

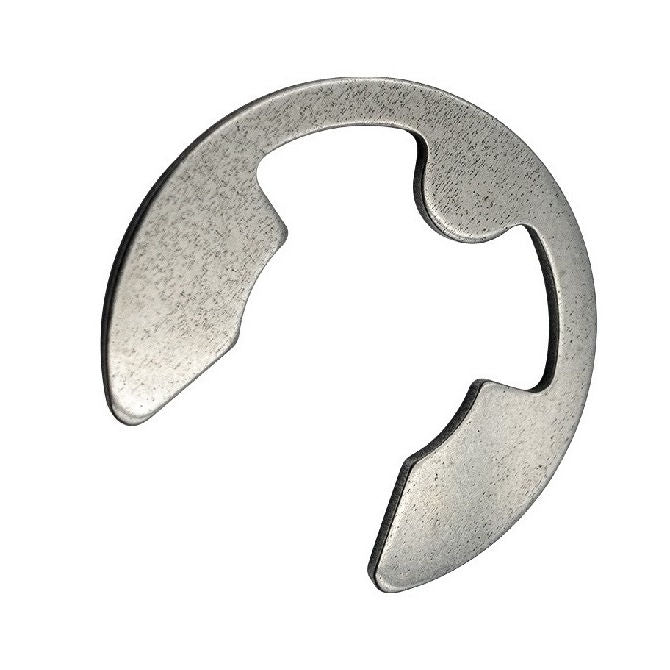

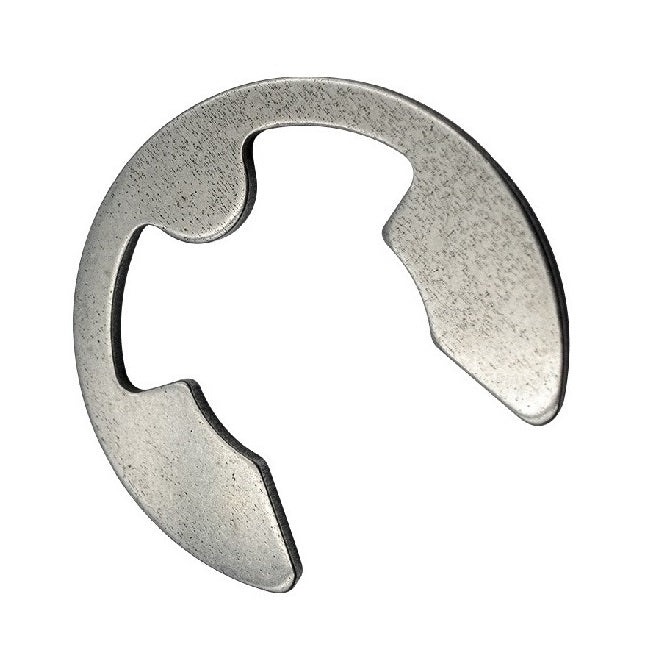

E-Clips Retaining Rings - 12.7x10.06x1.07 mm Basic - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 20 (1000 pcs)
for $11.57 AUD per 20 pack
1/2 inch E-Clip - 12.7x10.06x1.07 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 20:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 4262

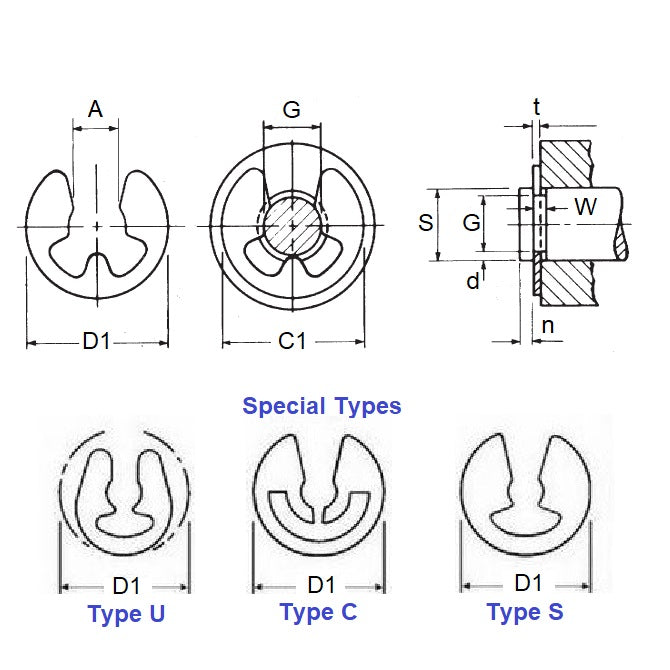

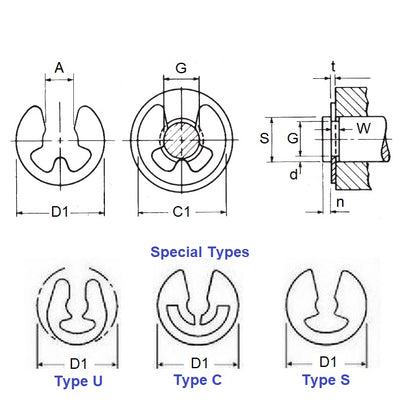

Minimum Rec. Shaft Dia (S): 12.70mm
+ 3.05 / - 0.00
(12.70mm is 0.5 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 12.70mm
+ 3.05 / - 0.00
(12.70mm is 0.5 in.)
- Groove Dia. (Dg): 10.06mm
+ 0.076 / - 0.000
(10.06mm is 0.396 in.)
- Clip Thickness (T): 1.07mm
+/- 0.050
(1.07mm is 0.042 in.)
- Clip OD Loose (D1): 20.32mm
- Groove Width (W): 1.17mm
- Maximum Rec. Shaft Dia (S): 15.75
- Clip OD in groove (C1): 20.83mm
- Min. Extension (n): 2.00
- Additional Info: RRA-200 Applicator
- Standard: MIL-16633
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- VI 205.0000.0005
- Waldes® 5133-050
- ALTPART
- 97431A340
- Ellison® E-050
- Huyett® E-050
- NoCor® E-050
- RotorClip® E-050
- Small Parts REE-8
- REE8
- S73LW2ER13350
- S73LW2-ER133-50
- N15000050
- N1500-0050
- N1500-050
- N1500050
- E050
- 5133050
- A9Q29-50
- A9Q2950
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL01010127C, ECL0101
