RRN-050-S02 (PK-9)

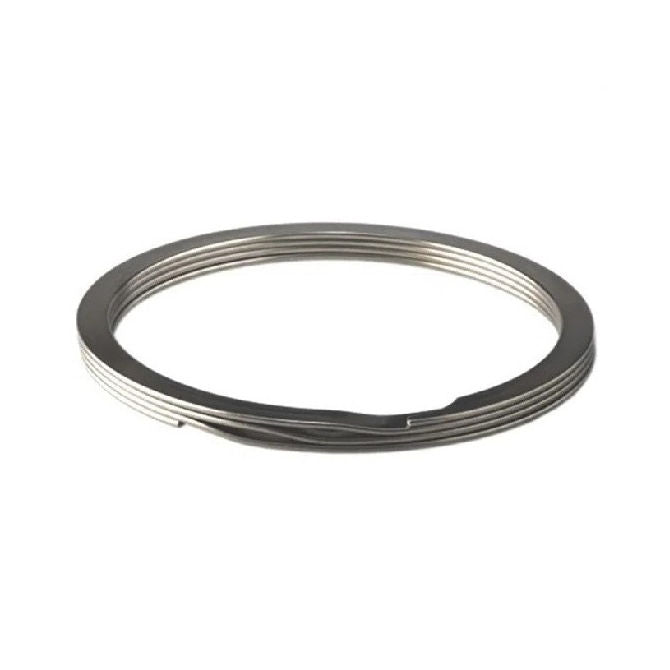

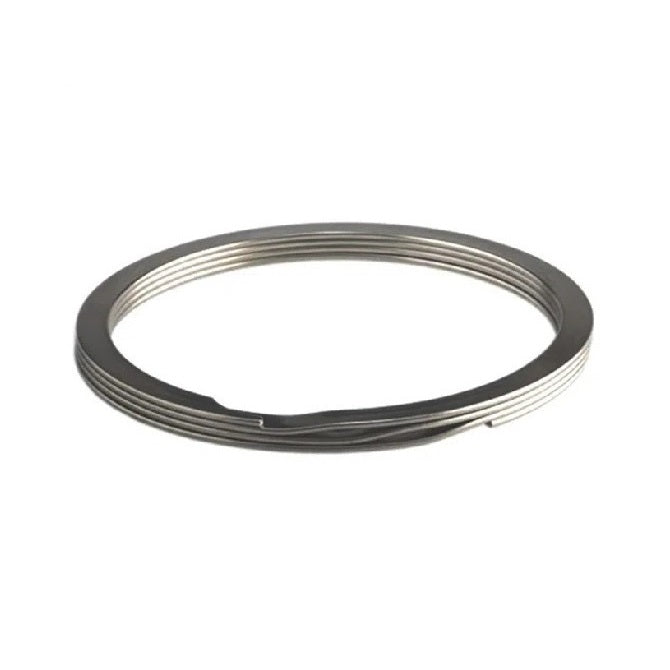

Internal Retaining Rings - 12.7x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring

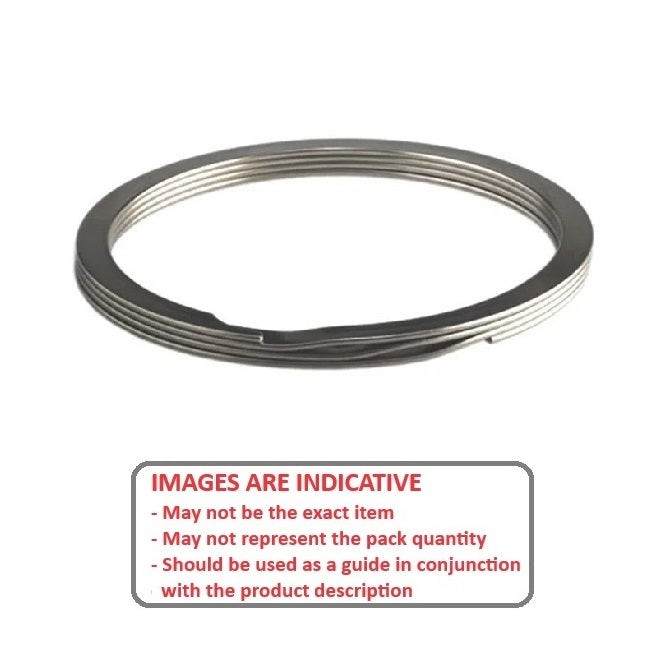

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel 302/304 Similar to A2, 18-8
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Spiral Rings and Snap Rings PDF
Price:
$11.59 AUD
$13.91 AUD $11.59 AUD
Priced, Stocked and Sold Per 9 Units
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more pack (450 pcs)
for $10.43 AUD per 9
Backorder now! Backorders are expected before Apr 21, 2026

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel

Product Details


Additional stock available from USA subject to Prior Sale = 5840

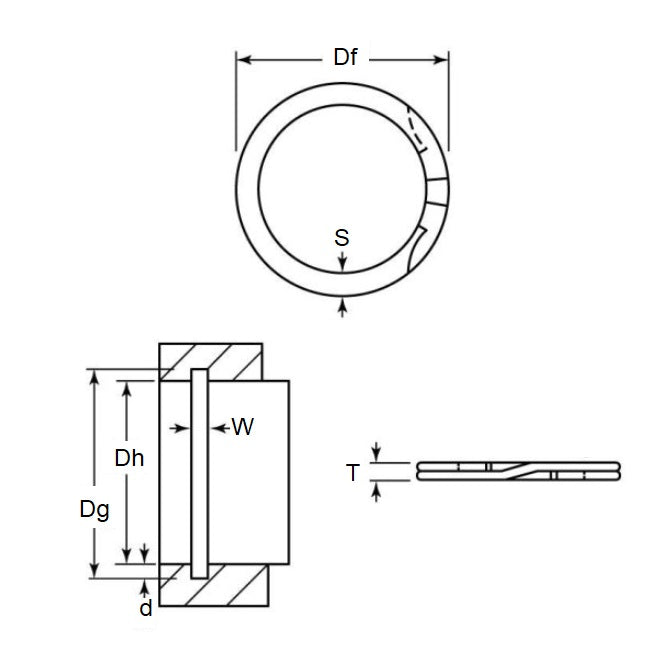

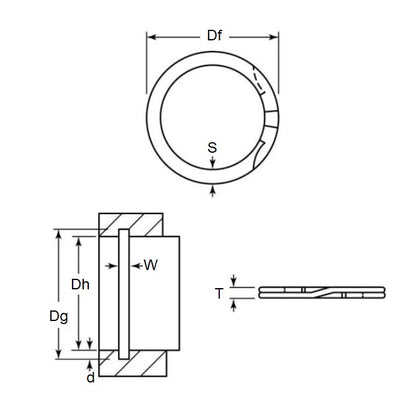

Housing Bore (B): 12.70mm
(12.70mm is 0.5 in.)

Stainless Steel 302/304 (Similar to A2, 18-8)
  • Housing Bore (B): 12.70mm
    (12.70mm is 0.5 in.)
  • Clip Thickness (T): 0.89mm
    +/- 0.05
    (0.89mm is 0.035 in.)
  • Groove Dia. (Dg): 13.46mm
    (13.46mm is 0.53 in.)
  • Approx. Loose Circlip OD (Dr): 13.55mm
    + 0.33 / - 0.00
  • Radial Wall (S) Approx.: 1.14mm
    +/- 0.10
  • Groove Width (W): 1.03mm
    +/- 0.05
  • Approx. Loose Clip ID: 11.27
    +/- 0.04
  • Groove Depth (d): 0.38

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 92370A121
  • Associated Spring® AHI-050-S02
  • Huyett® RRN-050-S02
  • Smalley® WHM-050-S02
  • WHM050S02
  • AHI050S02

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
