RPI-127-128-C (PK-10)

Push In Carbon Steel Retaining Rings - 12.65x12.75x6.55 mm - Carbon Spring Steel Self Finish

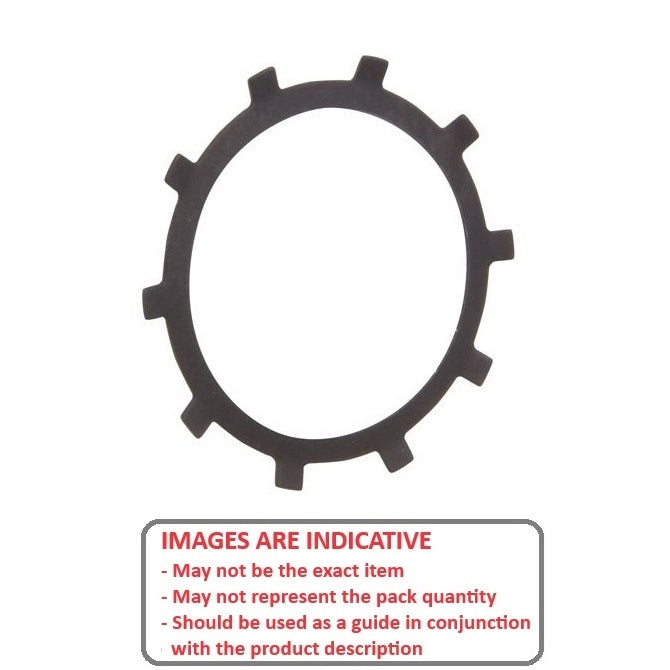

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Push In Carbon Steel Retaining Rings - 12.65x12.75x6.55 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$4.41 AUD
$4.41 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
 Qty: 28 packs (280 pcs) available now

Order 50 or more packs of 10 (500 pcs)
for $3.97 AUD per 10 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 04, 2026

1/2x1/2 inch Ring - 12.65x12.75x6.55 mm Push In Carbon Steel Retaining Rings - Carbon Spring Steel Self Finish - Sold per pack of 10:

Base Category: Retaining Rings - Push In Carbon Steel

Top Level Category: Retaining Rings - Push In Carbon Steel

Product Details


Additional stock available from USA subject to Prior Sale = 3481

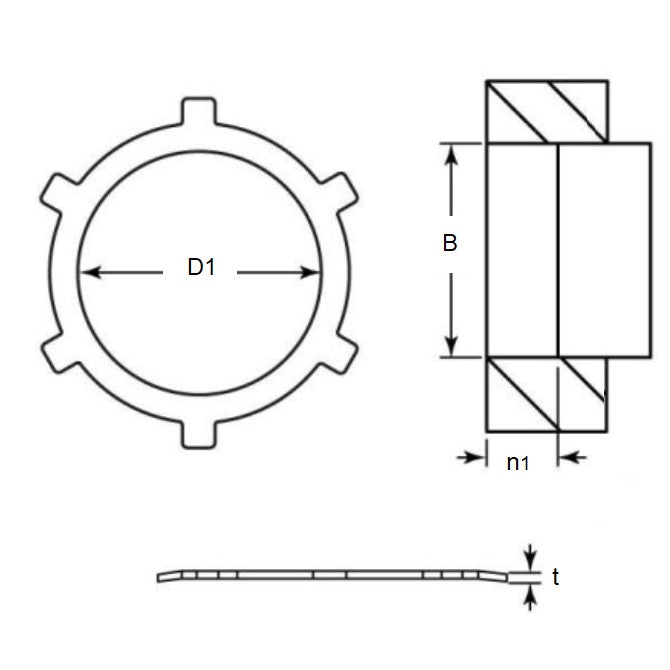

Housing Bore (B) Min: 12.65mm
(12.65mm is 0.498 in.)

Carbon Spring Steel Self Finish
  • Housing Bore (B) Min: 12.65mm
    (12.65mm is 0.498 in.)
  • Housing Bore (B) Max: 12.75mm
    (12.75mm is 0.502 in.)
  • Inside Clearance (D1): 6.55mm
    + / - 0.26
    (6.55mm is 0.258 in.)
  • Thickness (t): 0.25mm
    +/- 0.03
  • Recommended Depth (n1): 1.02mm
  • Thrust Load: 829kg.cm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 98435A138
  • Truarc® C23163
  • Small Parts RSI-8
  • Huyett® TI-050
  • NoCor® TI-050
  • RSI8
  • TI050
  • N1305-0050APP
  • N1305-0050-APP
  • N13050050APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RPI127128C, RPI127
