REF-120-L-CB (PK-10)

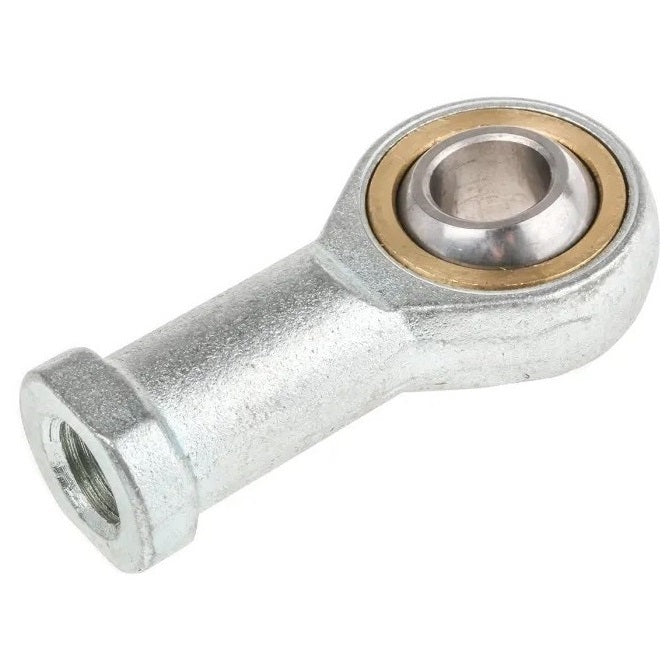

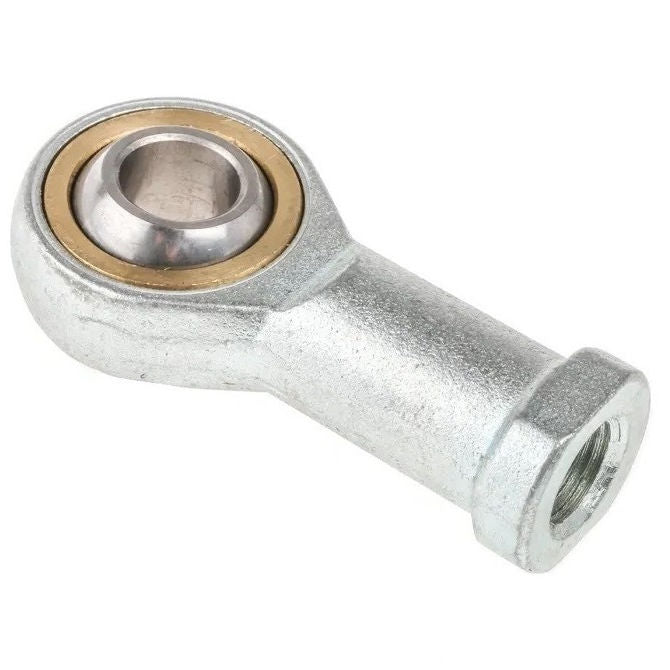

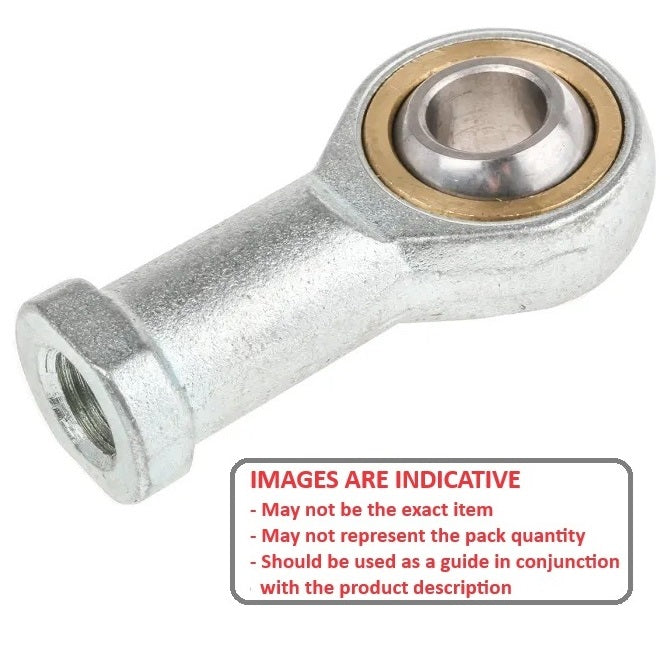

Female Rod Ends - 12x65 mm - M12x1.75 Left - Bronze Lined Steel Rod End
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 10 (500 pcs)
for $120.39 AUD per 10 pack
12x65 mm - M12x1.75 Left Female Rod Ends - Bronze Lined Steel - Sold per pack of 10:
Base Category: Rod Ends - Female
Top Level Category: Rod Ends - Female - Steel - Plain - Bronze Lined

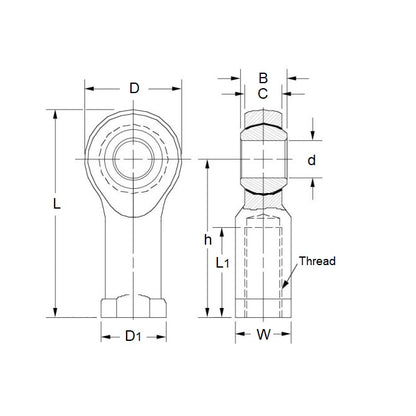

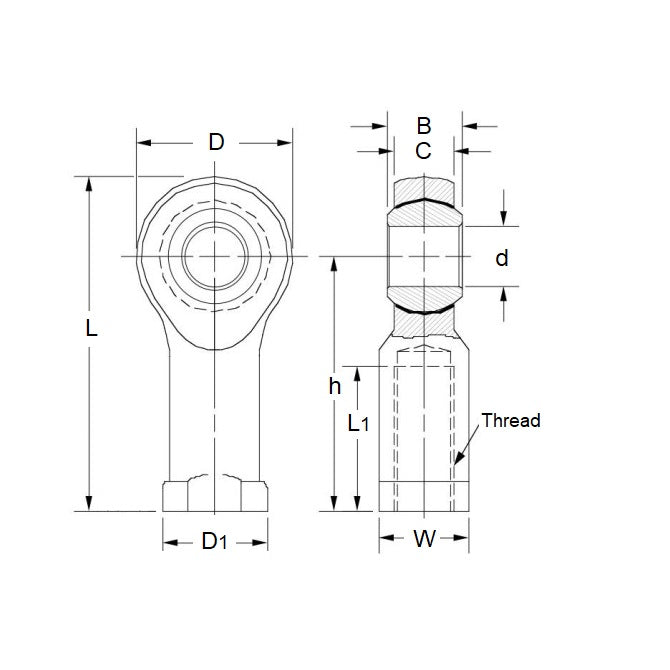

Product Details
Eye Size (d1): 12mm(12mm is 0.472 in.)
Bronze Lined Steel
- Eye Size (d1): 12mm
(12mm is 0.472 in.)
- Overall Length (L): 65.00mm
(65.00mm is 2.559 in.)
- Thread Size (T): M12x1.75 Left
- Thread Length (l2): 24.00mm
- Head Width (W): 12.00mm
- Eye Width (W1): 16.00mm
- Head Diameter (D): 30.00mm
- Centre Height (l1): 50.00mm
- Grease Nipple: Yes
- Body Width/Flange Width(W2/D3): 19.00 / 22.00mm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® E-GYNL12
- ASAHI® JAF12L
- KWK KF12L
- IKO PHS12L
- Nachi® PHS-12L
- NTN® SFI-12L
- SFI12L
- EGYNL12
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REF120LCB, REF120
