UFL001N (Each)

Flanged 2 Bolt Housing and Bearing Assembly - 12x38x63 mm Rigid - Aluminium

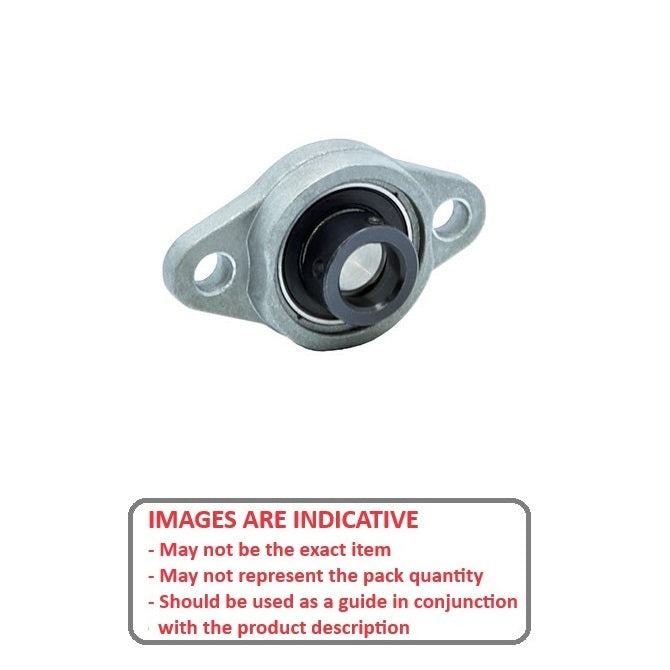

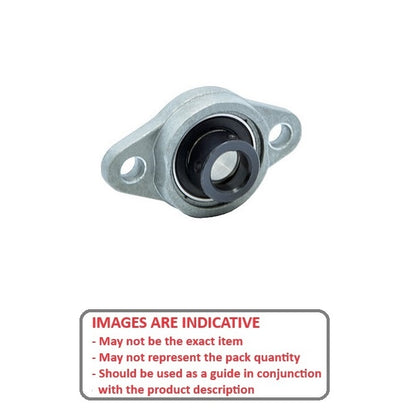

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged 2 Bolt Housing Assembly - 12x38x63 mm - Aluminium
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$13.59 AUD
$13.59 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $12.23 AUD Each
Backorder now! Backorders are expected before Jun 04, 2026

Base Category: Housing and Bearing Assembly - Flanged 2 Bolt

Top Level Category: Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Aluminium

Product Details

Nominal Shaft Size: 12.0mm
(12.0mm is 0.472 in.)

Aluminium
  • Nominal Shaft Size: 12.0mm
    (12.0mm is 0.472 in.)

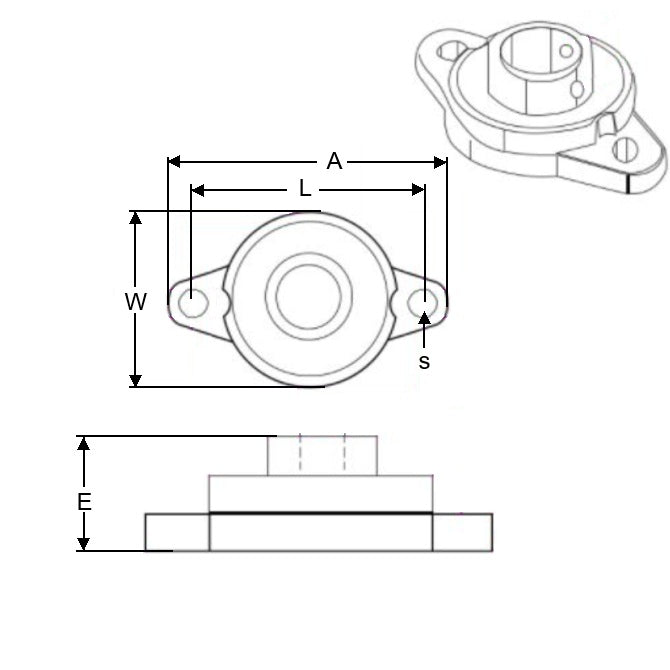

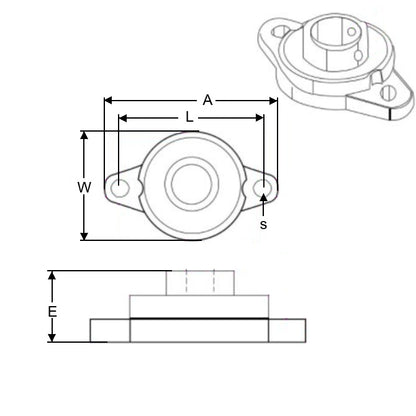

  • Width (W): 38.0mm
    (38.0mm is 1.496 in.)
  • Overall Length (A): 63.0mm
    (63.0mm is 2.48 in.)
  • Overall Height (E): 19.0mm
  • Bolt Hole Size (s): 7.0mm
  • Bolt Hole Centres (L): 48.0mm

Brand: MBA
Country of Origin: TW

Product Compliance and Data
