ECL-0097-0111-C (PK-20)

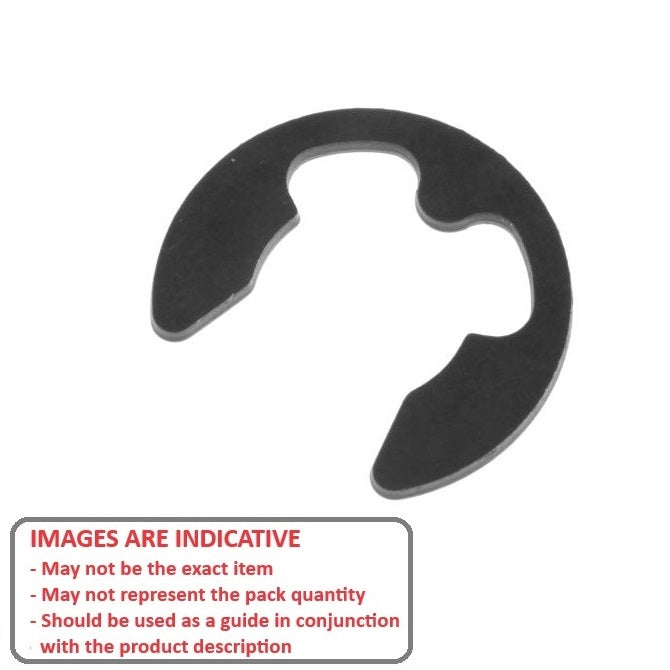

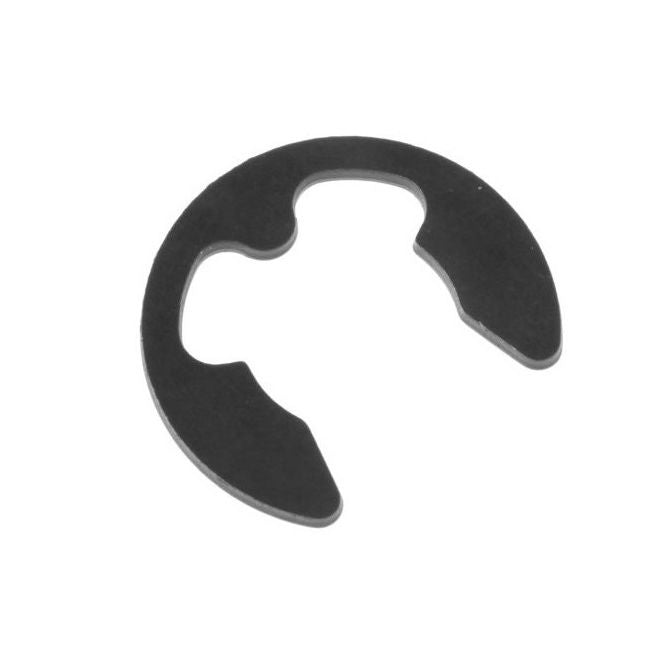

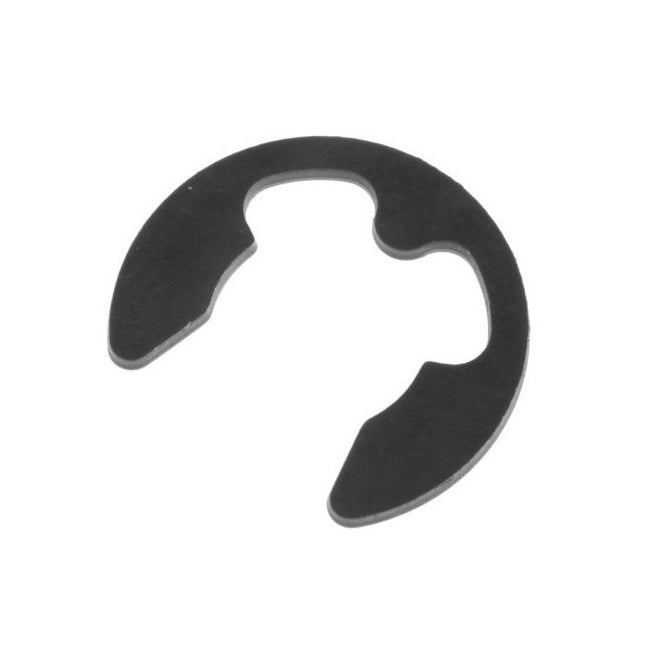

E-Clips Retaining Rings - 11.11x9.65x0.89 mm Basic - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 20 (1000 pcs)
for $2.17 AUD per 20 pack
Couldn't load pickup availability
7/16 inch E-Clip - 11.11x9.65x0.89 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 20:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 6677

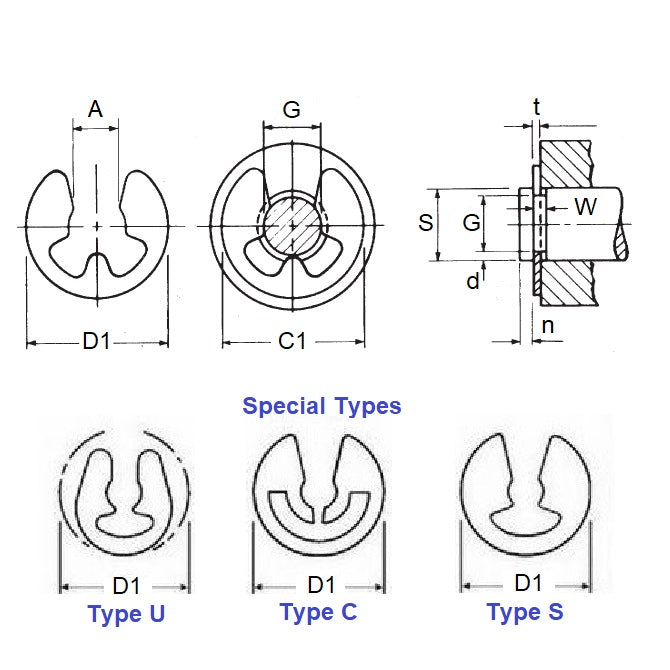

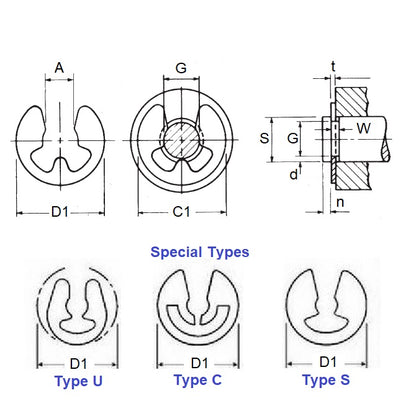

Minimum Rec. Shaft Dia (S): 11.11mm
+ 2.54 / - 0.00
(11.11mm is 0.437 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 11.11mm
+ 2.54 / - 0.00
(11.11mm is 0.437 in.)
- Groove Dia. (Dg): 9.65mm
+ 0.076 / - 0.000
(9.65mm is 0.38 in.)
- Clip Thickness (T): 0.89mm
+/- 0.050
(0.89mm is 0.035 in.)
- Clip OD Loose (D1): 15.24mm
- Groove Width (W): 0.99mm
- Maximum Rec. Shaft Dia (S): 13.65
- Clip OD in groove (C1): 15.75mm
- Loose Clip ID (A): 9.53mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Small Parts REE-7
- Huyett® SE-043
- NoCor® SE-043
- SE043
- REE7
- N1500X043
- N1500-X043
- A9Q29-X43
- A9Q29X43
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00970111C, ECL0097
