BF0100-0150-0160-BS2025LT (PK-20)

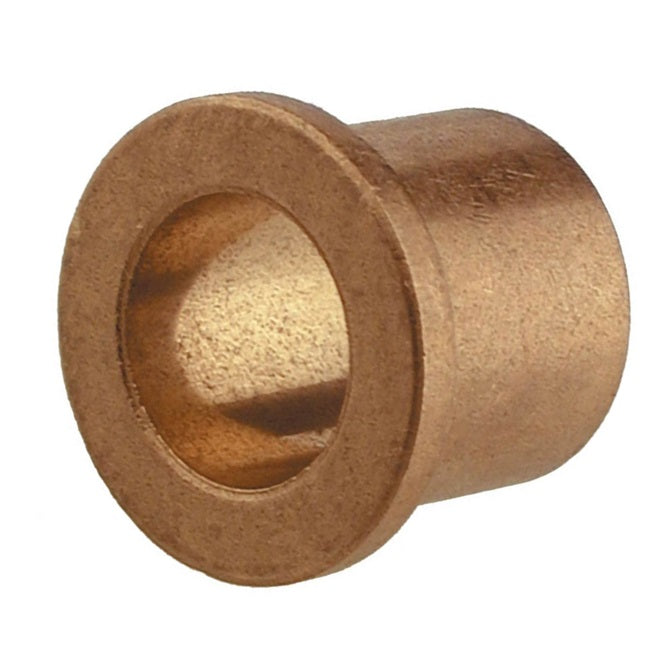

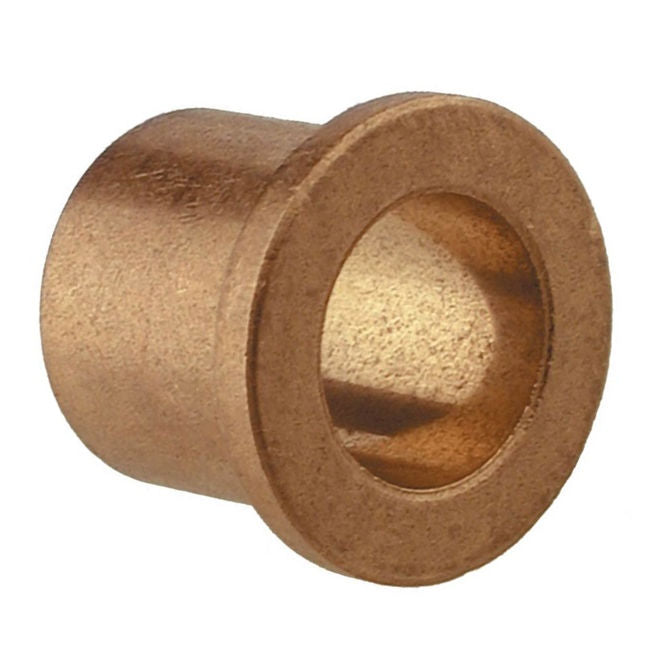

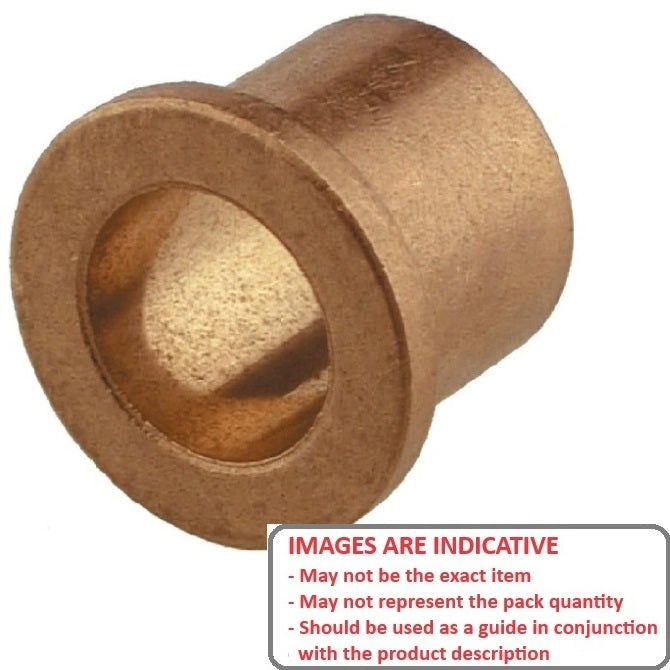

Flanged Bushes - 10x15x16 mm - Bronze SAE 841 Sintered Bush
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleBushes PDF Catalogue
Order 50 or more packs of 20 (1000 pcs)
for $239.19 AUD per 20 pack
10x15x16 mm Flanged Bushes - Bronze SAE 841 Sintered - Sold per pack of 20:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Bronze - Sintered
Product Details

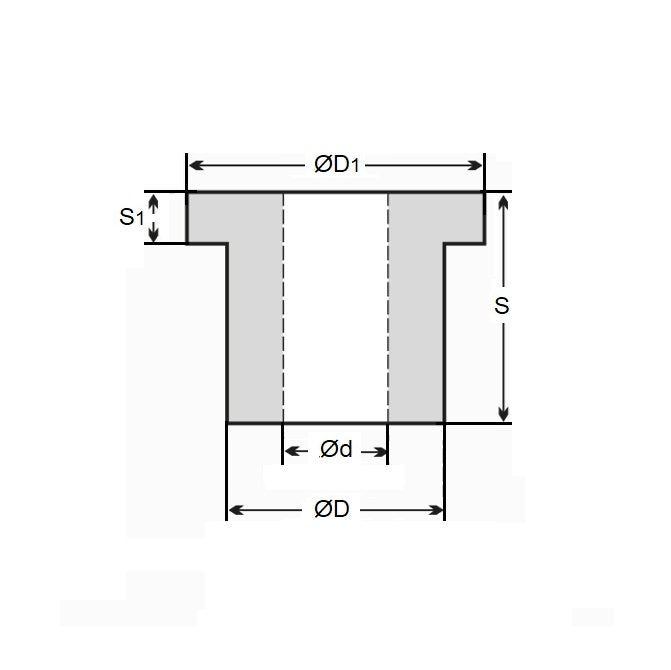

Nominal Inside Diameter (d): 10.000mm+ 0.005 / + 0.030
(10.000mm is 0.394 in.)
Bronze SAE 841 Sintered
- Nominal Inside Diameter (d): 10.000mm
+ 0.005 / + 0.030
(10.000mm is 0.394 in.)
- Nominal Outside Diameter (D): 15.000mm
+ 0.028 / + 0.050
(15.000mm is 0.591 in.)
- Length (s): 16.000mm
+/- 0.127
(16.000mm is 0.63 in.)
- Flange OD (D1): 20.00mm
- Flange Thickness (S1): 2.50mm
- Comments: ISO2795
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Oilube® FM-1015-16
- QFM1116
- QFM11-16
- FM101516
- BF010001500160BS
- BF010001500160BS2025
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF010001500160BS2025LT, BF010001500160
