BF0100-0116-0036-PC2 (Each)
Clip Bushes - 10x11.6x3.6 mm Double Flanged - Plastic Bush
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleBushes PDF Catalogue
Order 50 or more
for $7.25 AUD Each
10x11.6x3.6 mm Clip Bushes - Plastic - Sold per Each:
Base Category: Bushes - Clip
Top Level Category: Bushes - Clip - Double Flanged
Product Details

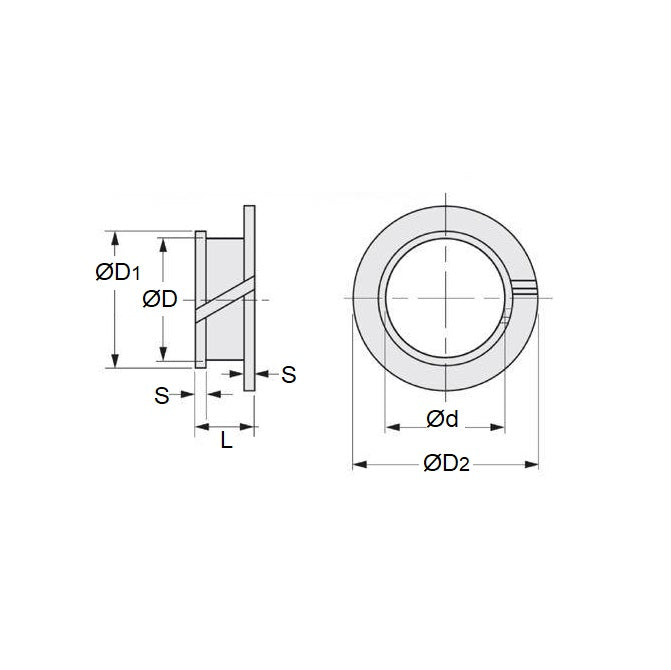

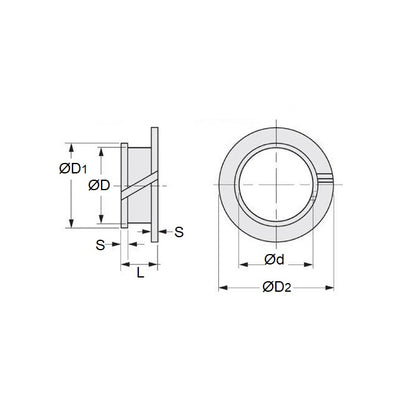

Nominal Inside Diameter (d): 10.000mm(10.000mm is 0.394 in.)
Plastic
- Nominal Inside Diameter (d): 10.000mm
(10.000mm is 0.394 in.)
- Nominal Outside Diameter (D): 11.600mm
(11.600mm is 0.457 in.)
- Overall Length: 3.600mm
(3.600mm is 0.142 in.)
- Large Flange Dia: 15.000mm
- Flange Width (S): 0.8mm
- Small Flange Dia: 12.400mm
- Min Housing Bore: 11.330mm
- Max Housing Bore: 11.600mm
- Min Shaft Size: 9.975mm
- Max Shaft Size: 10.000mm
- Sheet Metal Thickness: 1.45 to 1.92
Brand: MBA
Country of Origin: DE
Product Compliance and Data
Similar to
- ALTPART
- 7817K63
- S99GMCM1012436
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF010001160036PC2, BF010001160036
