WRE-0100-RD (PK-10)

Name: External Retaining Rings - 10x0.8x9.2 mm Round Wire - Carbon Spring Steel Circlip (Sold Per PK-10) - - WRE-0100-RD
Brand: MBA
SKU: WRE0100RD
Price: 8.50 AUD
Availability: InStock

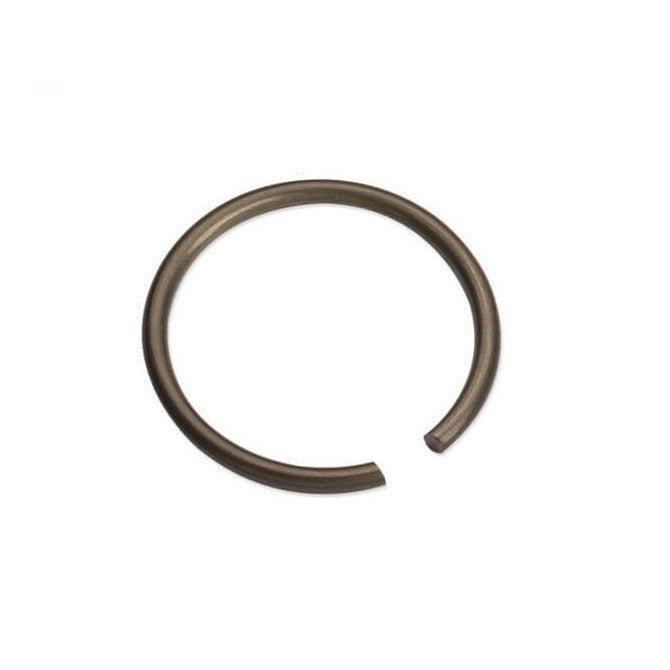

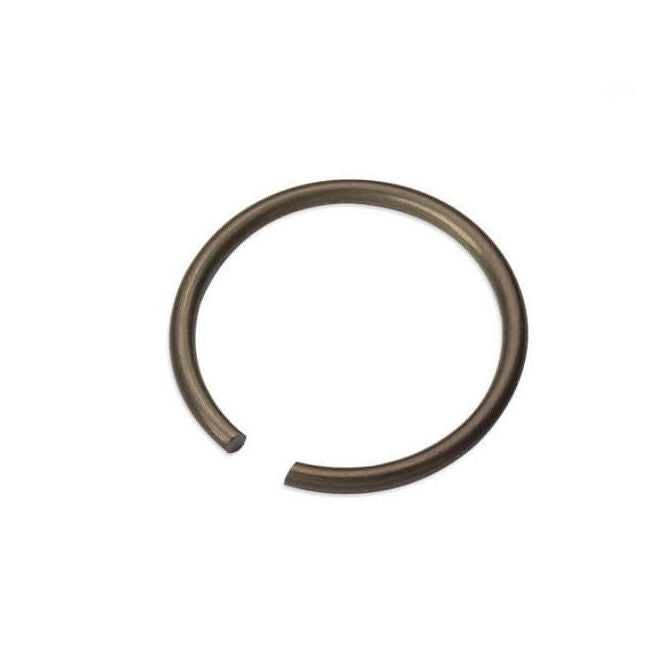

External Retaining Rings - 10x0.8x9.2 mm Round Wire - Carbon Spring Steel Circlip

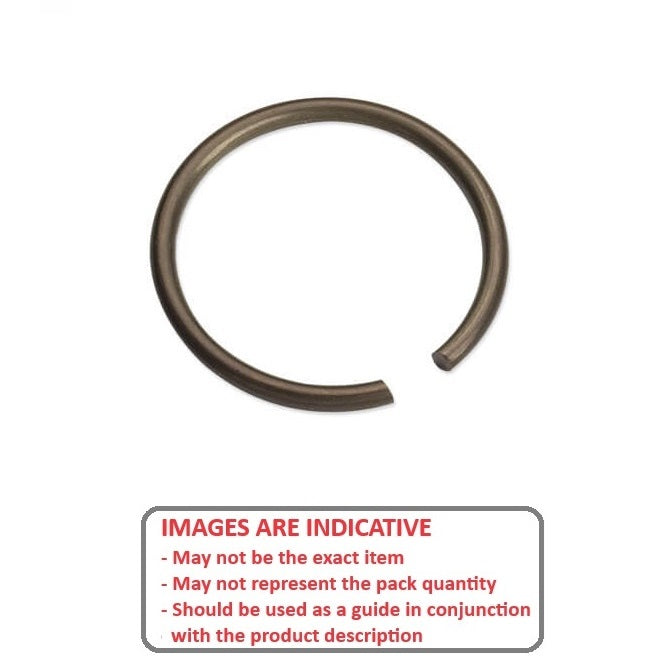

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - External - Round Wire

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue

Price:

$8.50 AUD

Priced, Stocked and Sold Per 10 Units

Excludes GST and overseas Taxes & Duties

Qty: 494 packs (4940 pcs) available now

Order 50 or more packs (500 pcs)
for $7.65 AUD per 10

Product Details

Additional stock available from USA subject to Prior Sale = 3247

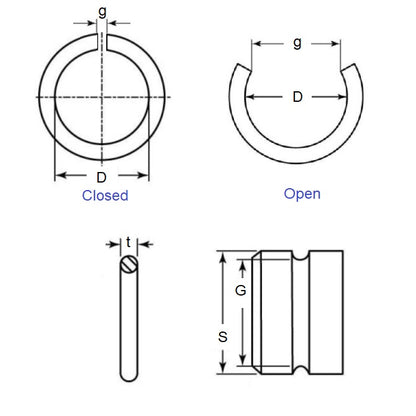

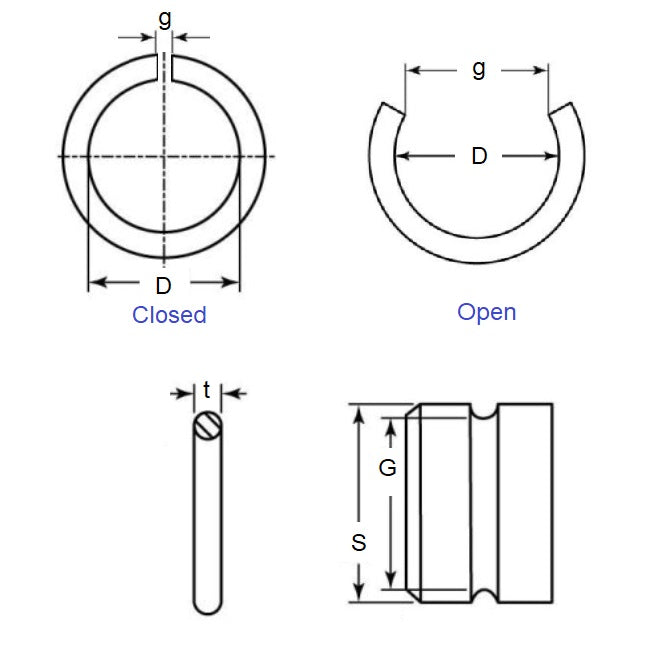

Shaft Diameter (Ds): 10.00mm
_{(10.00mm is 0.394 in.)}

Carbon Spring Steel

Shaft Diameter (Ds): 10.00mm
_{(10.00mm is 0.394 in.)}
Clip Thickness (T): 0.80mm
_{(0.80mm is 0.031 in.)}
Groove Dia. (Dg): 9.2mm
_{+ 0 / - 0.30}
_{(9.2mm is 0.362 in.)}
Approx. Loose Circlip ID (A): 9.1mm
Radial Wall (S) Approx.: 9.2mm
_{+/- 0.05}
Groove Width (W): 1.0mm
_Min.
Free Outside Dia (Dr): 10.7
Section Profile: Round Section

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Huyett® DRP-010
NoCor® DRP-010
DRP010

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
