B-XL-0109-0095-NFB

Inch Timing Belts - 109 tooth - 553.72x9.5 mm 5.080mm Pitch XL - Nylon Covered Neoprene with Fibreglass Cords Belt

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Inch Timing Belts - 109 tooth - 553.72x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Price:
$5.77 AUD
$6.93 AUD $5.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $5.19 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 07, 2025

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Single Sided

Product Details

Number of Teeth: 109

Nylon Covered Neoprene with Fibreglass Cords
  • Number of Teeth: 109
  • Length: 553.72mm
    (553.72mm is 21.8 in.)
  • Width: 9.5mm
    (9.5mm is 0.374 in.)
  • Reinforcement: Fibreglass
  • Appearance: Black
  • Breaking Strength: 1505N
  • Min Temperature (C): -34Deg C
  • Max Temperature (C): 85Deg C

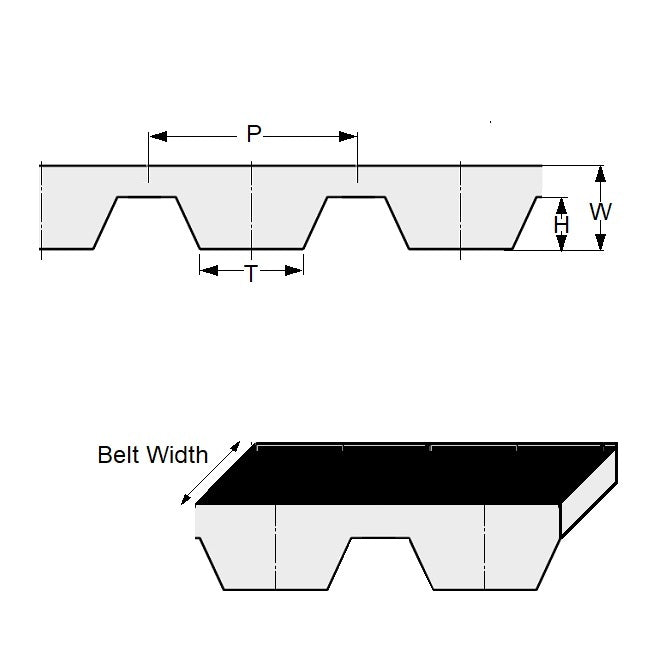

  • Tooth Angle (A): 50°

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Gates 218XL037
  • Gates BXL01090095NF
  • Misumi C-TBN218XL037
  • CTBN218XL037
  • A6R3M109095
  • A6R3109037
  • A6R3-109037

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
