B-L9-0108-0191-NFB (4 Pcs)

Name: B-L9-0108-0191-NFB (4 Pack) - Inch Timing Belts - 108 tooth - 1028.7x19.1 mm 9.525mm Pitch L - Belt
Brand: MBA
SKU: BL901080191NFB
Price: 99.86 AUD
Availability: BackOrder

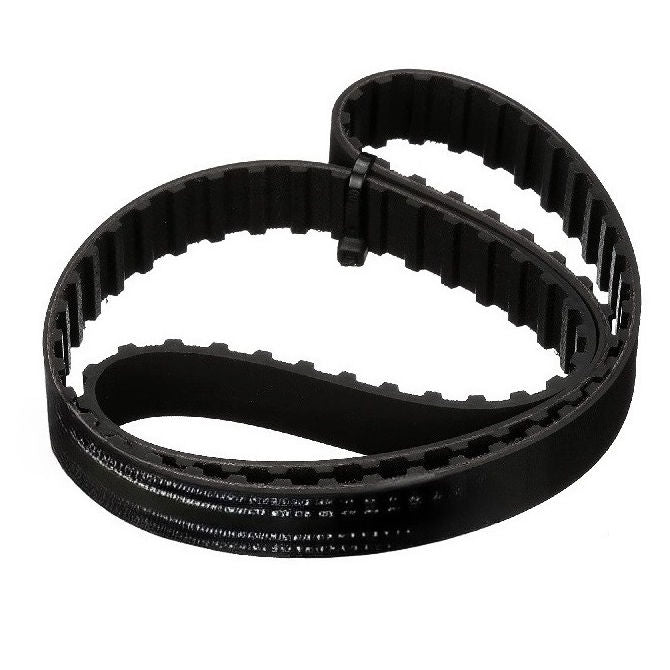

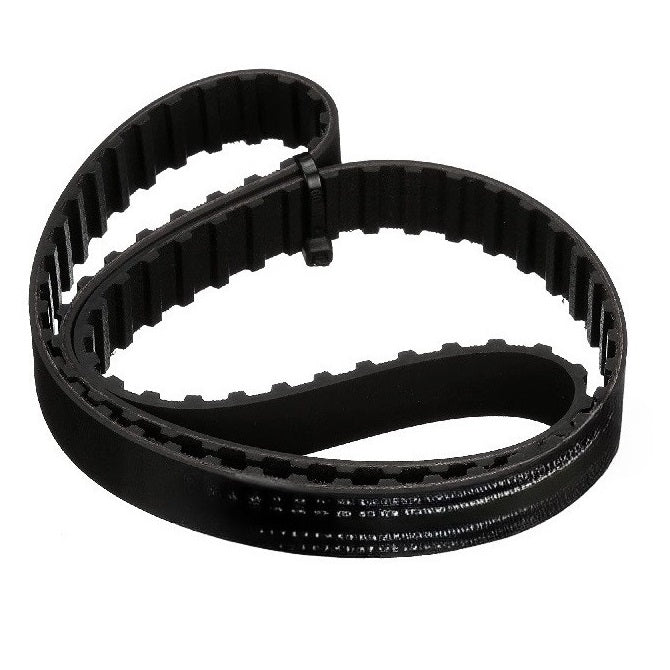

Inch Timing Belts - 108 tooth - 1028.7x19.1 mm 9.525mm Pitch L - Nylon Covered Neoprene with Fibreglass Cords Belt

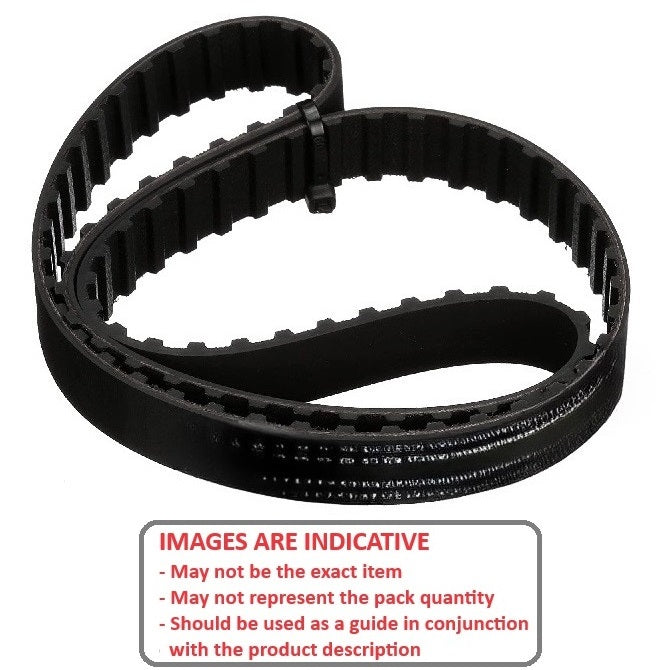

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Belts - Inch Timing - 9.525mm Pitch L - 19.1mm Wide - Single Sided

Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue

Price:

$99.86 AUD

~~$119.84 AUD~~ $99.86 AUD

4 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $89.87 AUD

Product Details

Number of Teeth: 108

Nylon Covered Neoprene with Fibreglass Cords

Number of Teeth: 108
Length: 1028.7mm
_{(1028.7mm is 40.5 in.)}
Width: 19.1mm
_{(19.1mm is 0.752 in.)}
Reinforcement: Fibreglass
Appearance: Black
Breaking Strength: 3334N
Min Temperature (C): -34Deg C
Max Temperature (C): 85Deg C
Tooth Angle (A): 40°

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

Gates 405L075
Gates BL901080190NF
Misumi C-TBN405L075
CTBN405L075
A6R4M108190
A6R4108075
A6R4-108075

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
