RGEAR3.0-100-N (Each)
Rack Gears - 101x30x35 mm Metric - Black Oxide
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleSpur Gears
Order 50 or more
for $45.37 AUD Each
3x1x1-3/8 inch Rack - 101x30x35 mm Rack Gears - Black Oxide - Sold per Each:
Base Category: Gears - Rack
Top Level Category: Gears - Rack - Metric - Module 3 - Steel

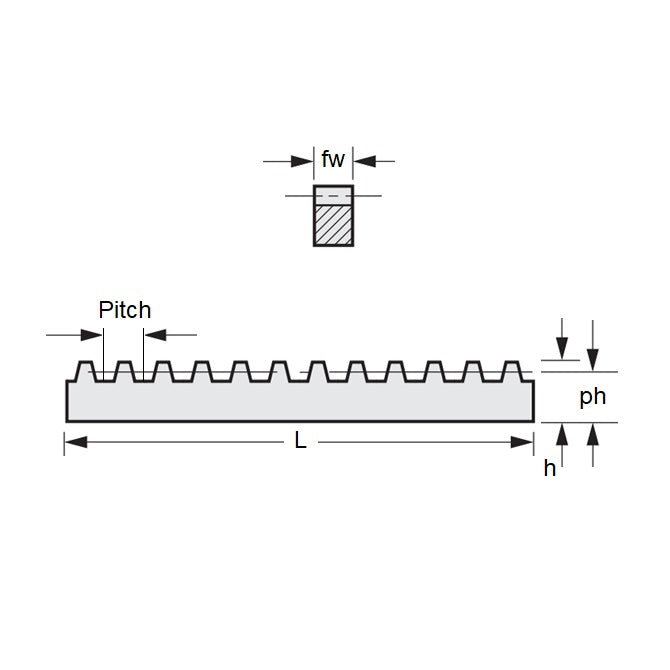

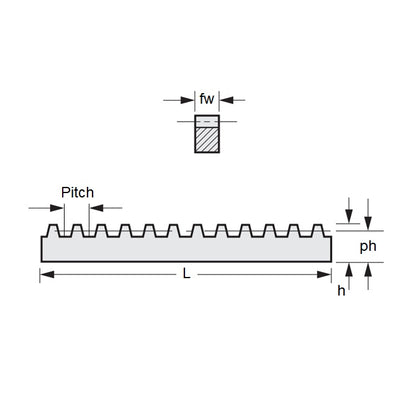

Product Details
Length (L): 101mm(101mm is 3.976 in.)
Black Oxide
- Length (L): 101mm
(101mm is 3.976 in.)
- Face Width (fw): 30.000mm
(30.000mm is 1.181 in.)
- Height (h): 35.000mm
(35.000mm is 1.378 in.)
- Pitch Type: Module 3
- Pressure Angle: 20°
- Precision: ISO CuZn39Pb3
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® RGEAR3.0-100-N
- RGEAR30100N
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RGEAR30100N, RGEAR3.0100
