IN-TP-048C-10-P-S3 (100 Pcs)

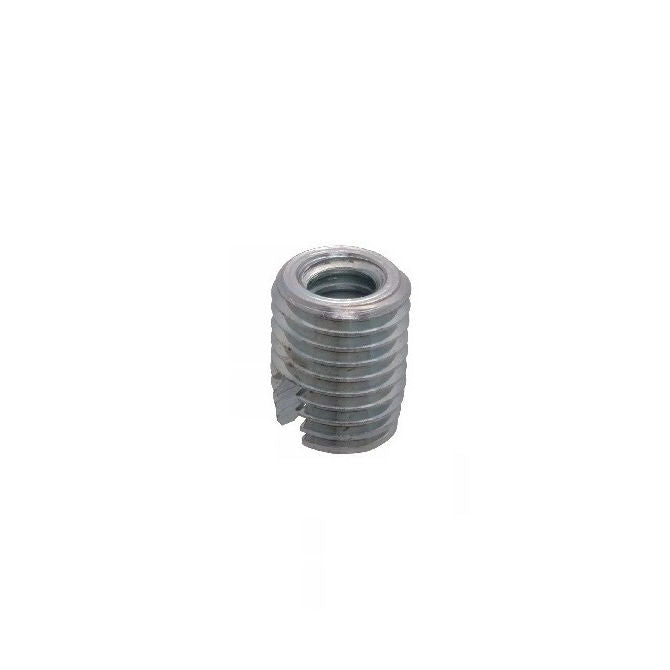

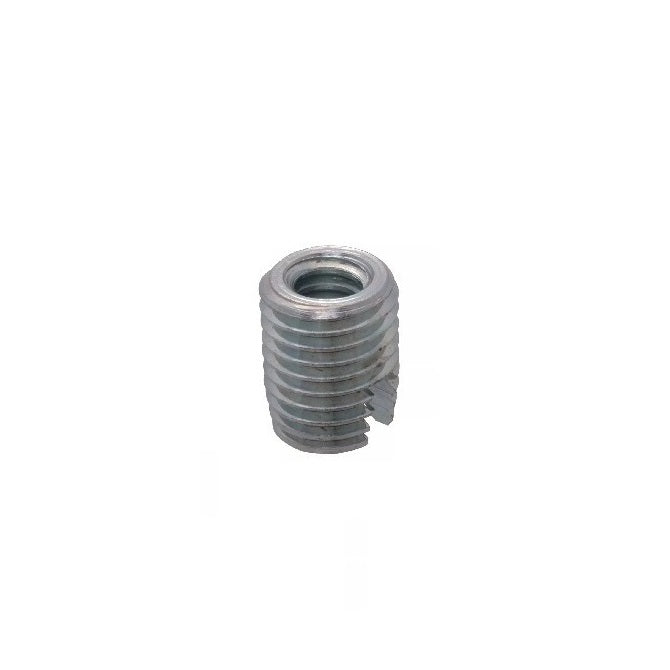

Self Tapping Inserts - 10-24 UNC - 4.76mm - 7.09x10 mm For Plastics - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Insert

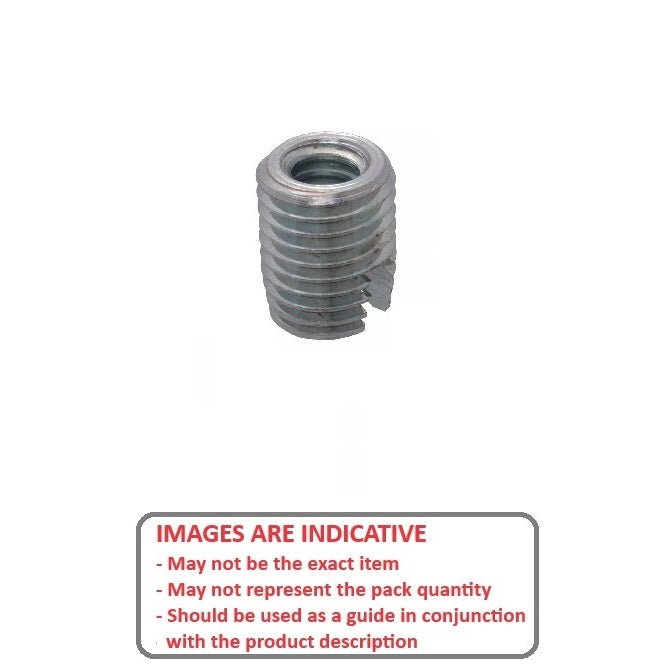

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Self Tapping Inserts - 10-24 UNC - 4.76mm - 7.09x10 mm For Plastics - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Insert
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Price:
$785.14 AUD
$785.14 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $706.63 AUD
Backorder now! Backorders for more than the stock quantity are expected before Oct 22, 2025

Base Category: Inserts - Self Tapping

Top Level Category: Inserts - Self Tapping - For Plastics - Stainless Steel

Product Details

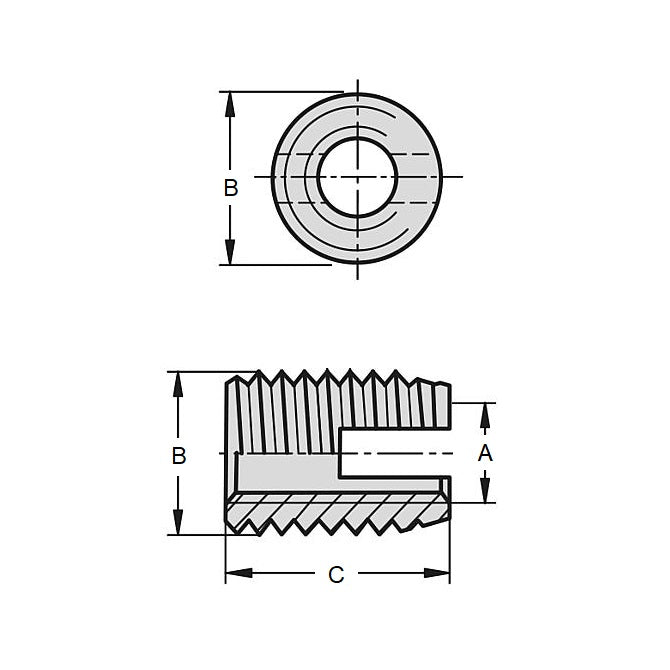

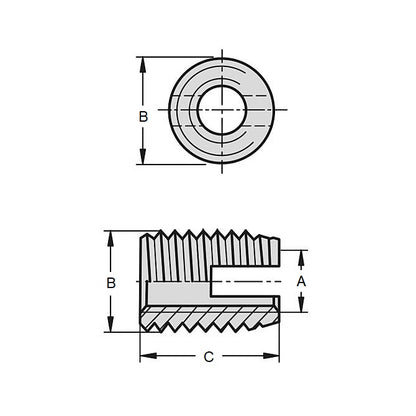

Internal Thread: 10-24 UNC (4.76mm)

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Internal Thread: 10-24 UNC (4.76mm)
  • Rec. Hole Diameter: 7.09mm
    (7.09mm is 0.279 in.)
  • Length (L): 10.0mm
    (10.0mm is 0.394 in.)
  • Outside Diameter (B): 8.00mm
  • Required Hole Depth: 13.00mm
  • Soft Metals Hole Size: 7.29
  • Material to be used in: Plastic, Light Metal Alloys and Hardwood

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • STI120
  • STI-120
  • INTP048C10PS3

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
