W0100-FP-016-0050-CL (100 Pcs)

Name: W0100-FP-016-0050-CL (100 Pack) - Flat Washers - 10x16x0.5 mm Precision Shim - Carbon Spring Steel Self Finish Washer
Brand: MBA
SKU: W0100FP0160050CL
Price: 70.32 AUD
Availability: InStock

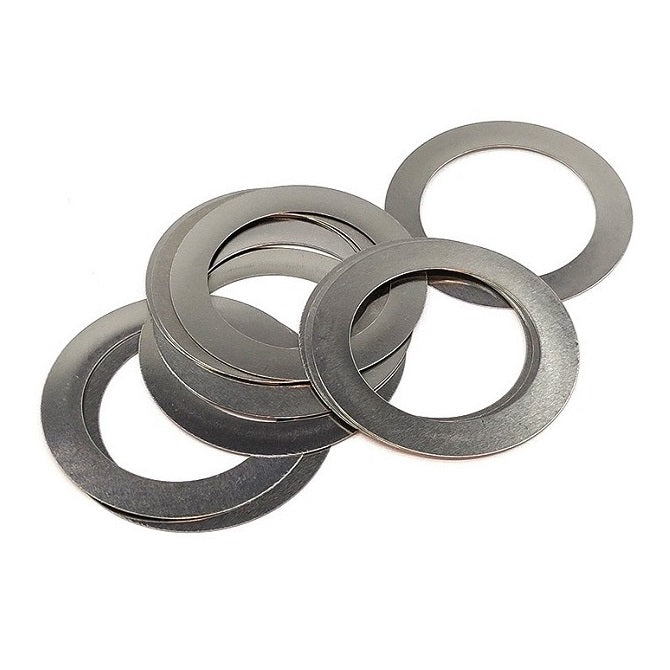

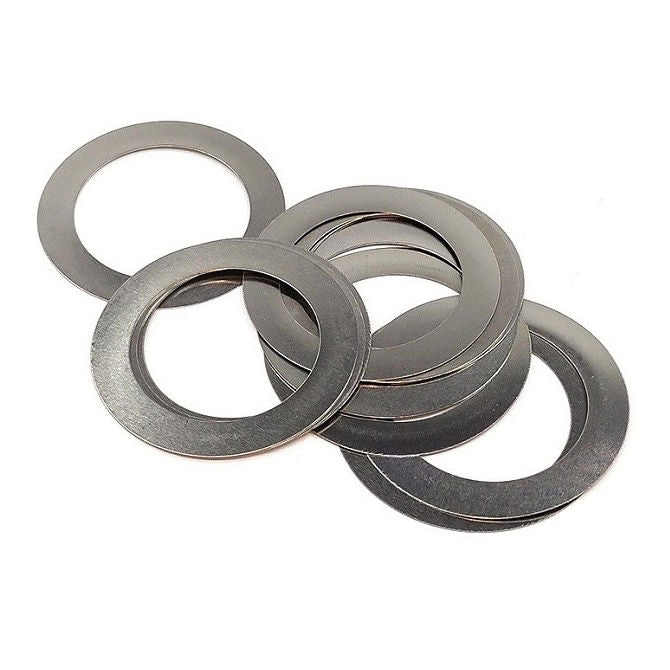

Flat Washers - 10x16x0.5 mm Precision Shim - Carbon Spring Steel Self Finish Washer

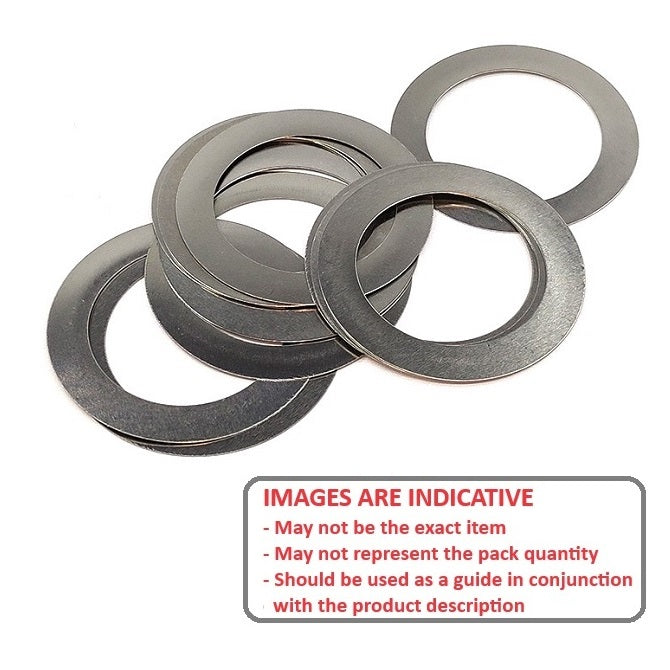

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Washers - Flat - Precision Shim - Carbon Spring Steel

Additional resources:
Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws

Price:

$70.32 AUD

Excludes GST and overseas Taxes & Duties

per 100
Qty: 54 packs (5400 pcs) available now
Order 50 or more packs (5000 pcs) for $63.29 AUD per 100

Product Details

Additional stock available from USA subject to Prior Sale = 928

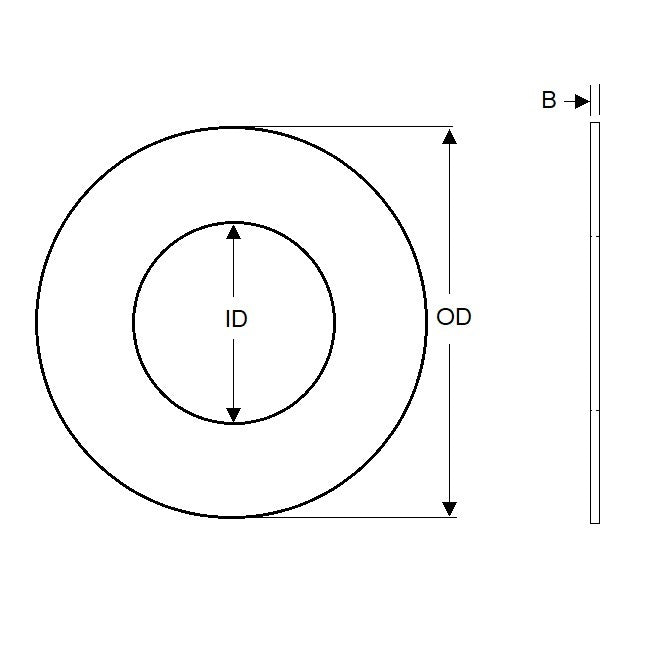

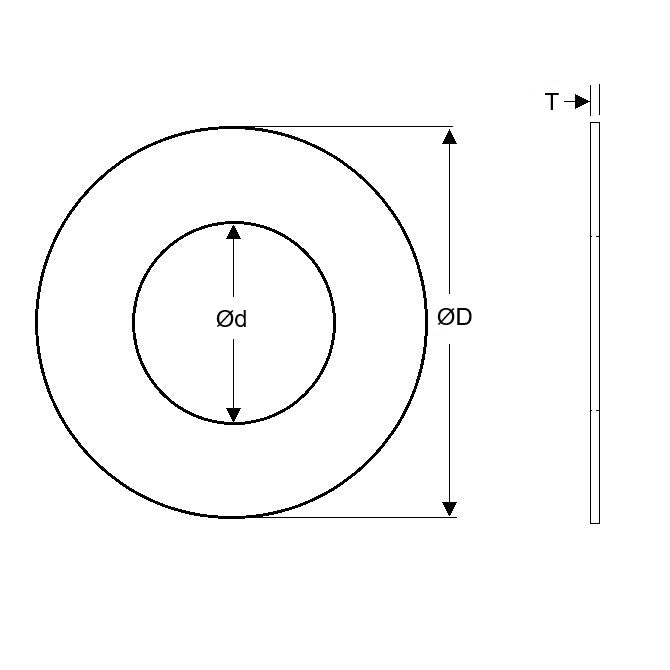

Nominal Inside Diameter (d): 10.000mm
_{+ 0.04 / + 0.20}
_{(10.000mm is 0.394 in.)}

Carbon Spring Steel Self Finish

Nominal Inside Diameter (d): 10.000mm
_{+ 0.04 / + 0.20}
_{(10.000mm is 0.394 in.)}
Nominal Outside Diameter (D): 16.000mm
_{- 0.05 / - 0.23}
_{(16.000mm is 0.63 in.)}
Thickness (T): 0.500mm
_{+ 0.000 / - 0.050}
_{(0.500mm is 0.02 in.)}
Other: Rockwell B 80 Min
Grade: Precision
Min. Actual ID (Ref): 10.04mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
98055A121
Misumi PCIMR10-16-0.5
NoCor PS-010016-0.5
Seeger PS010016050-BLS
Seeger PS10016050-BLS
Seeger PS10X16X0.5
ExaktKey S75540
NoCor S75540
Springmaster S75540
XOSpring S75540
PCIMR101605
P10x16x0.5
CPS10X16X0.5
W0100FP016005CL
PS10016050BLS
PS010016050BLS
A7C8MC1016005

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
