RCL-016-033-Z (50 Pcs)

Single Coil R Clips - 1.6x33 mm - Spring Wire, Oil-Tempered Steel Clip

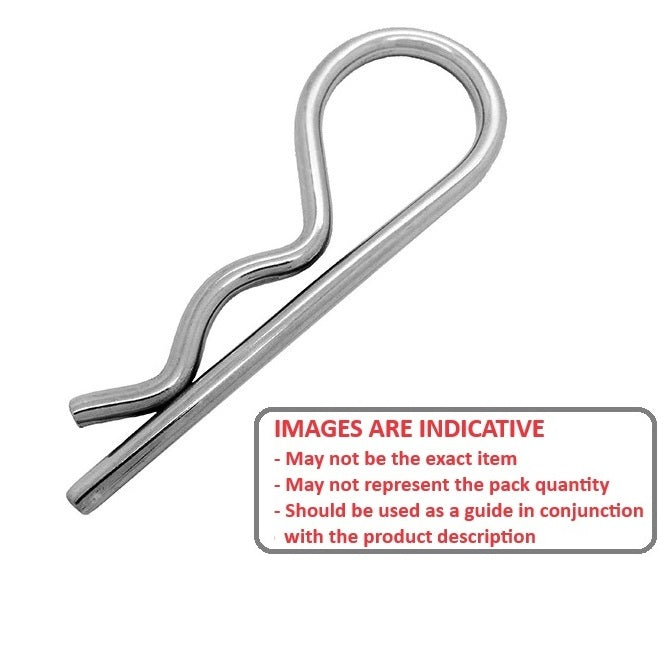

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Split Pins
Price:
Regular price $8.00 AUD
Regular price $15.20 AUD Sale price $8.00 AUD
per 50
Qty: 11 packs (550 pcs) available now
Only 11 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: R Clips - Single Coil

Top Level Category: R Clips - Single Coil - Steel

Product Details

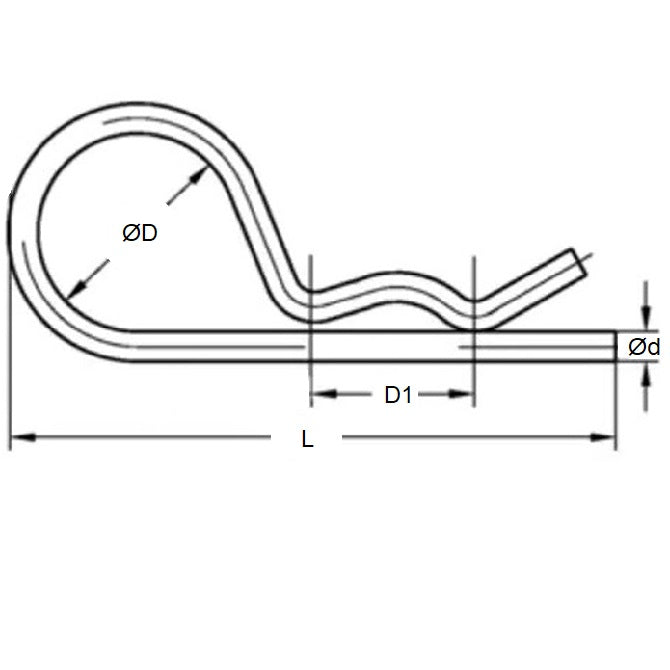

Wire Thickness (d): 1.60mm
(1.60mm is 0.063 in.)

Spring Wire, Oil-Tempered Zinc Plated
  • Length (L): 33.0mm
    (33.0mm is 1.299 in.)
  • Material: Spring Wire, Oil-Tempered
  • Drill Hole Size: 1.98mm
  • Inside Eye Diameter (D): 7.94mm
  • Shaft Size Range: 6.35 to 12.70mm
  • Approx. Bridge Length (D1): 10mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • Hitech MSHPZP16
  • A9Q3422
  • A9Q34-22
  • A 9Q34-22

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
