PSP-015-010-C (PK-500)

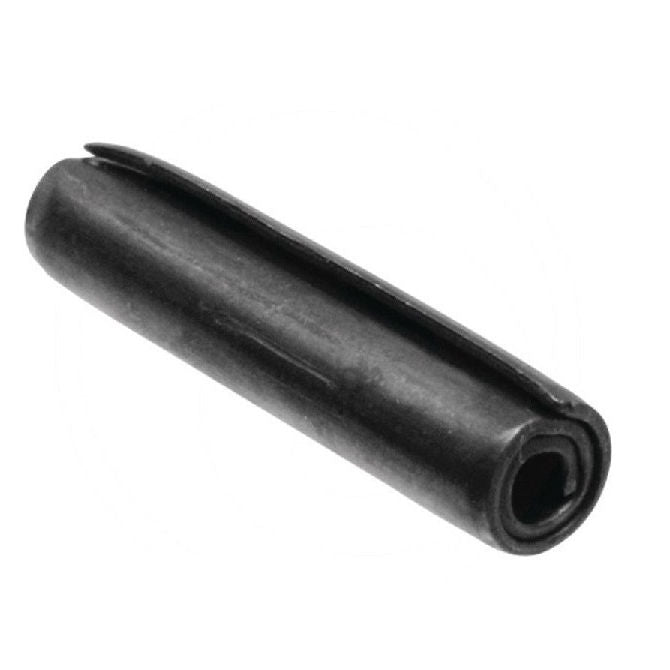

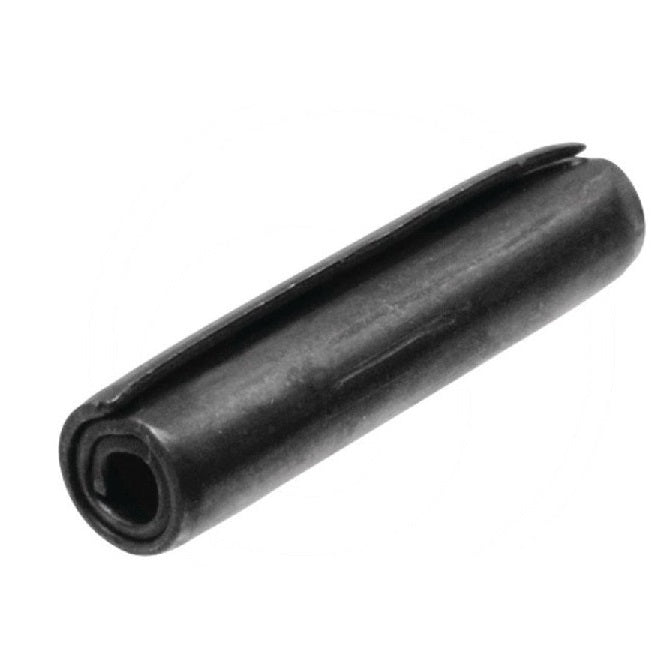

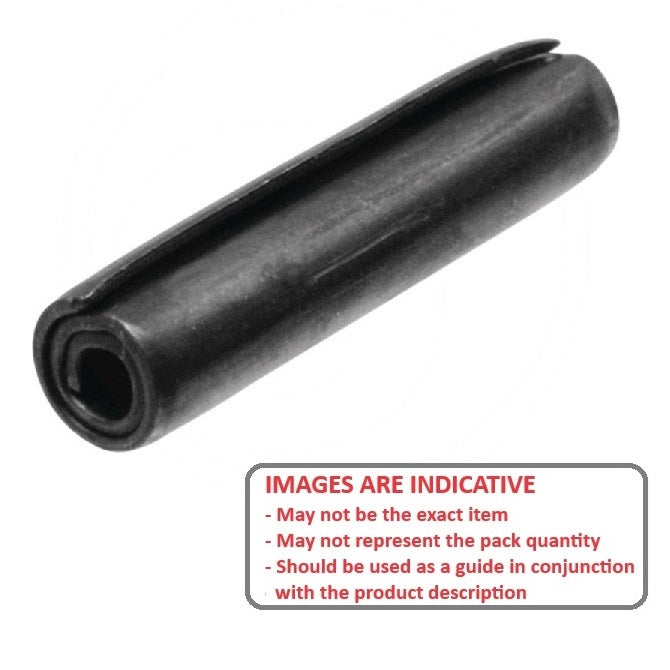

Coiled Pins - 1.5x10 - 1.50 - 1.60 - High Carbon Steel Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins
Order 50 or more packs of 500 (25000 pcs)
for $114.83 AUD per 500 pack
1.5x10 - 1.50 - 1.60 Coiled Pins - High Carbon Steel - Sold per pack of 500:
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Steel - Standard Duty
Product Details
Nominal Hole Diameter: 1.50mm(1.50mm is 0.059 in.)
High Carbon Steel
- Nominal Hole Diameter: 1.50mm
(1.50mm is 0.059 in.)
- Length: 10.00mm
+/- 0.50
(10.00mm is 0.394 in.)
- Drill Size: 1.50 - 1.60mm
(1.50 - 1.60mm is 0.059 in.)
- Loose Diameter: 1.62 - 1.73mm
- ISO: Standard Duty ISO8750 / ASME B18.8.3M
- Hardness: RC 46-53 (HV 420 to 545)
- Double Shear Strength Min.: 1Kn
Brand: MBA
Country of Origin: DE
Product Compliance and Data
Similar to
- Huyett® SPCM-015-010
- SEP1.5-10
- SEP1510
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PSP015010C, PSP015
