RP016-0095-420 (PK-100)

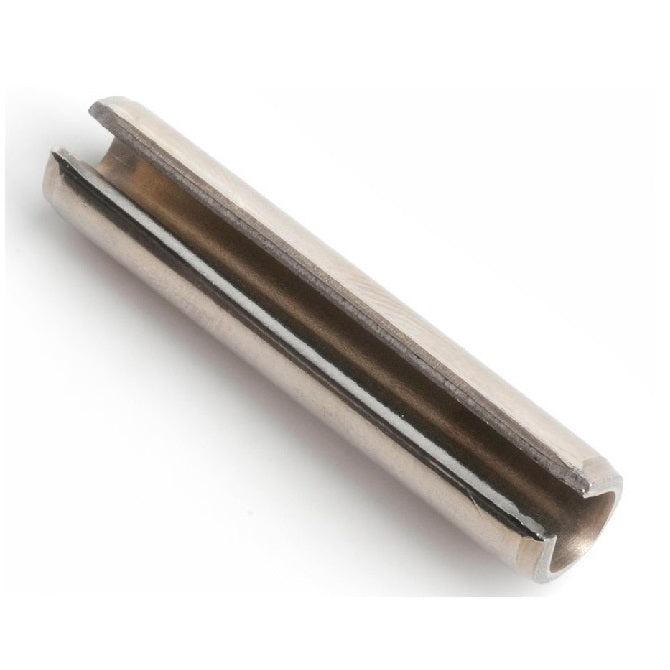

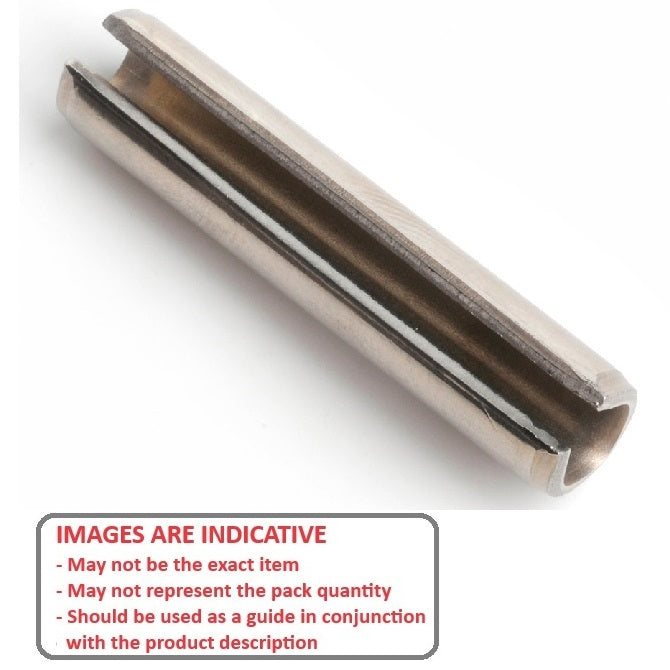

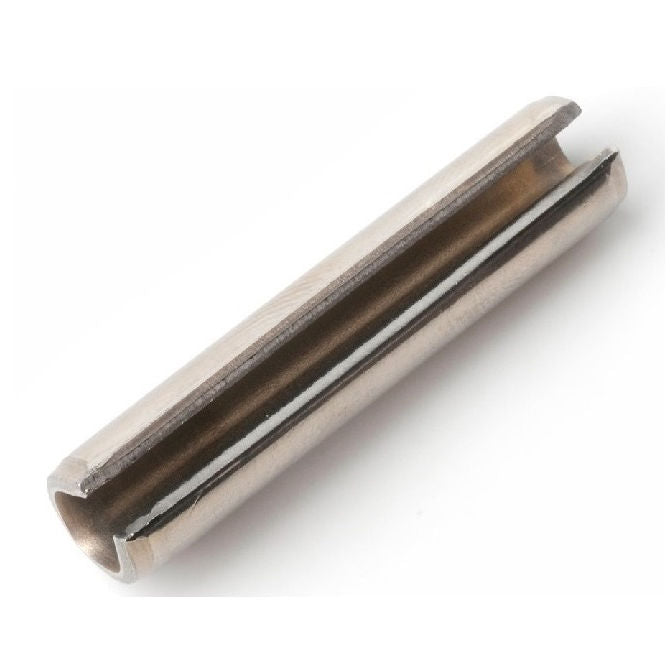

Roll Pins - 1.59x9.53x1.75 mm - Stainless Steel AISI 420C Rc 46-52 Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Order 50 or more packs of 100 (5000 pcs)
for $3.97 AUD per 100 pack
1/16x3/8 inch Pin - 1.59x9.53x1.75 mm Roll Pins - Stainless Steel AISI 420C Rc 46-52 - Sold per pack of 100:
Base Category: Pins - Roll
Top Level Category: Pins - Roll - Stainless Steel - 420 Grade
Product Details
Additional stock available from USA subject to Prior Sale = 39497
Nominal Diameter (D): 1.59mm
(1.59mm is 0.063 in.)
Stainless Steel AISI 420C Rc 46-52
- Nominal Diameter (D): 1.59mm
(1.59mm is 0.063 in.)
- Length (L): 9.53mm
(9.53mm is 0.375 in.)
- Free Diameter: 1.75mm
(1.75mm is 0.069 in.)
- Thickness (S): 0.31mm
- Chamfer Length (cL): 0.18-0.71mm
- Chamfer Diameter (cD): 1.5mm
- Standard: DIN1481 / ISO8752
- Type: Standard
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Brighton Best® 803004
- ALTPART
- 92383A104
- Small Parts DWX-1-6
- Huyett® SPP-062-0375
- NoCor® SPP-062-0375
- NoCor® SPS420-062-0374-420SS
- NoCor® SPSP-062-0374-420SS
- SPS4200620374420SS
- SPSP0620374420SS
- DWX16
- SPP0620375
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RP0160095420, RP0160095
