KW-016-034-077-CH (PK-11)

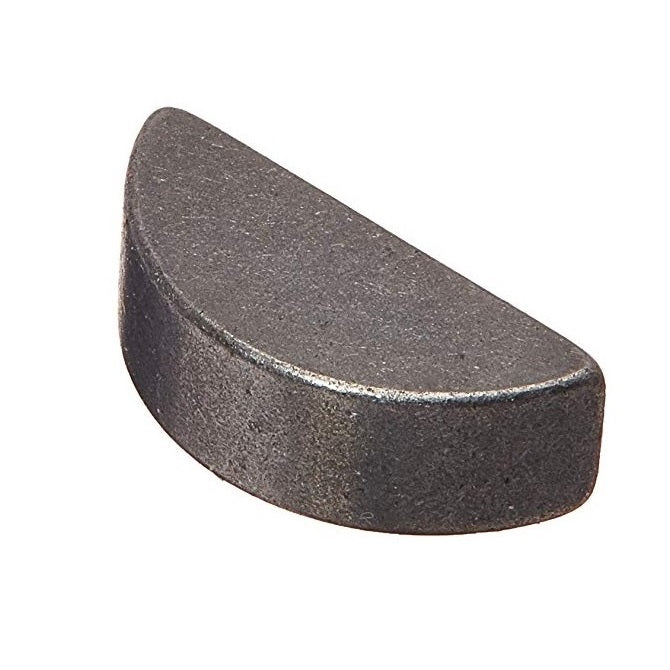

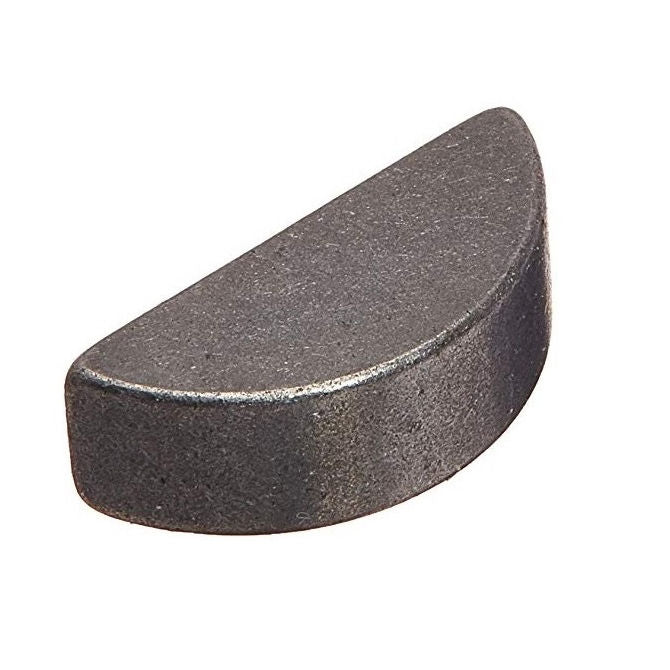

Woodruff Keys - 1.59x3.4x7.65 mm Plain - Carbon Steel C45 Hardened Key
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleKeysteel Catalogue PDF
Base Category: Keys - Woodruff
Top Level Category: Keys - Woodruff - Plain
Product Details
Thickness (S): 1.59mm+/- 0.025
(1.59mm is 0.063 in.)
Carbon Steel C45 Hardened
- Thickness (S): 1.59mm
+/- 0.025
(1.59mm is 0.063 in.)
- Approx. Height (H): 3.4mm
+/- 0.250
(3.4mm is 0.134 in.)
- Approx. Length (L): 7.65mm
(7.65mm is 0.301 in.)
- Basis Diameter (D): 7.94mm
- Finish: Plain
- Hardness: HRC 40-50
Brand: ExaktKey
Country of Origin: US
Product Compliance and Data
Similar to
- ANSI 202.5-H
- NoCor® 2025H
- Key Size 206 Hardened
- NoCor® WKA206
- KW016079CH
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
KW016034077CH, KW016034
